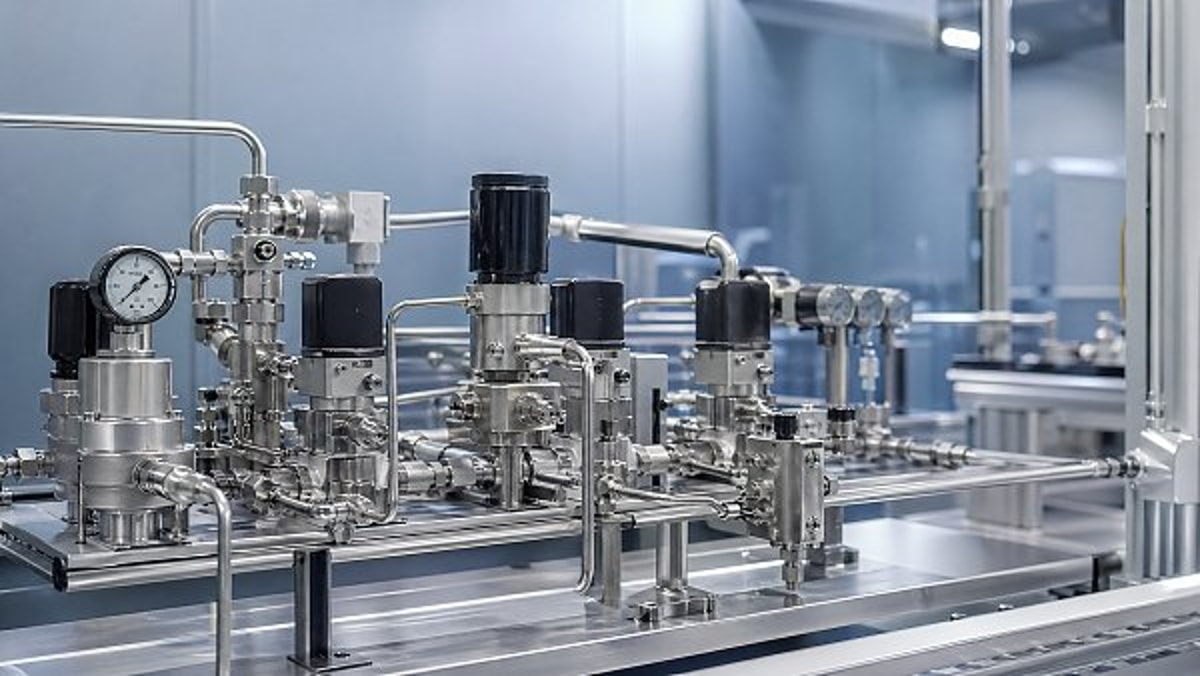

Fluid Control failures often start quietly with valve response lag, long before alarms or shutdowns occur. For after-sales maintenance teams, recognizing these subtle timing deviations is critical to preventing pressure instability, dosing errors, and costly equipment downtime. This article explores how delayed valve action affects system reliability and what practical maintenance signals should never be ignored.

Why maintenance teams should use a checklist first, not intuition

In Fluid Control systems, valve response lag rarely appears as a single dramatic event. It usually develops over weeks or months as a 20 ms to 150 ms delay, a slower closing profile, or an inconsistent repeat cycle under the same command signal. For after-sales personnel, this means troubleshooting should begin with a structured checklist rather than with isolated part replacement.

This matters across general industry environments, from coating tools and pneumatic-fluid skids to dosing cabinets, gas blending units, test benches, and precision manufacturing lines. A lagging valve can distort pressure ramps, overrun dispense volumes, and trigger unstable loop behavior even when transmitters, PLC logic, and upstream supply pressure appear normal. In many sites, maintenance teams lose 4 to 12 hours because the symptom is misread as sensor drift.

A checklist-based method improves first-pass diagnosis because it separates command delay, mechanical delay, media-related delay, and feedback delay. That distinction is especially important when multiple valves share one manifold or when a line includes fine filters, back-pressure regulators, or small internal orifices below 1.0 mm. In those cases, a slow response is often systemic, not just component-specific.

Priority signs that justify immediate inspection

• Cycle time becomes unstable by more than 5% during repeated open-close testing under unchanged load.
• Pressure overshoot or undershoot appears within the first 1 to 3 seconds after valve actuation.
• Dosing deviation increases even though pump calibration or upstream flow settings remain within normal range.
• The operator hears a slower mechanical click, weaker return, or delayed venting sound from one station versus adjacent stations.
• A control loop starts hunting after maintenance, suggesting changed response dynamics rather than a pure electrical fault.

When two or more of these signs appear together, maintenance should move beyond visual inspection. A timed actuation test, pressure trace review, and coil verification can often identify the root pattern in less than 30 minutes. That is faster and more reliable than replacing sensors first and hoping the problem disappears.

Core Fluid Control inspection checklist for valve response lag

The most effective Fluid Control inspection routine follows the signal path from command to media movement. After-sales teams should confirm not only whether the valve opens or closes, but also whether it does so within the expected response window, at the intended stroke behavior, and with repeatable timing over at least 20 to 50 cycles.

The table below can be used as a practical field reference. It is designed for mixed industrial systems where precision, contamination sensitivity, or uptime requirements are higher than standard utility service. The goal is to help teams decide which check comes first and what type of lag each symptom most likely indicates.

This checklist prevents a common maintenance error: treating every delayed response as a valve body failure. In practice, one-third of field cases are linked to control wiring, supply quality, or downstream restriction. If the timing gap changes with load, temperature, or media type, the valve may not be the only variable that needs attention.

Field sequence that saves troubleshooting time

1. Record the command timestamp and compare it with pressure or flow response over at least 10 cycles.
2. Verify power quality at the valve terminal under load, not only at cabinet output.
3. Check inlet pressure stability and look for filter fouling or regulator lag.
4. Inspect the valve internals for contamination, wear, swelling seals, or media residue.
5. Retest after cleaning or replacement and confirm whether repeatability returns within target range.

For systems tied to precision dosing, purge control, or pressure stabilization, even a 50 ms response change can be operationally significant. In lower-speed utility loops, the same delay may be acceptable. The maintenance standard must therefore match the actual application, not a generic open-close function test.

How valve lag shows up differently across applications

Fluid Control behavior is application dependent. The same delayed valve can create very different risks in a chemical dosing skid, a pneumatic motion circuit, a gas delivery branch, or a metrology-support utility line. After-sales teams should avoid one-size-fits-all thresholds and instead check the operating context first.

In high-purity or precision environments, response lag often causes quality drift before it causes a machine alarm. A process may stay “running” while product consistency declines over 2 to 3 shifts. In utility service, the same lag may mainly affect throughput or compressed-air efficiency. This difference changes the urgency of intervention and the depth of root-cause analysis.

The following comparison helps maintenance teams prioritize checks by operating scenario. It is especially useful when service teams support multiple equipment categories under one contract.

This comparison is important because maintenance effort should align with business impact. On a high-precision line, one delayed valve can affect scrap rate, rework hours, and calibration trust. On a utility line, the same issue may be managed through planned service within 7 to 14 days if safety and compliance are not affected.

Scenario-specific judgment points

When the process is timing-sensitive

Use repeatability as the main indicator. If the valve delay varies cycle to cycle, the system becomes harder to tune than if it is consistently slow. In many precision loops, variation above 10 ms to 30 ms between cycles is more damaging than a fixed delay that can be compensated in software.

When the media is contamination-sensitive

Focus on cleanliness and compatibility. A residue layer or seal swelling can slow motion gradually while also raising contamination risk. In these cases, replacing the valve without reviewing filtration, purge practice, and media compatibility often leads to repeat failure within one maintenance interval.

When the site has mixed equipment ages

Benchmark the suspect line against a known-good line. Comparing actuation timing between old and newer machines can reveal whether the lag is age-related, installation-related, or linked to a specific maintenance history. This is especially useful when no original response baseline was documented during commissioning.

Commonly missed causes that turn minor lag into major failure

Maintenance teams often catch the obvious causes of Fluid Control problems, such as dirt, loose wiring, or failed coils. What gets missed are the slow-developing factors that make response lag intermittent. Intermittent lag is dangerous because it passes a basic function test, then reappears under heat, pressure fluctuation, or continuous cycling.

One common blind spot is temperature influence. Coil resistance changes with heat, and elastomer behavior changes with process temperature. A valve that responds normally during the first 5 cycles may slow down after 30 minutes of operation. Another missed factor is exhaust or downstream restriction, where the valve actuates correctly but the system pressure does not recover or vent at the required speed.

A third issue is maintenance substitution. Replacing a valve with a unit that matches port size but not response profile, seal material, or pilot requirement can create a new lag problem immediately. This is common in general industrial service where purchasing focuses on fit and delivery time, while process dynamics receive less attention.

Risk reminders that deserve routine review

• A stable electrical signal does not guarantee stable media response; trapped pressure and restriction can delay actual process change.
• A valve may pass leak testing yet still fail dynamic response targets because friction and contamination affect motion before sealing performance collapses.
• Filter condition upstream should be reviewed by service hours, not only by visible pressure drop, especially in fine-control applications.
• Soft-seat materials may behave differently after solvent exposure, sterilization cycles, or aggressive cleaning agents.
• If multiple valves on one manifold show similar lag, investigate common supply and control architecture before replacing individual units.

Simple judgment standard for escalation

Escalate from routine maintenance to engineering review when response lag affects product quality, sequence safety, or documented process capability. As a practical rule, if the measured actuation delay shifts beyond the process allowance for 3 consecutive tests, or if the issue returns within one service cycle after cleaning, deeper analysis is justified. That analysis may include valve sizing review, media compatibility check, and control-loop interaction assessment.

Execution plan: what after-sales teams should document and do next

A good Fluid Control response-lag investigation does not end with repair. It should produce service records that improve the next intervention. For after-sales teams, the most valuable outputs are timing data, operating conditions, replaced parts, and observed contamination patterns. Without these records, the same line may return to service with the same hidden weakness.

If the site supports high-value manufacturing or regulated production, document command delay, measured actuation delay, inlet pressure, differential pressure, media type, ambient temperature, and cycle count at failure. Even a small dataset from 3 to 5 incidents can reveal trends such as temperature sensitivity, maintenance interval mismatch, or recurring filtration problems.

For preventive action, align service tasks with application criticality. Critical timing loops may need verification every 1 to 3 months, while general utility circuits can often be checked every 6 to 12 months. The right interval depends on cycle frequency, contamination load, media aggressiveness, and the cost of an unstable process event.

Recommended service documentation checklist

1. Valve function and application role: on-off isolation, dosing, purge, vent, sequencing, or pressure control support.
2. Expected response window and actual measured delay under operating conditions.
3. Media characteristics, cleanliness requirements, and known compatibility concerns.
4. Supply pressure range, downstream restriction status, and filter maintenance history.
5. Whether replacement parts match not only connection size but also dynamic performance requirements.

When to replace versus when to re-engineer

Replace the valve when wear, contamination damage, or actuator degradation is clearly isolated. Re-engineer the surrounding Fluid Control arrangement when repeated lag is linked to poor sizing, unstable pressure supply, incompatible seals, or process conditions outside the original duty envelope. If the same failure mode appears two or more times in a year, replacement alone is rarely the complete answer.
