As substrate sizes expand in advanced manufacturing, Thin-Film Deposition uniformity becomes a decisive factor in yield, performance, and compliance. For technical evaluators, even minor thickness variation can signal deeper issues in chamber design, gas flow control, thermal management, or process scalability. This article examines the core causes of uniformity problems across larger substrates and highlights the engineering benchmarks that matter most in high-precision industrial selection.

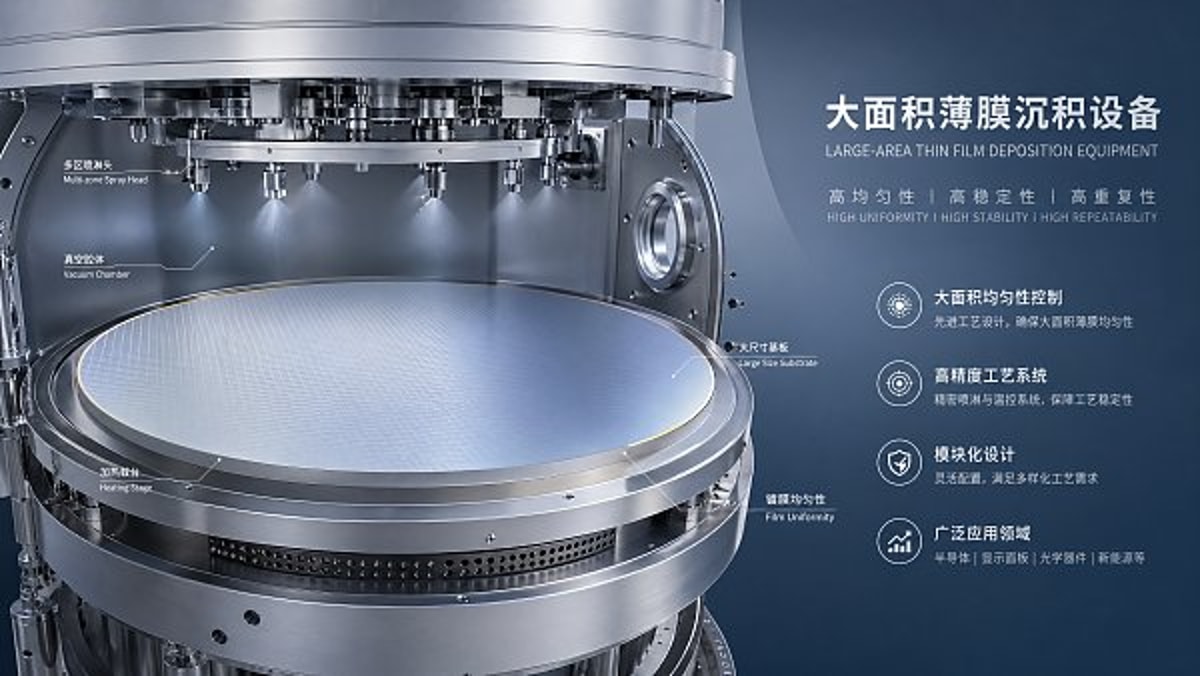

Why does Thin-Film Deposition uniformity become harder as substrates get larger?

Thin-Film Deposition on small wafers, coupons, or laboratory samples can appear stable even when the underlying process window is narrow. Once the substrate expands from 100 mm or 200 mm formats to 300 mm wafers, large-area glass, metal panels, or custom precision parts, the same process often reveals center-to-edge thickness drift, non-uniform refractive index, or local defects. For technical evaluators, this is not simply a scale issue; it is a systems engineering issue.

Larger substrates magnify every non-ideal condition inside the chamber. Gas residence time can vary across longer flow paths. Plasma density can fall off at the perimeter. Thermal gradients of even 2°C to 5°C can translate into measurable deposition rate differences, especially in ALD, PECVD, sputtering, or evaporation processes where precursor reaction kinetics are temperature-sensitive. A thickness non-uniformity of ±1% may be acceptable in one optical coating application, while the same deviation may be unacceptable in semiconductor barrier, dielectric, or conductive layers.

The challenge also grows because larger substrates are rarely evaluated by average thickness alone. Procurement and technical assessment teams increasingly ask for within-wafer uniformity, wafer-to-wafer repeatability, lot stability over 25 to 50 runs, particle performance, and edge exclusion behavior. In high-precision sectors, a film can meet nominal thickness and still fail downstream due to local stress concentration, step coverage variation, or poor interface quality.

What physical factors usually drive the problem?

• Non-uniform gas distribution caused by injector geometry, showerhead design, or exhausted flow imbalance.
• Temperature non-uniformity across the platen, susceptor, or substrate carrier, often visible above 200°C process conditions.
• Plasma density variation, particularly near chamber edges or over enlarged active deposition zones.
• Target erosion profile effects in sputtering systems, which can shift deposition distribution over time.
• Mechanical alignment and rotation errors, including substrate bow, chuck flatness, and runout in dynamic systems.

From an evaluation standpoint, Thin-Film Deposition uniformity should be treated as a coupled behavior between equipment architecture, process chemistry, substrate properties, and maintenance condition. This is why large-substrate capability cannot be validated by brochure-level throughput claims alone. Buyers in aerospace, electronics, medical devices, and precision optics generally need evidence from patterned substrates, edge mapping, and process capability trends rather than a single best-case data point.

A quick comparison of scaling effects

The table below summarizes why the same Thin-Film Deposition process often behaves differently when transferred from smaller to larger substrates.

For technical evaluators, the key takeaway is simple: larger-area Thin-Film Deposition is not a linear scale-up. It is a re-qualification problem that affects process stability, metrology strategy, and total cost of ownership.

Which uniformity problems matter most in real industrial applications?

Not every variation carries the same business risk. In some sectors, a 3% thickness gradient may only alter appearance; in others, it can compromise insulation resistance, barrier performance, optical transmission, adhesion, or fatigue life. Technical evaluation teams should therefore match Thin-Film Deposition uniformity metrics to the actual function of the layer rather than relying on generic “good uniformity” claims.

For semiconductor and advanced electronics, the main concerns are usually thickness distribution, resistivity consistency, step coverage, and particle-sensitive edge conditions. In optical systems, evaluators often focus on wavelength shift, refractive index consistency, and local coating stack error across apertures that may exceed 300 mm or larger panel dimensions. In medical and aerospace components, the priority may shift toward adhesion stability, pinhole control, corrosion resistance, and coating stress balance over complex geometries.

A frequent mistake is evaluating uniformity only on witness coupons. That approach can miss shape-dependent effects, substrate warpage, fixturing shadowing, and local process depletion. When the application demands repeatable output over 12-month production planning cycles, the relevant question is whether the supplier can hold a stable deposition envelope over changing maintenance intervals, target wear stages, and precursor lot variations.

How do application priorities differ?

The matrix below helps technical evaluators connect Thin-Film Deposition uniformity problems with the most common industrial consequences.

This application-based view is especially important in cross-industry sourcing. A supplier optimized for decorative or low-criticality coatings may not be suitable for tight-tolerance Thin-Film Deposition used in metrology components, MEMS packaging, high-purity gas interfaces, or regulated medical assemblies.

How should technical evaluators diagnose the root cause instead of treating the symptom?

When a large substrate shows poor Thin-Film Deposition uniformity, the wrong response is to jump straight to process tuning. Many suppliers attempt to compensate with pressure changes, power shifts, or longer cycle times before isolating whether the issue comes from hardware asymmetry, chemistry delivery, thermal control, or metrology error. A disciplined diagnosis sequence reduces rework and prevents false confidence.

A practical first step is to separate static from dynamic non-uniformity. Static non-uniformity tends to repeat in the same spatial pattern, such as a persistent edge drop, a center hot spot, or a radial ring. Dynamic non-uniformity changes over time and may track target wear, chamber contamination, precursor depletion, or maintenance cycles. For instance, a system that begins at ±2% thickness uniformity and drifts to ±5% after 300 to 500 process hours may indicate consumable or chamber conditioning issues rather than a pure recipe problem.

Technical evaluators should also challenge the measurement method. Different metrology approaches can yield different conclusions, especially when sampling density is low. A 5-point thickness check may overlook edge roll-off that a 49-point or full-scan map immediately reveals. In high-precision procurement, the value lies not only in the reported uniformity figure but in the sampling plan, edge exclusion definition, and correlation between offline and inline measurements.

What is a useful root-cause checklist?

1. Verify substrate handling: flatness, clamping force, rotation stability, and thermal contact consistency.
2. Review gas delivery: mass flow control range, manifold symmetry, showerhead cleanliness, and precursor saturation behavior.
3. Check thermal control: platen zoning, heater response, backside gas if used, and temperature mapping under load.
4. Assess plasma or source condition: target erosion, electrode balance, RF matching stability, and deposition zone geometry.
5. Confirm metrology discipline: number of measurement points, edge exclusion width, repeatability, and calibration interval.

Symptom-to-cause guide for faster screening

Before a sourcing decision or line qualification, the following symptom table can help narrow the most probable causes and the right follow-up questions.

This symptom-based approach is valuable because it supports faster supplier comparison. Instead of accepting a generic “uniformity optimized” statement, evaluators can ask for evidence tied to the actual failure mode that matters in production.

What should buyers compare when selecting Thin-Film Deposition equipment or outsourced coating partners?

For larger substrates, Thin-Film Deposition selection should be based on capability depth rather than process labels alone. Two suppliers may both offer ALD, PVD, PECVD, or hybrid coating services, yet their large-area uniformity performance can differ significantly due to chamber scaling philosophy, automation discipline, and metrology integration. The best comparison framework combines performance metrics, engineering transparency, and practical production readiness.

A strong evaluation package typically includes full-area thickness maps, process repeatability data over multiple lots, maintenance-related drift behavior, and stated edge exclusion conditions. It should also clarify whether the uniformity result was achieved on a bare test substrate, a patterned part, or a production-representative geometry. In many industrial procurements, this distinction changes the decision more than the nominal deposition technology itself.

Another overlooked criterion is scale transition support. If your roadmap moves from pilot runs of 10 to 20 substrates per week toward mid-volume or high-volume deployment, the partner should explain how uniformity is preserved under higher duty cycles, longer campaign length, and stricter uptime expectations. A process that works for engineering samples may struggle when throughput, contamination control, and preventive maintenance intervals are tightened.

Which supplier questions are worth asking early?

• What uniformity metric is used: range, standard deviation, or percentage relative to mean thickness?
• What substrate size, geometry, and edge exclusion band were used to generate the reported data?
• How many runs or lots support the result: 3 runs, 10 runs, or a longer trend window?
• What is the requalification cycle after maintenance, target replacement, or chamber cleaning?
• Can the supplier support design-of-experiments, sample validation, and standards-aligned reporting?

Suggested evaluation dimensions

The table below is useful for technical assessment teams that need a structured supplier review process for Thin-Film Deposition across larger substrates.

For organizations operating under strict quality, export control, or regulated manufacturing frameworks, this structured comparison is often more valuable than headline throughput or lowest initial quote. Thin-Film Deposition that fails uniformity expectations late in qualification can cost far more than a slightly higher but better-documented process route.

What common mistakes lead to poor decisions about Thin-Film Deposition uniformity?

One common mistake is assuming that a low average deviation automatically means low risk. A film can show acceptable average thickness while still exhibiting localized weak zones, stress pockets, or optical drift near the perimeter. For technical evaluators, map shape matters as much as the top-line percentage. Repeating the same average across 20 runs does not help if the edge profile remains systematically unstable.

Another mistake is comparing data from different measurement definitions as if they were identical. A supplier reporting ±2% over the central 90% of area is not directly comparable to one reporting full-area variation including the outer 5 mm edge band. This is especially relevant when evaluating Thin-Film Deposition for larger substrates, where edge behavior can heavily influence downstream lithography, sealing, bonding, or optical aperture acceptance.

A third mistake is neglecting upstream and downstream interactions. Uniformity problems are not always generated inside the deposition chamber alone. Surface preparation, roughness, contamination, substrate bow, and even post-deposition annealing can alter the final result. In integrated high-precision manufacturing, the correct question is not “Is the coater good?” but “Does the full coating flow preserve functional uniformity under actual product conditions?”

Which warning signs should trigger deeper review?

• Uniformity data is shown for one run only, without any repeatability or maintenance context.
• Results are based solely on witness coupons rather than full-size or representative substrates.
• No explanation is given for edge exclusion, metrology point density, or measurement uncertainty.
• The supplier cannot explain how performance changes after 100, 300, or 500 process hours.
• Claims focus on equipment type but avoid discussion of chamber design, thermal zoning, or gas delivery architecture.

These warning signs do not automatically disqualify a supplier, but they do indicate that more structured technical review is needed. In many cases, requesting a pilot trial with predefined mapping criteria and acceptance thresholds is the most efficient next step.

If a project is moving forward, what should be confirmed before sampling, qualification, or procurement?

Before launching a sampling program, technical evaluators should lock down the true acceptance framework for Thin-Film Deposition uniformity. That includes target thickness, allowable variation band, edge exclusion width, measurement method, substrate condition, and the number of samples required for a meaningful decision. In many B2B projects, confusion begins because engineering, quality, and procurement use different definitions of “acceptable uniformity.”

It is also advisable to define the commercial and operational checkpoints early. Typical items include sample lead time of 2 to 6 weeks, expected documentation package, change control process after parameter updates, and the route for handling custom fixtures or non-standard substrate sizes. Where standards alignment matters, buyers may ask for reporting formats that support internal review against ISO, SEMI, or related industry procedures without requiring the supplier to make unsupported certification claims.

Finally, qualification should connect deposition metrics to product performance. A high-quality Thin-Film Deposition trial should not end at thickness mapping. It should also address the functional outputs that matter to the program, whether that means sheet resistance consistency, optical transmission stability, adhesion after thermal cycling, or barrier integrity after environmental exposure. This reduces the chance of approving a process that looks good in metrology but underperforms in service.

What should be aligned in the first technical discussion?

1. Substrate size, material, geometry complexity, and any flatness or bow limitations.
2. Film function, target thickness range, and critical uniformity threshold such as ±1%, ±2%, or application-specific limits.
3. Required data package, including mapping density, repeatability runs, and traceable process notes.
4. Pilot quantity, delivery timeline, and rework or iteration expectations.
5. Commercial scope, including quotation basis, custom tooling needs, and long-term scale-up considerations.
