In micro-joining, micro-welding spot precision determines whether a process delivers stable quality or costly variation. For operators, repeatability is rarely controlled by one factor alone—it is shaped by energy input, material consistency, electrode condition, alignment, and real-time process control. Understanding which variable matters most is the first step toward tighter tolerances, fewer defects, and more reliable production.

In practical production, the answer is rarely a single setting on the machine. Repeatability in micro-welding depends on how consistently the full process window is held from shift to shift, batch to batch, and part to part. For operators working with thin foils, fine wires, miniature terminals, medical components, sensor assemblies, or electronics packaging, even a 2% to 5% variation in delivered energy can change nugget size, discoloration, splash, or bond strength.

From a B2B engineering perspective, the most important factor is usually controlled energy delivery at the actual weld interface. However, that energy only remains repeatable when materials, electrode geometry, fixturing, positioning, and inspection are managed as one system. That is why teams focused on micro-welding spot precision increasingly combine process discipline with metrology, motion control, and traceable parameter management.

Why Repeatability Fails in Micro-Welding

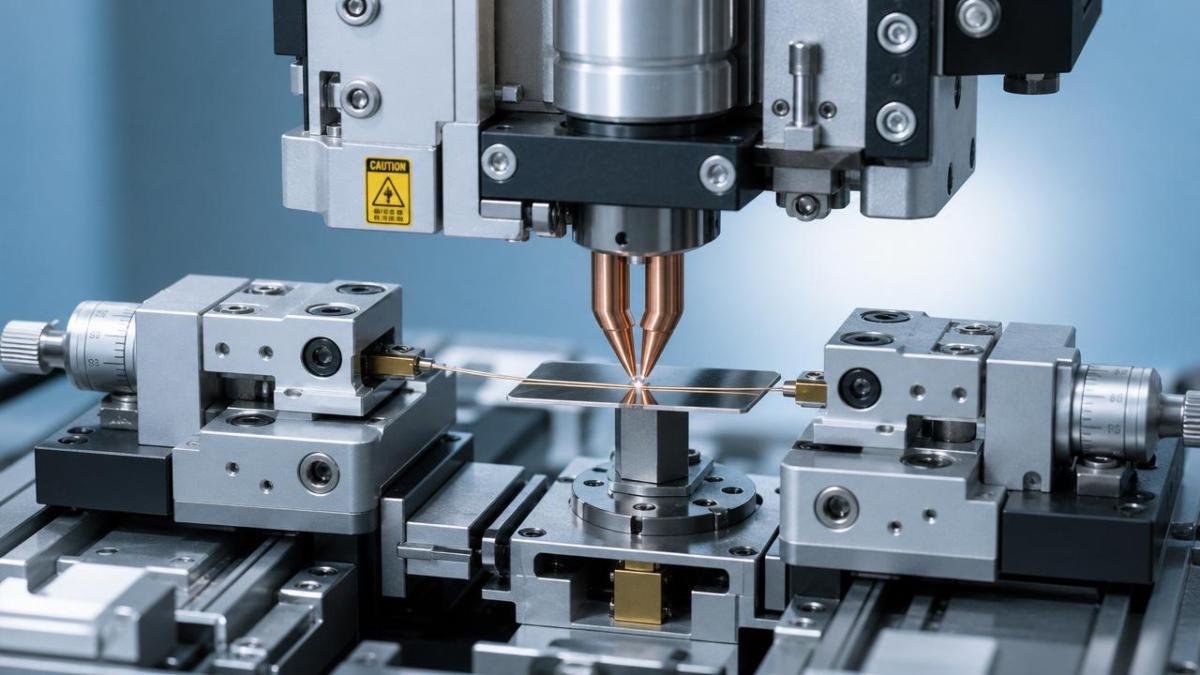

Micro-Welding Spot Precision: What Affects Repeatability Most?

At larger weld scales, process drift may still produce acceptable joints. In micro-welding, the tolerance band is much narrower. A contact force shift of only a few newtons, a surface contamination layer measured in microns, or a positioning offset of ±20 µm can move the process out of its stable window.

Operators often notice repeatability loss through indirect symptoms first: inconsistent visual marks, sudden electrode sticking, changing resistance readings, or a higher reject rate after 200 to 500 cycles. These symptoms are important because they usually point to interaction effects rather than one isolated defect.

The Main Variables Behind Spot-to-Spot Variation

The core variables can be grouped into five process domains. Each one affects micro-welding spot precision differently, and each one requires a different control method on the shop floor.

Process Variable Typical Drift Range Effect on Repeatability
Energy input ±2% to ±10% Changes fusion size, heat-affected zone, and bond consistency
Electrode wear After 100 to 1,000 cycles, depending on alloy Alters current density, contact area, and force distribution
Part alignment ±10 µm to ±50 µm Shifts weld location and creates unstable current paths
Surface condition Oxide, oil, or plating variation by batch Changes interface resistance and heat generation
Force control ±1 N to ±10 N Affects contact stability, deformation, and nugget formation

The table shows why no operator should evaluate weld quality by current or pulse time alone. In many applications, energy consistency is the leading factor, but it only produces repeatable results when electrode condition, force, and positioning stay inside a narrow process band.

Why Energy Delivery Usually Matters Most

If one variable must be ranked first, it is delivered energy at the weld interface rather than programmed energy on the screen. A machine may display identical settings for 0.8 ms pulse time and 120 A output, yet the actual heat generated can vary significantly because of contact resistance, lead condition, electrode contamination, or stack-up changes.

That distinction matters in every high-precision environment. In battery tab welding, miniature sensor assembly, or fine medical lead joining, the interface may tolerate only a small energy window before the process changes from underweld to splash or burn-through. In some thin-material applications, the stable band may be narrower than 10% of total available power.

Operator Warning Signs of Energy Instability

  • Weld marks become darker or wider within 50 to 100 parts
  • Peel or pull test results vary between shifts despite identical settings
  • Electrode sticking begins after a material lot change
  • Resistance monitoring trends drift before visible defects appear
  • Rework rate increases above 3% on miniature assemblies

When these signs appear, the best response is not immediate parameter escalation. Increasing current by 5% or extending pulse duration by 0.2 ms may temporarily mask the problem while accelerating wear and widening variation. Root-cause checks should start with interface cleanliness, electrode geometry, and force verification.

How Operators Can Improve Micro-Welding Spot Precision

Repeatability improves fastest when operators use a structured control routine. In most production cells, three actions deliver the largest gains within 2 to 4 weeks: stabilize setup, monitor drift, and standardize maintenance intervals. This is especially relevant where output volumes range from 500 parts per day to more than 20,000 micro-joints per shift.

A Practical 5-Step Control Routine

  1. Verify electrode tip geometry at the start of each shift.
  2. Confirm clamping force and alignment after changeover or maintenance.
  3. Check incoming material thickness, plating condition, and cleanliness by lot.
  4. Record baseline weld signatures for the first 10 to 20 approved parts.
  5. Trend reject causes every 100 to 300 cycles and correct drift early.

This routine is simple, but it works because it prevents operators from reacting only after visible defects emerge. In high-value sectors such as electronics, aerospace subassemblies, and precision medical manufacturing, early drift detection usually costs less than post-process inspection or customer returns.

Recommended Checks by Process Area

The following matrix helps operators and production engineers prioritize checks that directly affect micro-welding spot precision during setup, changeover, and routine production.

Control Area What to Check Suggested Frequency
Electrode condition Tip radius, contamination, wear pattern, dressing quality Every shift or every 200 to 500 welds
Mechanical alignment Part seating, parallelism, tool play, stage repeatability At setup and after changeover
Material consistency Thickness tolerance, coating variation, lot traceability Per incoming lot
Process output Weld appearance, resistance curve, destructive sample test First-off, then every 100 to 300 parts
Utility stability Air pressure, cooling flow, cable condition, grounding Daily and after service work

For many factories, the strongest improvement comes from combining these checks with simple acceptance thresholds. For example, if tip wear exceeds a defined profile, resistance drift crosses a set band, or pull force drops below the validated minimum, production pauses before the defect rate escalates.

The Role of Fixturing and Motion Accuracy

Operators sometimes treat fixturing as secondary because the weld head receives most attention. In precision manufacturing, fixture repeatability can be decisive. If the part nest allows even slight rocking, or if a stage repeats at ±30 µm when the process needs ±10 µm, energy concentration becomes inconsistent before the current pulse even begins.

This is where ultra-precision motion systems and metrology matter. Laser-referenced positioning, calibrated force application, and verified seating geometry reduce the stack-up error between component placement and actual weld location. For B2B buyers comparing systems, mechanical repeatability should be reviewed together with electrical control specifications.

Common Fixturing Mistakes

  • Assuming visual alignment is enough for parts below 1 mm feature scale
  • Using worn nests beyond their validated service life
  • Skipping flatness checks after thermal cycling or tool replacement
  • Ignoring cable drag or pneumatic variability that shifts tool approach

What Procurement and Process Teams Should Evaluate

For companies sourcing micro-joining equipment, tooling, or process support, repeatability should be evaluated as a complete capability rather than a headline output number. A supplier may offer strong nominal specifications, but operators need evidence that micro-welding spot precision can be sustained over realistic production intervals, maintenance cycles, and material changes.

Four Evaluation Criteria That Matter Most

  1. Energy control at the interface, including monitoring or feedback capability.
  2. Mechanical repeatability of stages, fixtures, and force application systems.
  3. Maintenance accessibility, including electrode replacement and calibration intervals.
  4. Traceability of process data for audits, validation, and corrective action.

In regulated or mission-critical sectors, these criteria become even more important. Semiconductor-related assembly, implantable device manufacturing, and aerospace electronics may require tighter documentation discipline, controlled utilities, and better process traceability than standard consumer assembly lines.

Questions Operators Should Ask Before Line Release

Before a new process is released, operators and engineers should confirm that the validated window remains practical in production. A process that works for 30 sample parts but drifts after 300 parts is not operationally robust.

  • What is the acceptable force band, and how is it verified?
  • How many cycles can the electrode run before dressing or replacement?
  • What material lot changes require parameter review?
  • Is there an in-process signal that predicts failure before scrap rises?
  • How long does recalibration take: 15 minutes, 1 hour, or a full shift?

These questions matter because they connect equipment capability to real operator workload. In many cases, the most productive system is not the one with the highest peak output, but the one that keeps micro-welding spot precision stable with fewer interventions across a full 8-hour or 12-hour shift.

When to Escalate from Basic Control to Advanced Monitoring

Basic monitoring may be sufficient for simple, high-volume parts with wide process tolerance. Advanced monitoring becomes worthwhile when the joint is safety-critical, material cost is high, or defect escape is expensive. Typical triggers include scrap above 2%, frequent lot-to-lot tuning, or applications with weld dimensions below 500 µm.

At that point, investment in better sensing, tighter stage control, higher-purity process environments, or improved metrology can reduce lifecycle cost. For organizations managing ultra-precision production, benchmark-driven selection often delivers better long-term value than short-term cost cutting on tooling or utilities.

Operational FAQs on Repeatability

Is current the most important parameter?

Current is critical, but delivered energy at the interface is more important than the programmed current alone. Time, force, contact resistance, alignment, and electrode condition all influence the final heat input. That is why two welds with identical settings can still behave differently.

How often should electrodes be checked?

There is no single number for every material set. In many micro-welding applications, visual and dimensional checks every shift are a practical baseline, while more demanding alloys may require inspection every 200 to 500 welds. Validation trials should define the real maintenance interval.

Can operators fix variation by raising power?

Usually not as a first response. Raising power may hide contamination, wear, or alignment problems for a short time, then create larger defects later. A disciplined sequence is better: verify electrode condition, force, fit-up, and material surface before adjusting electrical parameters.

What single investment gives the best return?

For many lines, the best return comes from combining stable fixturing, measurable force control, and routine process monitoring. If one area is weak, stronger power control alone will not secure repeatability. Micro-welding spot precision improves most when the process is engineered as a closed production system.

Repeatable micro-welding is built on controlled energy, consistent materials, healthy electrodes, accurate alignment, and disciplined monitoring. Operators who treat these factors as a linked system can reduce defects, shorten troubleshooting time, and protect quality across demanding production runs.

For teams comparing process options or upgrading ultra-precision joining capability, G-UPE supports more informed decisions through technical benchmarking, cross-disciplinary engineering insight, and production-focused evaluation criteria. Contact us to discuss your application, request a tailored assessment, or explore more solutions for improving micro-welding spot precision.
