Alignment Accuracy for Photonics: Tolerance Targets That Hold Yield

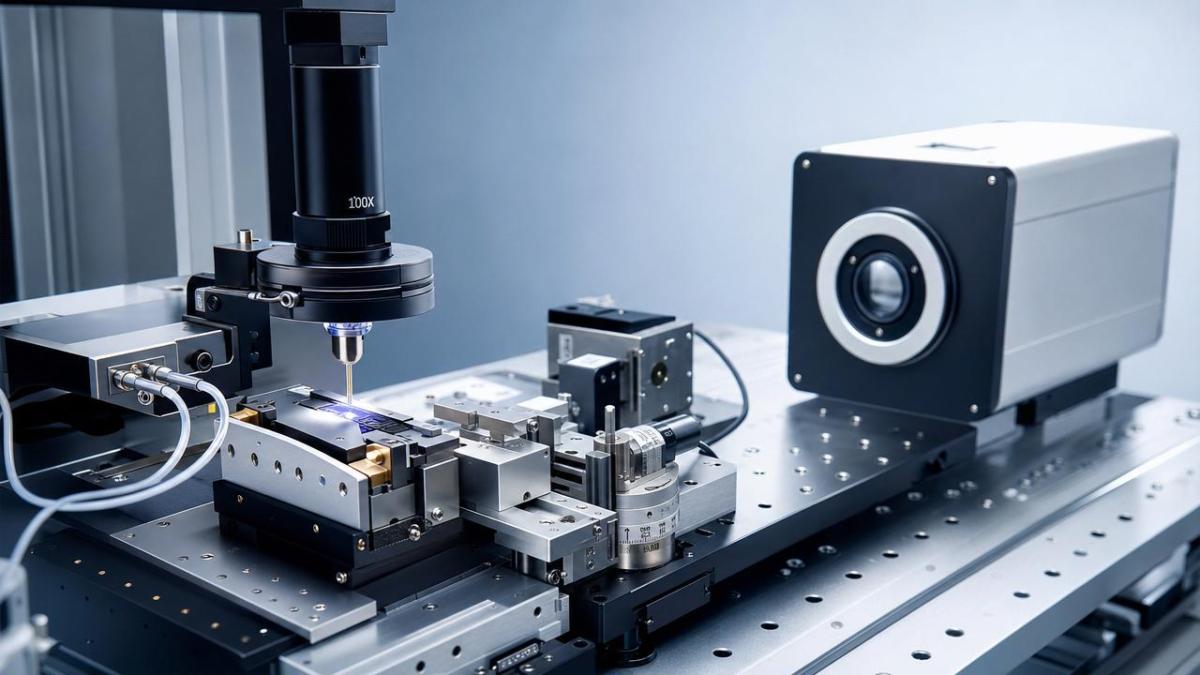

In photonics production, alignment accuracy for photonics is not just a design metric—it is a direct driver of yield, safety, and quality stability. For QC and safety managers, defining tolerance targets that remain reliable under vibration, thermal drift, and process variation is essential to preventing hidden defects, compliance risks, and costly rework. This article outlines practical tolerance strategies that hold performance where precision matters most.

Across optical assembly, wafer-level packaging, laser module integration, and fiber coupling, a tolerance that looks acceptable on paper can fail in live production within 8 to 12 hours of thermal cycling or after a few transport-induced shocks. That gap between nominal accuracy and stable manufacturing performance is where quality losses often begin.

For institutional buyers, production engineers, and inspection leaders working with ultra-precision systems, the challenge is not only to achieve micron or sub-micron placement once. The real requirement is to keep alignment accuracy for photonics within a controlled window over time, across operators, batches, and environmental change.

Why Tolerance Targets Fail Even When Initial Alignment Passes

A common production mistake is to set tolerance limits from ideal laboratory conditions and then transfer them directly into a factory line. In photonics, that approach is risky because coupling efficiency, beam path stability, and package stress can shift after cure, sealing, transport, or final inspection.

For QC teams, the first question should be simple: what must remain true after the full process, not only at the alignment station? If a laser diode is aligned to within ±0.5 µm but epoxy shrinkage introduces a 1.2 µm shift, the assembly may pass station-level checks and still underperform at outgoing quality control.

Three Sources of Hidden Drift

The most frequent drift sources are thermal expansion mismatch, vibration transfer, and fixture repeatability loss. In practical terms, a 10°C to 25°C room fluctuation may be manageable for macro-assemblies, yet it can materially affect optical paths where angular error above 0.05° changes insertion loss or beam centering.

• Thermal drift between dissimilar materials such as silicon, ceramic, and metal carriers
• Mechanical vibration from nearby automation stages, pneumatic switching, or conveyor motion
• Process drift caused by tooling wear, adhesive cure variation, or operator-dependent setup

Why Safety Managers Should Care

Misalignment in photonics is not only a yield issue. In laser assemblies, sensor modules, and medical optical subsystems, inaccurate positioning can alter beam behavior, trigger false readings, increase thermal load, or create downstream calibration errors. These effects can escalate into compliance deviations and field-return risk.

Where Class 1 or Class 2 product safety depends on enclosed optical performance, a small alignment shift may push the system outside intended operating limits. Safety reviews should therefore include tolerance retention after shock, humidity exposure, and rework, not only first-pass assembly values.

A More Useful Definition of Acceptance

For many facilities, the better acceptance criterion is a two-layer window: an initial process alignment target and a retained post-process target. For example, an assembly may require initial placement within ±0.8 µm and post-cure retained position within ±1.5 µm after 24 hours, vibration exposure, and final seal.

Practical Tolerance Targets for Common Photonics Assemblies

Tolerance targets should be tied to optical function, package architecture, and process capability. A realistic target for passive alignment is very different from one for active alignment with interferometric feedback. QC planning improves when teams classify tolerances by assembly type instead of using a single plant-wide rule.

The table below outlines common working ranges used in photonics manufacturing discussions. These are planning references, not universal design values, and should always be matched to optical power budget, substrate behavior, and inspection method.

The key message is that alignment accuracy for photonics must be selected according to optical sensitivity and process stability together. A tighter nominal target is not automatically better if the line cannot maintain it over 3 shifts, 20 lots, or repeated tool changeovers.

How to Set a Retained Tolerance Window

A useful practice is to set retained tolerance based on four checkpoints: pre-bond alignment, post-bond shift, post-environmental exposure, and final metrology. If each stage has a drift budget, the combined tolerance becomes visible before production scale-up.

1. Define optical performance threshold, such as maximum insertion loss increase or beam offset.
2. Translate that threshold into positional and angular tolerance bands.
3. Allocate a drift budget to bonding, handling, and environmental exposure.
4. Verify repeatability over at least 30 parts or 3 production lots.

When Passive and Active Alignment Need Different Controls

Passive alignment typically depends more on datum quality, fixture precision, and component dimensional control. Active alignment depends more on stage resolution, signal feedback latency, and lock-in stability. Both can reach high accuracy, but they fail for different reasons and therefore require different inspection gates.

For passive methods, gauge capability and incoming part variation often dominate. For active methods, stage backlash, software settling time, and thermal equilibration may be more important than nominal stage resolution alone. In many cases, waiting 3 to 10 seconds for stabilization improves retained alignment more than specifying a finer axis encoder.

Measurement Strategy: What QC Must Verify Beyond Position Numbers

Measurement quality determines whether tolerance data is trustworthy. A reported ±1 µm process means little if the metrology uncertainty is already 0.8 µm. Quality teams should evaluate not just measurement resolution, but total uncertainty, fixture influence, environmental control, and correlation between stations.

In ultra-precision environments, metrology should align with the real failure mode. If optical power drop is the customer-facing defect, then the inspection plan should link geometric alignment to optical output, not treat them as separate worlds.

Recommended Verification Stack

Most lines benefit from a layered verification stack that combines dimensional metrology, functional optical testing, and environmental confirmation. This reduces the risk of accepting parts that are geometrically in spec but operationally unstable.

This three-layer model is especially effective for high-value photonics assemblies where scrap cost, process time, and compliance exposure are all high. It also creates clearer data for supplier qualification and audit response.

Minimum Environmental Controls Worth Tracking

At a minimum, QC records should capture ambient temperature, local vibration condition, measurement timestamp, and equipment status. Even a 2°C drift during critical metrology can influence fine optical alignment results, particularly when fixtures or stages have not reached thermal equilibrium.

Tolerance Design for Yield, Supplier Control, and Safer Operations

Tolerance targets should support not only engineering accuracy but also scalable procurement and safe manufacturing control. If a tolerance can be met only by one operator, one fixture, or one ideal room condition, it is not a robust production tolerance. It is a demonstration result.

For procurement and quality leaders, the practical goal is to match component capability, stage performance, metrology confidence, and environmental controls into one manageable process window. This is especially relevant when evaluating nano-positioning platforms, bonding stations, metrology cells, and purity-sensitive photonics workflows.

Four Procurement Questions That Protect Yield

• What is the difference between stage resolution and verified bidirectional repeatability under load?
• How much drift occurs over 30 minutes, 4 hours, and one full production shift?
• What retained alignment data is available after cure, sealing, or vibration exposure?
• Can the supplier correlate metrology results with optical performance, not only motion data?

Common Mistakes in Tolerance Planning

One frequent mistake is to specify a tolerance tighter than the measurement system can validate. Another is to ignore cumulative stack-up from substrate flatness, adhesive behavior, tooling wear, and package stress. A third is to approve tooling based only on short-run trials below 10 samples.

A stronger approach is to run a structured qualification plan with at least 3 stress conditions, 2 operators, and repeated verification over time. For many photonics lines, this quickly shows whether alignment accuracy for photonics will hold yield in real operation or collapse under routine variability.

A Practical Acceptance Framework

A balanced acceptance framework may include six checkpoints: incoming component dimensional review, fixture capability study, alignment repeatability test, post-bond drift confirmation, environmental stability screen, and final optical correlation. This structure improves both supplier communication and internal release confidence.

Implementation Guidance for QC and Safety Teams

To translate theory into line control, teams should document tolerance logic as part of the control plan, not only as an engineering note. That means linking every critical alignment feature to its inspection frequency, environmental condition, drift budget, and response action when trends move beyond warning limits.

For example, a line may set a warning level at 70% of tolerance consumption and a hold action at 90%. If a post-cure shift trend rises from 0.6 µm to 1.1 µm against a 1.5 µm retained limit, intervention should happen before formal nonconformance appears.

Operational Checklist

1. Define initial and retained tolerance separately.
2. Validate measurement uncertainty before tightening alignment limits.
3. Use optical performance data to confirm geometric acceptance.
4. Test under thermal, vibration, and dwell-time conditions.
5. Review capability over multiple lots before releasing production scale.

Organizations operating across coatings, fluid control, metrology, electronic gases, and nano-positioning know that photonics quality is rarely controlled by one subsystem alone. Stable yield comes from coordinated precision across motion, materials, cleanliness, and verification. That is where benchmark-driven engineering support becomes commercially valuable.

When tolerance targets are tied to retained performance instead of nominal setup, alignment accuracy for photonics becomes a manageable production variable rather than a recurring source of scrap and investigation. For QC and safety managers, this shift supports stronger release discipline, lower rework, and more reliable audit evidence.

If your team is evaluating ultra-precision alignment platforms, metrology workflows, or supplier capability for photonics production, now is the right time to benchmark tolerance strategy against real operating conditions. Contact G-UPE to discuss application-specific requirements, compare technical options, and obtain a more resilient precision roadmap.
