Piezo actuator hysteresis data is essential for after-sales maintenance teams who need to diagnose drift, repeatability loss, and positioning errors quickly. This guide explains how to test hysteresis accurately, interpret the results in real operating conditions, and use the data to support calibration, troubleshooting, and performance verification in precision systems.

What Piezo Actuator Hysteresis Data Means

Piezo Actuator Hysteresis Data: Test and Use

Piezo actuator hysteresis data describes the gap between input voltage and actual displacement during loading and unloading cycles.

In simple terms, the actuator does not return through the same path when voltage decreases. That difference creates a hysteresis loop.

For ultra-precision systems, this loop affects accuracy, repeatability, and closed-loop correction efficiency. It also influences long-term maintenance planning.

Reliable piezo actuator hysteresis data helps distinguish material behavior from controller faults, sensor drift, mounting stress, or thermal instability.

This matters across metrology, semiconductor tooling, optics alignment, medical micro-positioning, and aerospace fine adjustment systems.

Core parameters normally captured

  • Maximum displacement at defined voltage
  • Upward and downward motion curves
  • Hysteresis width as a percentage of full stroke
  • Repeatability over repeated cycles
  • Drift under hold conditions
  • Temperature and preload dependence

Without structured piezo actuator hysteresis data, field diagnosis often becomes guesswork. That increases downtime and can trigger unnecessary component replacement.

Industry Context and Current Attention Points

Across comprehensive industry applications, precision motion systems are now expected to deliver stable nanometer or micrometer positioning under variable loads.

That expectation has made piezo actuator hysteresis data more important than a simple laboratory specification sheet.

Organizations increasingly compare hysteresis behavior against ISO, SEMI, IEEE, and internal validation methods to verify usable performance.

Current signal Why it matters
Higher positioning density Smaller errors become production-critical
Mixed environmental conditions Temperature and humidity can distort piezo actuator hysteresis data
More closed-loop architectures Controllers need better baseline models for compensation
Lifecycle service pressure Maintenance teams need faster fault isolation

The key concern is not only absolute hysteresis. The concern is whether the measured behavior still fits the validated operating window.

How to Test Piezo Actuator Hysteresis Data Correctly

Accurate testing starts with a stable setup. Poor fixtures or noisy sensors can corrupt piezo actuator hysteresis data before analysis even begins.

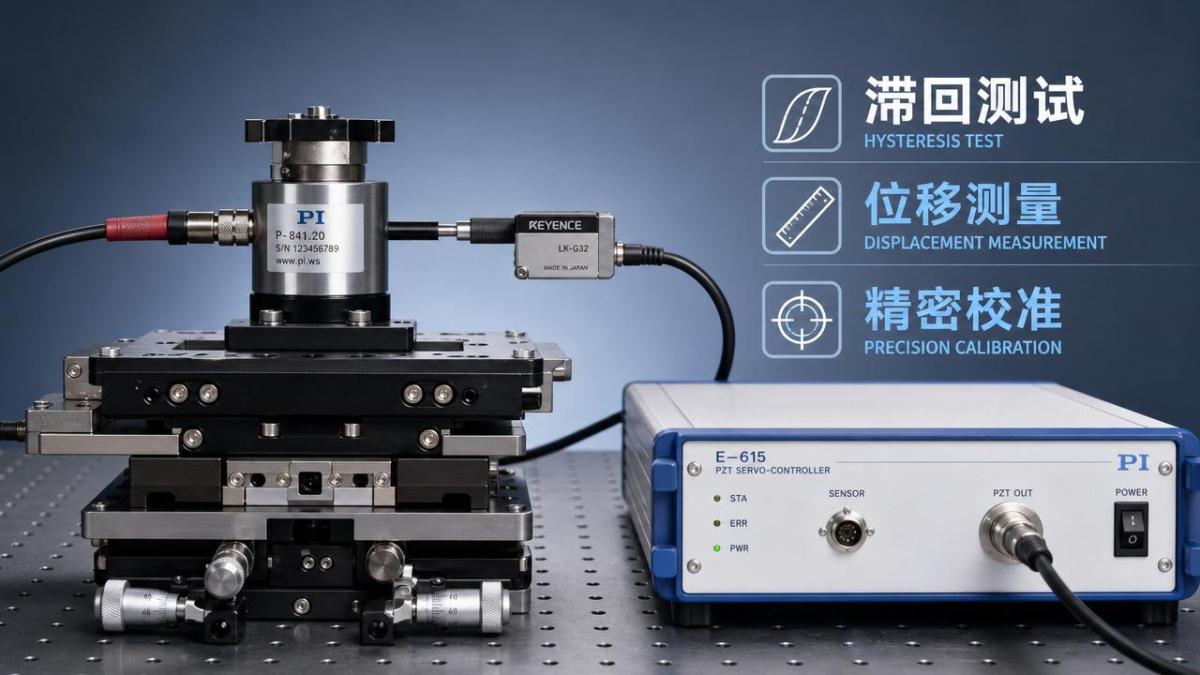

Recommended test setup

  • Calibrated displacement sensor, such as capacitive or laser interferometric measurement
  • Low-noise high-voltage amplifier
  • Rigid mechanical mounting with known preload
  • Controlled ambient temperature
  • Data acquisition system with adequate sampling rate

Basic test procedure

  1. Stabilize the actuator thermally before measurement.
  2. Apply voltage from minimum to maximum at a constant rate.
  3. Record displacement continuously during the upward sweep.
  4. Reduce voltage back to minimum at the same rate.
  5. Repeat several cycles to assess consistency.
  6. Compare results under unloaded and loaded conditions.

Cycle speed must be documented. Fast ramps can introduce dynamic effects that look like hysteresis but actually reflect bandwidth limits.

Likewise, preload should remain consistent. Changing mechanical stress can shift the curve and distort piezo actuator hysteresis data interpretation.

Common test errors

  • Sensor misalignment
  • Unrecorded warm-up drift
  • Mechanical backlash in the fixture
  • Electrical noise from the amplifier or cables
  • Mixing data from different load states

How to Read the Results in Real Operating Conditions

A clean hysteresis loop does not automatically mean the stage is healthy. Context matters more than curve shape alone.

First, compare current piezo actuator hysteresis data with the original acceptance baseline. Focus on loop width, zero-point shift, and stroke reduction.

Second, review the application profile. A metrology scanner and a dispensing valve may tolerate very different hysteresis percentages.

Observed result Possible interpretation
Wider loop than baseline Material aging, thermal change, or mounting stress
Reduced full stroke Load increase, depolarization risk, or drive limitation
Inconsistent cycle overlap Unstable temperature, noise, or sensor issues
Offset after return to zero Drift, creep, or fixture relaxation

Useful piezo actuator hysteresis data should always be linked with creep data, repeatability data, and environmental records.

Business Value of Piezo Actuator Hysteresis Data

The value of piezo actuator hysteresis data extends beyond engineering curiosity. It directly supports service quality, compliance evidence, and uptime planning.

In precision ecosystems, verified data reduces disputes about whether failure originated in the actuator, controller, mechanics, or process conditions.

Where the data creates practical value

  • Supports calibration intervals based on real behavior changes
  • Improves replacement decisions with objective evidence
  • Helps validate compensation algorithms in closed-loop control
  • Strengthens acceptance testing for high-precision assemblies
  • Provides traceable records for regulated or audited environments

For institutions focused on technical benchmarking, piezo actuator hysteresis data also enables cross-system comparison under consistent methods.

Typical Scenarios and Object Categories

Not every actuator should be tested in the same way. The measurement objective depends on structure, stroke, load path, and control architecture.

Scenario or object Key focus for hysteresis data
Nano-positioning stage Sub-nanometer repeatability and closed-loop residual error
Optical alignment module Bidirectional path consistency under thermal variation
Micro-dosing or valve control Stroke linearity around small command ranges
CMM or metrology subsystem Traceability, repeatability, and environmental stability

Practical Recommendations and Cautions

Use one standard template for recording piezo actuator hysteresis data. Include model, preload, sensor type, voltage range, ramp rate, and ambient temperature.

Always store raw curves, not only summary percentages. Later troubleshooting often depends on the original curve shape.

Separate hysteresis from creep during analysis. These effects interact, but they should not be reported as one combined deviation.

If field results differ sharply from laboratory values, inspect the mounting interface first. Mechanical constraint is a common hidden cause.

  • Retest after thermal stabilization
  • Confirm amplifier output with independent measurement
  • Verify sensor calibration traceability
  • Document software compensation status

Next-Step Use of the Data

A useful next step is to build a baseline library of piezo actuator hysteresis data for each critical assembly and service interval.

Then compare new tests against that library, not against isolated catalog values. This gives a more realistic view of system health.

When the data is tied to calibration records, environmental logs, and controller settings, troubleshooting becomes faster and more defensible.

For precision operations, piezo actuator hysteresis data should be treated as a lifecycle reference, not a one-time acceptance metric.
