High Precision Goniometer Wholesale: Key Specs That Affect Alignment Accuracy

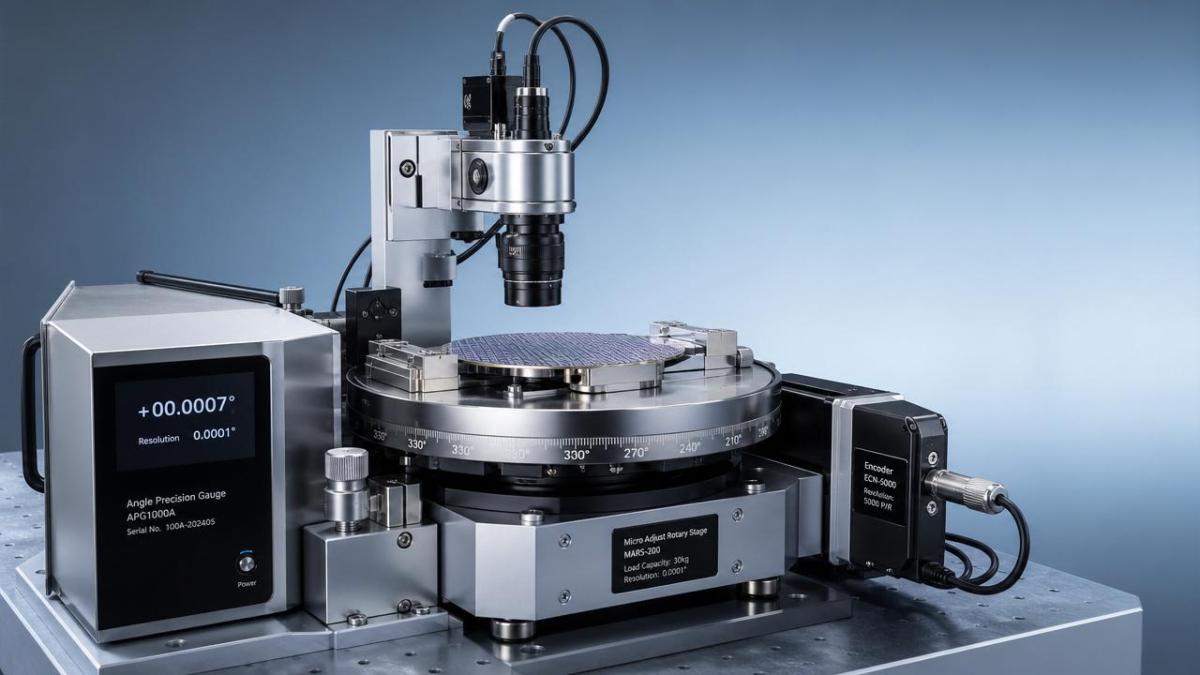

In high precision goniometer wholesale sourcing, alignment accuracy depends on much more than angular travel. Resolution, repeatability, load behavior, drive design, and feedback quality all shape real-world performance.

For optical alignment, wafer handling, metrology, photonics assembly, and micro-positioning tasks, small specification differences can create large system errors. Careful comparison helps reduce drift, scrap, and setup time.

This guide explains the most important factors behind high precision goniometer wholesale decisions. It also shows how to judge supplier claims using practical engineering criteria and verification methods.

What does alignment accuracy really mean in high precision goniometer wholesale?

Alignment accuracy is not a single number. It is the combined result of commanded angle, actual angle, structural stability, and how well the stage maintains position under operating conditions.

In high precision goniometer wholesale evaluation, catalog values may look similar. However, one unit may excel in resolution while another performs better in repeatability or off-axis error control.

A goniometer used in laser beam steering needs predictable angular response. A stage used in semiconductor inspection may require extremely low wobble, low Abbe error, and stable feedback over time.

Key accuracy terms usually include:

• Resolution: the smallest controllable motion increment
• Repeatability: the ability to return to the same angular position
• Bidirectional accuracy: deviation when approaching from opposite directions
• Wobble or tilt error: unwanted motion outside the intended axis
• Stability: resistance to drift caused by load, temperature, or vibration

Understanding these terms prevents overbuying based on headline numbers. It also prevents underestimating the alignment risk in sensitive integrated systems.

Which specifications affect alignment accuracy the most?

Several specifications directly influence whether a stage delivers precise alignment in production or research environments. The best high precision goniometer wholesale choice balances all of them together.

1. Resolution versus usable resolution

Theoretical resolution may come from motor step size or encoder interpolation. Usable resolution depends on friction, backlash, servo tuning, and mechanical compliance.

A stage advertised with very fine increments may still fail to move smoothly at those increments. Ask for actual motion test data, not only controller math.

2. Repeatability and hysteresis

Repeatability is often more important than raw resolution. If the stage cannot return to the same angle reliably, alignment loops become slow and inconsistent.

Hysteresis appears when the final position changes depending on approach direction. This is common in worm gears, flexures under heavy load, and poorly preloaded systems.

3. Load capacity and moment stiffness

Published load capacity alone is not enough. Offset loads and overturning moments can alter angular accuracy, especially in optical stacks or multi-axis assemblies.

For high precision goniometer wholesale comparisons, request stiffness data under realistic payload orientation. Low structural stiffness increases settling time and alignment drift.

4. Bearing architecture

Cross-roller bearings, flexure pivots, and air bearings produce different accuracy profiles. Cross-roller designs often balance load support and precision for industrial environments.

Flexure-based goniometers can deliver zero backlash and smooth motion, but travel range and load tolerance may be limited. Air bearings provide exceptional smoothness but need infrastructure.

5. Drive mechanism and feedback system

Micrometer drives, piezo actuators, worm gears, and direct-drive motors each suit different precision targets. Feedback quality determines whether commanded and actual angles truly match.

High-end systems often use rotary encoders, laser interferometry, or closed-loop piezo control. Without strong metrology integration, precision claims remain difficult to verify.

How do drive mechanisms change performance in real applications?

Drive mechanism selection is one of the most overlooked parts of high precision goniometer wholesale decisions. It affects smoothness, backlash, speed, maintenance, and long-term stability.

Manual micrometer stages are useful for laboratory setup and budget-sensitive integration. They can be precise, but repeatability depends strongly on operator technique and lock stability.

Worm gear drives offer broader angular travel and good load support. However, backlash management, lubrication quality, and gear wear strongly affect alignment accuracy over time.

Piezo-driven goniometers are excellent for ultra-fine angular adjustment. They suit optics, microscopy, and nano-positioning, especially where tiny corrections matter more than long travel.

Direct-drive rotary systems reduce mechanical transmission error. When paired with high-resolution encoders, they can support advanced automation and fast closed-loop positioning.

A practical comparison looks like this:

What application conditions can reduce stated accuracy?

Catalog specifications are usually measured under controlled conditions. Real installations introduce temperature gradients, cable forces, vibration, contamination, and assembly misalignment.

In high precision goniometer wholesale projects, several hidden factors often degrade performance:

• Payload center of gravity sits far from the rotation center
• Base mounting surface lacks flatness or rigidity
• Cables or pneumatic lines pull against small-angle motion
• Temperature change shifts structural dimensions
• Controller tuning is not optimized for the actual load

These issues matter in aerospace alignment fixtures, biomedical instrumentation, laser processing, and semiconductor metrology. The tighter the tolerance, the more installation details matter.

A strong supplier should discuss mounting guidance, environmental limits, and calibration intervals. A weak supplier usually stops at catalog claims.

How should high precision goniometer wholesale options be compared across suppliers?

Effective comparison requires matching specifications to the application error budget. Do not compare only maximum angle, list price, or motor type.

Use a structured evaluation checklist:

1. Define required angular accuracy at the point of use
2. Separate resolution, repeatability, and absolute accuracy
3. Check payload mass, center offset, and moment load
4. Review encoder type and calibration traceability
5. Ask for wobble, runout, and settling time data
6. Confirm expected life, maintenance, and contamination limits
7. Request acceptance testing under similar conditions

For global sourcing, standards alignment also matters. ISO-based inspection, SEMI-aware documentation, and traceable metrology records improve confidence in cross-border technical evaluation.

This is where a technical benchmarking approach becomes useful. It turns high precision goniometer wholesale selection from a catalog exercise into a controlled engineering comparison.

What are the most common mistakes when selecting a precision goniometer?

The most common mistake is treating the smallest resolution value as proof of best accuracy. Fine increments are meaningless if the mechanics cannot support stable motion.

Another mistake is ignoring the full stack. A highly accurate stage mounted on a flexible bracket will not maintain alignment in production conditions.

Other frequent errors include:

• Selecting travel range far beyond actual need
• Skipping backlash and hysteresis questions
• Overlooking thermal behavior during long duty cycles
• Assuming all encoders offer equal traceability
• Not validating performance with real payloads

In high precision goniometer wholesale sourcing, early technical clarification lowers lifecycle cost. It reduces redesign risk, integration delays, and hidden calibration expenses later.

FAQ table: how can key specs be judged quickly?

The best high precision goniometer wholesale choice is rarely the one with the longest travel or the smallest advertised increment. It is the one that maintains verified alignment accuracy in the actual system.

Focus on repeatability, stiffness, feedback quality, environmental fit, and metrology traceability. These specifications determine whether precise angular positioning remains stable beyond the datasheet.

For the next step, build a comparison sheet using your payload, thermal conditions, mounting method, and target error budget. Then request evidence-based performance data before finalizing any high precision goniometer wholesale shortlist.
