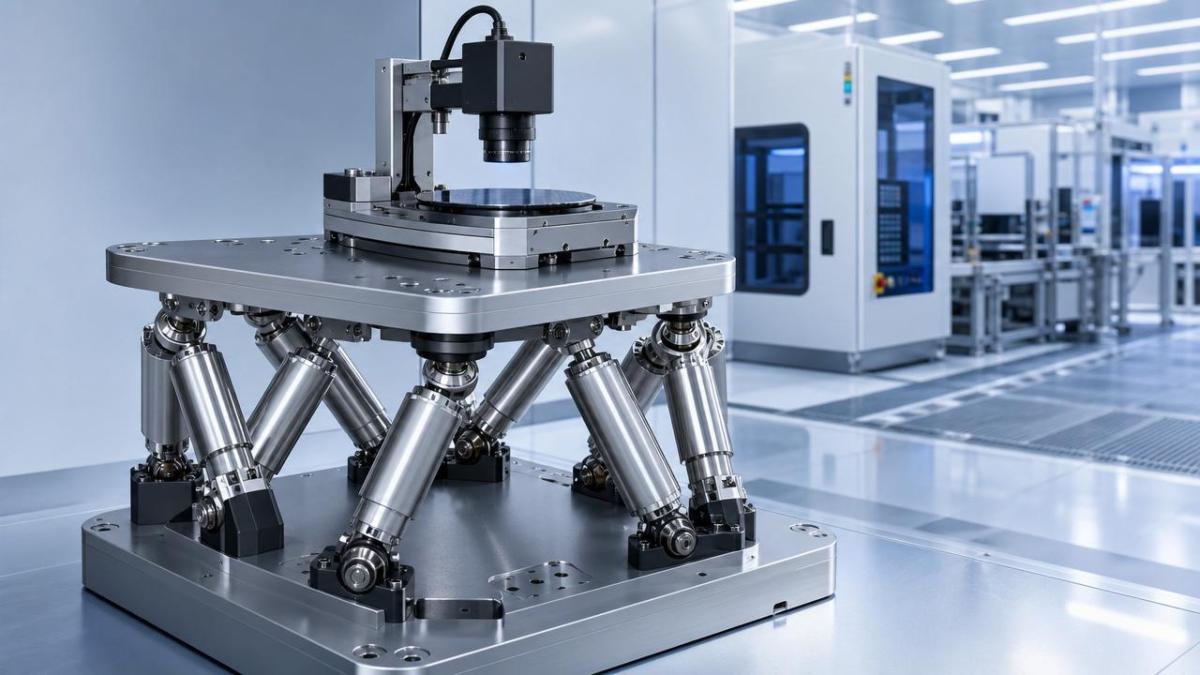

Hexapod Payload and Stiffness Metrics Compared

For project leaders evaluating precision motion platforms, hexapod payload and stiffness metrics are more than datasheet numbers—they directly affect accuracy, stability, and risk across demanding applications. This article compares these critical indicators in a practical, engineering-focused way, helping decision-makers identify how load capacity and structural rigidity influence performance, integration, and long-term operational confidence.

Why hexapod payload and stiffness metrics shape project risk early

In semiconductor tooling, metrology cells, optical alignment stations, aerospace assembly, and micro-manipulation platforms, a hexapod is rarely judged by motion range alone. Project managers are usually balancing throughput targets, payload uncertainty, floor vibration, thermal drift, compliance demands, and supplier lead times at the same time.

That is why hexapod payload and stiffness metrics deserve to be read together. Payload defines how much mass the system can support, but stiffness determines how that mass behaves under acceleration, offset loading, cable drag, and process forces. A platform with sufficient nominal load capacity can still miss process requirements if structural rigidity is too low.

For engineering project leaders, the real question is not simply, “What payload can this hexapod carry?” It is, “What payload can it carry while preserving target accuracy, settling time, and repeatable process quality?” That distinction often separates a smooth commissioning phase from months of corrective redesign.

• Payload affects actuator sizing, bearing stress, power demand, and usable motion envelope.
• Stiffness affects deformation under load, resonant behavior, dynamic response, and positional confidence.
• The interaction between the two affects integration success, especially when the mounted subsystem has a high center of gravity or asymmetric mass distribution.

G-UPE focuses on exactly this kind of procurement challenge. By benchmarking precision motion technologies against internationally recognized engineering frameworks and adjacent system constraints, it helps buyers compare not just specifications, but specification meaning in real production contexts.

What do payload and stiffness actually mean in a hexapod comparison?

Many teams compare vendor sheets line by line and assume common definitions. In practice, hexapod payload and stiffness metrics may be presented under different assumptions. One supplier may state maximum payload at static center loading, while another may refer to payload with reduced travel or reduced acceleration. Stiffness may be quoted axially, laterally, rotationally, or as a generalized system estimate.

Payload is more than dead weight

Payload usually includes the workpiece, fixture, tooling, cables, air lines, sensors, and sometimes the adapter plate. For project planning, teams should model the total moving mass rather than the nominal part weight. Offset mass and inertia can be just as important as kilograms because they reshape the force distribution across the six struts.

Stiffness is directional, not universal

Hexapod stiffness is not a single number with universal meaning. A system can be relatively stiff in Z translation yet less resistant to pitch or roll under an eccentric load. In ultra-precision environments, rotational compliance can degrade alignment even when linear displacement looks acceptable.

Dynamic use changes the decision

A payload rating under static conditions does not guarantee the same performance during fast indexing, scanning, or synchronized process moves. If the application involves frequent starts and stops, process force variation, or external cable torque, stiffness becomes a direct driver of settling time and cycle stability.

The table below shows how project teams should interpret hexapod payload and stiffness metrics during technical review rather than treating them as isolated catalog values.

This comparison matters because a technically valid specification can still be commercially risky if it does not reflect actual installation conditions. Teams that clarify test assumptions early tend to avoid late-stage redesign of fixturing, support frames, and cable management.

Which applications need higher stiffness more than higher payload?

Not every precision motion project needs the highest possible payload. In many advanced applications, stiffness is the stronger performance limiter. This is especially true where optical path integrity, sensor repeatability, or sub-micron geometric stability matters more than carrying heavy assemblies.

Optics and photonics alignment

These systems often carry modest mass, but even small angular deflection can degrade beam coupling or focus stability. Here, rotational stiffness and low sensitivity to cable-induced moments are often more important than maximum static load.

Metrology and multi-sensory inspection

When a hexapod supports probes, cameras, interferometric heads, or hybrid sensing modules, stiffness influences measurement uncertainty. A platform that flexes under probing force or during rapid repositioning can compromise data credibility even if repeatability appears acceptable in empty-load tests.

Micro-manipulation and nano-positioning environments

In wafer handling, precision packaging, or biomedical device assembly, process loads may be light but disturbance sensitivity is high. A lower-payload system with superior structural rigidity can outperform a heavier-duty alternative because it settles faster and transmits less compliance into the tool tip.

• Choose higher stiffness priority when angular accuracy, vibration control, or probing stability is critical.
• Choose higher payload priority when fixtures are massive, workpieces vary widely, or future payload growth is expected.
• Treat both as equally critical when applications involve large payloads plus aggressive motion profiles, such as aerospace subassembly positioning or heavy sensor cluster alignment.

For cross-industry procurement, G-UPE’s benchmarking approach is useful because application context often changes the ranking of what matters. A payload-rich platform may look attractive on paper, but if the process window is narrow, stiffness stability and dynamic behavior can deliver more value over the asset life.

How to compare hexapod payload and stiffness metrics across suppliers

The most common sourcing mistake is comparing values without normalizing the test basis. Project managers should insist on a like-for-like review framework. That includes load position, motion range, acceleration profile, environmental assumptions, control architecture, and mounting configuration.

The table below provides a practical supplier comparison template for hexapod payload and stiffness metrics in procurement reviews.

A disciplined comparison process reduces hidden risk. It also improves internal communication between procurement, process engineering, controls, and mechanical integration teams, which is critical when the hexapod sits inside a larger high-value production or measurement system.

A practical review sequence

1. Define the true moving payload, including fixtures, adapters, sensors, harnesses, and process accessories.
2. Map the center of gravity and inertia, not just total mass.
3. State the required accuracy during motion and after settling, because both influence acceptable stiffness margins.
4. Request stiffness data in the directions relevant to the application, especially pitch and roll for tall or offset loads.
5. Validate performance with representative duty cycle assumptions rather than one-point specification claims.

Procurement guide: what project managers should ask before approval

The approval stage often compresses complex engineering into a few purchasing decisions. To avoid downstream surprises, project leaders should ask questions that connect hexapod payload and stiffness metrics to business impact, not just engineering theory.

Questions that clarify technical fitness

• What payload can the system support at the required acceleration and stroke, not merely at rest?
• How does stiffness change with platform pose, extension, or off-center loading?
• What installation conditions are necessary to preserve the stated stiffness metrics?
• What controller, feedback, and calibration assumptions are behind the published performance values?

Questions that clarify commercial fit

• Will minor payload growth in the next phase require a larger frame, new actuators, or retuning?
• What is the expected impact on lead time if custom stiffness or interface requirements are added?
• Are there export, compliance, or documentation considerations for cross-border delivery into regulated sectors?

This is where a technical intelligence partner adds value. G-UPE supports procurement teams that need more than a price quote. It helps frame technical reviews, normalize specification claims, and connect motion-stage data to broader concerns such as metrology compatibility, fluid routing constraints, clean process exposure, and standards alignment.

Common mistakes when reading hexapod payload and stiffness metrics

Several recurring mistakes inflate risk during supplier selection. They are rarely obvious at quotation stage, but they become expensive during commissioning.

Mistake 1: using payload without a center-of-gravity model

A centered static payload is easier to support than a tall, offset assembly. If the center of gravity rises or shifts, rotational moments increase and the apparent stiffness at the process point can deteriorate sharply.

Mistake 2: assuming stiffness is constant at all poses

Depending on kinematic geometry, structural rigidity may vary across the motion envelope. Teams that operate near extreme poses should verify whether published hexapod payload and stiffness metrics still apply.

Mistake 3: ignoring the surrounding system

A highly rigid hexapod mounted on a compliant machine frame will not deliver the expected result. The effective system stiffness includes the base, the adapter plate, the fasteners, the payload interface, and even cable harness behavior.

Mistake 4: over-prioritizing capacity and under-prioritizing controllability

Some buyers select the highest payload class as a safety move. That can increase cost, footprint, energy use, and integration complexity without improving process quality. A better approach is to define a realistic margin and focus on stiffness where the process is most sensitive.

FAQ: how buyers evaluate hexapod payload and stiffness metrics in real projects

How much safety margin should be added to payload?

There is no single rule that fits every project, because duty cycle, acceleration, center-of-gravity offset, and future tool changes all matter. In practice, project teams should avoid sizing exactly to the current nominal mass. A prudent review includes fixture growth, cable additions, and process-driven dynamic loads, then checks whether stiffness remains acceptable at that expanded condition.

Which matters more for precision positioning: payload or stiffness?

If the platform cannot support the necessary mass, payload becomes the first constraint. Once minimum load capacity is met, stiffness often becomes the more decisive factor for precision, settling, and vibration resistance. That is why hexapod payload and stiffness metrics should be reviewed as a pair rather than as separate purchasing criteria.

Are vendor stiffness values enough for final selection?

They are a starting point, not a final answer. Buyers should ask how the stiffness was measured, whether it includes the intended payload, which axis or moment direction was used, and how installation conditions affect the result. For high-value tools, it is reasonable to request application-specific validation logic before final approval.

What affects delivery and implementation most?

Custom adapter plates, nonstandard load envelopes, controller integration, clean process constraints, and documentation needs often influence schedule more than the hexapod itself. Teams should include these items in early review to avoid pushing risk into factory acceptance or site installation.

Why informed buyers work with a technical benchmarking partner

Projects at the frontier of accuracy do not fail because engineers ignore specifications. They fail because specifications are interpreted outside their real operating context. Hexapod payload and stiffness metrics are a good example: they look simple, but their value depends on geometry, dynamics, installation, compliance expectations, and neighboring subsystems.

G-UPE supports project leaders who need a more defensible selection path. Across ultra-precision manufacturing pillars such as metrology, fluid control, micro-positioning, and high-purity process environments, it helps teams compare technical claims against operational reality and relevant standards language. That reduces ambiguity before procurement commitments are made.

If your team is reviewing a motion platform for a new build, upgrade, or global sourcing program, contact us to discuss payload confirmation, stiffness interpretation, motion-stage selection, delivery implications, custom interface constraints, standards and documentation expectations, sample evaluation logic, and quotation alignment with your actual process target. That discussion is especially valuable when your application includes offset loads, strict settling-time targets, clean environment constraints, or multi-supplier integration risk.
