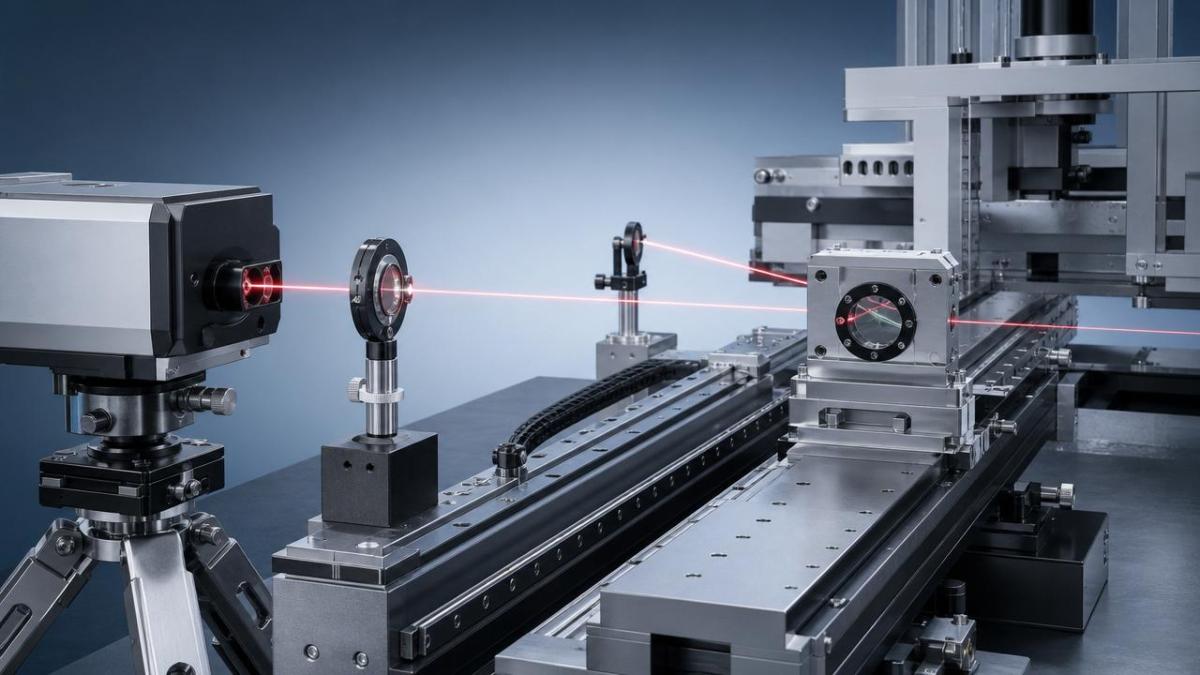

Laser Interferometer Measurement Range Limits

Understanding laser interferometer measurement range is essential when comparing ultra-precision systems across metrology, motion control, and advanced manufacturing. In semiconductor tools, coordinate metrology, and aerospace calibration benches, range limits are never just a catalog number. They are shaped by optics, beam quality, environmental stability, alignment geometry, and signal processing. A practical evaluation must connect the stated range with real installation conditions, error budget expectations, and the motion profile of the application.

A long advertised range can still fail in production if the beam path crosses turbulence, reflective quality changes, or stage dynamics exceed tracking capacity. Conversely, a shorter nominal range may deliver better usable accuracy in compact, thermally controlled systems. This guide breaks down the main factors that define laser interferometer measurement range, with a checklist that supports technical benchmarking and more reliable system comparison.

Why a checklist is necessary for laser interferometer measurement range

Range claims are often interpreted too simply. Many data sheets separate optical range, practical operating range, and guaranteed accuracy range, yet users may compare them as if they were identical. A checklist prevents that mistake by forcing a review of the full measurement chain.

This matters across the broader industrial landscape. Integrated systems may combine air bearings, nanopositioning stages, CMM structures, thin-film process tools, or micro-assembly cells. In each case, the true laser interferometer measurement range depends on whether the instrument can preserve fringe visibility, signal stability, and compensation integrity over the full travel distance.

Core checklist for evaluating measurement range limits

1. Verify the specified range definition, and separate maximum optical distance from guaranteed measurement distance, linearity range, and compensated operating range under stated environmental conditions.
2. Check beam divergence, because long paths expand spot size, reduce return intensity, and increase sensitivity to aperture clipping, target tilt, and contamination.
3. Review reflector type carefully, since plane mirrors, retroreflectors, and angular optics support different path lengths, alignment tolerances, and motion geometries.
4. Confirm signal-to-noise margin at full travel, especially where high acceleration, vibration, or low reflectivity may weaken fringe contrast and tracking stability.
5. Measure environmental influence, including air temperature gradients, pressure variation, humidity, airflow, and refractive index changes along the full beam path.
6. Inspect mechanical alignment over travel, because yaw, pitch, Abbe offset, and structural drift can turn a nominally valid range into an unusable metrology span.
7. Evaluate controller bandwidth and interpolation electronics, since long-range dynamic measurement requires stable counting, fast signal recovery, and low phase error.
8. Compare accuracy per meter rather than only total range, because extended distance usually increases cumulative uncertainty from optics, environment, and structure.
9. Assess installation constraints early, including line-of-sight clearance, beam enclosure feasibility, cable routing, and the ability to maintain access for recalibration.
10. Request evidence from reference applications, using actual machine architecture and duty cycle instead of relying solely on laboratory range demonstrations.

How specifications should be interpreted

The most common evaluation error is treating every range statement as a metrology guarantee. Some suppliers report the farthest detectable path under ideal alignment. Others report the distance where uncertainty remains within a defined tolerance. For laser interferometer measurement range, those are fundamentally different values.

A better review asks four direct questions: What path length was tested? What reflector was used? What environmental compensation was active? What uncertainty remained at the far end of travel? Without those answers, range data lacks decision value.

Application-specific range considerations

Semiconductor and wafer-stage systems

In semiconductor tools, the required travel may be moderate, but the allowable error is extremely small. Here, laser interferometer measurement range is less constrained by raw optical distance and more by thermal control, vibration isolation, and dynamic tracking during fast stage motion.

Short to medium paths inside enclosed architectures often outperform longer open paths. Beam shielding, refractive index compensation, and minimized Abbe error are usually more important than headline range extension.

CMM and large-volume dimensional metrology

For bridge CMMs, gantry systems, and calibration frames, longer travel can make laser interferometer measurement range a central selection factor. However, structural straightness and air turbulence usually become dominant error sources before the optical source itself reaches its limit.

A practical strategy is to compare enclosed beam paths, compensation sensor distribution, and mirror mounting rigidity. These factors often determine whether long-range measurement remains repeatable over daily production cycles.

Aerospace, machine tool, and alignment benches

In aerospace fixtures and machine tool verification, long axis lengths may seem to demand maximum laser interferometer measurement range. Yet portable deployment introduces alignment drift, floor vibration, and local thermal variation that can sharply reduce usable performance.

When systems are moved frequently, setup repeatability matters as much as optical capability. Fast realignment features, robust reflector mounting, and stable environmental logging can be more valuable than nominal extra meters.

Often overlooked limits and risk points

Air refractive index instability

Longer beam paths magnify refractive index error. Even when the laser interferometer measurement range is optically sufficient, uncorrected air variation can dominate the uncertainty budget and make the outer travel zone unreliable.

Reflector geometry mismatch

A system may support the target distance only with a specific retroreflector. If the installed machine uses a plane mirror for compact geometry or multi-axis correction, the achievable range may drop noticeably.

Dynamic signal loss during acceleration

Static bench tests can hide motion-related dropouts. High-speed stages may cross the full laser interferometer measurement range physically, but the controller can still lose fringe integrity at acceleration peaks or vibration resonances.

Mechanical offsets in the metrology loop

If the beam line is offset from the point of interest, angular motion creates position error that scales with distance. In many assemblies, practical range is limited by machine geometry, not by interferometer optics.

Practical execution steps

• Map the required travel, speed, and accuracy into one table before comparing systems, so the needed laser interferometer measurement range is tied to actual duty conditions.
• Ask for uncertainty versus distance curves, not only maximum range values, and review where compensation assumptions begin to dominate reported performance.
• Run installation simulations that include beam clearance, enclosure options, and thermal sources near the path before finalizing architecture.
• Test the far end of travel during dynamic motion, because the usable laser interferometer measurement range must remain stable under real acceleration and vibration conditions.
• Document recalibration intervals and environmental monitoring methods, especially in facilities where ambient control differs from laboratory qualification conditions.

Summary and next-step guidance

The best way to assess laser interferometer measurement range is to treat it as a system-level performance boundary, not a single optical number. Optical path design, reflector selection, environmental compensation, motion dynamics, and machine geometry all determine whether the stated range is truly usable.

For technical benchmarking, start with the required accuracy at the farthest travel position. Then verify the interferometer, controller, reflector, and installation environment against that target. This sequence produces a more defensible range evaluation and reduces the risk of selecting a system that performs well on paper but weakly in operation.

When comparing options, prioritize verified application data, uncertainty curves, and environmental assumptions. That approach turns laser interferometer measurement range from a marketing metric into a reliable engineering criterion for ultra-precision deployment.
