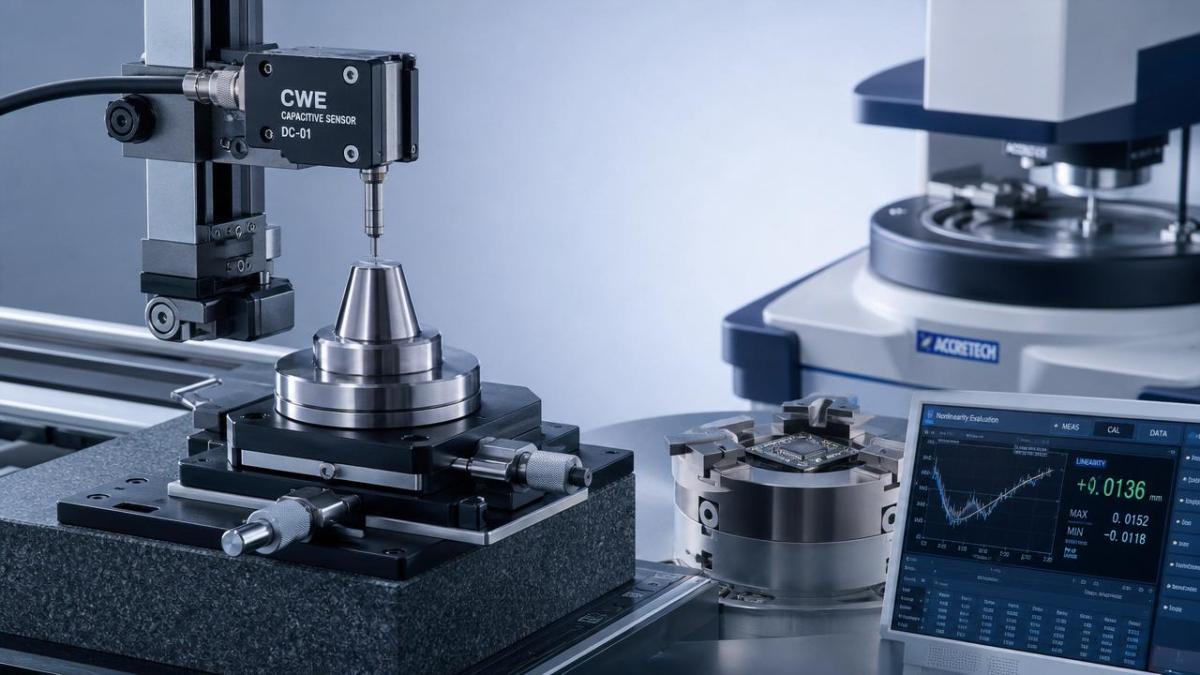

How to Read Capacitive Sensor Non-Linearity Data

For technical evaluators comparing precision sensing systems, understanding capacitive sensor non-linearity data is essential to judging true measurement performance beyond headline specifications. This guide explains how to read these data correctly, relate them to accuracy, calibration, and application risk, and make more confident decisions when assessing high-precision components for demanding industrial environments.

Why capacitive sensor non-linearity data matters in real evaluation scenarios

Capacitive sensor non-linearity data affects far more than a datasheet comparison. It influences error budgeting, control stability, calibration cost, and downstream product conformity.

In ultra-precision environments, a sensor may show excellent resolution yet still create unacceptable deviation if its transfer curve bends across the measuring range.

That is why capacitive sensor non-linearity data should be read alongside range, repeatability, sensitivity, thermal drift, and electronics architecture.

For cross-industry use, this issue appears in semiconductor stages, metrology fixtures, medical assembly tools, aerospace alignment, and precision fluid control systems.

How to judge non-linearity when the application range is narrow

Many errors begin when full-scale capacitive sensor non-linearity data is applied to a smaller working stroke without interpretation.

A sensor may list non-linearity as ±0.1% of full scale. That number looks small, but the practical effect depends on the actual motion window used.

If the working range sits in the center of the curve, effective linearity may be better. If it sits near an endpoint, localized error may be worse.

Key judgment points for narrow-range positioning

• Check whether capacitive sensor non-linearity data is stated as best-fit, end-point, or independent linearity.
• Confirm whether the error is expressed as percentage of full scale or percentage of reading.
• Map the real operating window onto the published calibration curve.
• Ask whether linearization is analog, digital, or user-calibrated.

This scenario is common in nano-positioning stages and fine-gap inspection systems, where only a small fraction of the nominal range is used.

How to read capacitive sensor non-linearity data in scanning and metrology tasks

Scanning applications use more of the travel range. Here, capacitive sensor non-linearity data becomes directly tied to form accuracy and reconstructed geometry.

In coordinate metrology or surface profiling, a curved response can distort measured height, flatness, waviness, or contour consistency.

Even when repeatability looks excellent, non-linearity creates systematic error. That means repeated wrong results can still appear stable.

Core checks for scanning systems

• Review the full response curve, not only the single non-linearity number.
• Check if the sensor controller includes polynomial correction.
• Verify traceability to ISO, SEMI, or internal metrology procedures.
• Test linearity under target sampling speed and cable routing conditions.

This matters in CMM retrofits, wafer inspection, optical stage feedback, and high-accuracy gauging fixtures requiring predictable geometric fidelity.

How environmental conditions change the meaning of non-linearity data

Published capacitive sensor non-linearity data is usually measured under controlled laboratory conditions. Industrial reality rarely matches that environment.

Humidity, contamination, target material variation, mounting stress, EMI, and thermal expansion can alter the effective curve seen in operation.

In cleanroom tools, environmental variation may be limited. In integrated machinery, cable movement and structural loading often introduce additional distortion.

When the same datasheet fits one scenario but fails another

A laboratory alignment station may accept a sensor because the target is stable, grounded, and temperature-controlled.

A production machine may reject the same sensor because target composition changes, thermal gradients shift zero, and grounding quality varies by installation.

So capacitive sensor non-linearity data should always be interpreted as conditional performance, not universal truth.

Typical application scenarios and what to read first

Different scenarios prioritize different parts of the capacitive sensor non-linearity data set. The table below helps separate what matters most.

How scenario differences change the reading of capacitive sensor non-linearity data

The same non-linearity value can imply very different risk levels depending on the tolerance chain and correction strategy.

• In feedback control, local slope stability may matter more than full-range error.
• In traceable measurement, systematic curve deviation often matters more than repeatability.
• In high-volume automation, recalibration burden may outweigh raw linearity performance.
• In regulated sectors, documentation quality can be as important as the capacitive sensor non-linearity data itself.

This is why advanced evaluation should compare specification format, calibration process, and application loading as a package.

Practical adaptation advice before selecting a sensing solution

A useful review process turns capacitive sensor non-linearity data into a qualification checklist rather than a marketing number.

Recommended evaluation steps

1. Define the true measurement window, not just the maximum travel.
2. Request the non-linearity definition and the raw calibration curve.
3. Check whether the target material matches the intended installation.
4. Compare corrected and uncorrected linearity values.
5. Estimate error contribution inside the full system tolerance budget.
6. Run a validation test at real temperature, mounting force, and electrical noise levels.

For organizations benchmarking ultra-precision components, this method reduces selection bias and supports more defensible technical comparisons.

Common misreadings that distort sensor comparison

Several recurring mistakes cause poor interpretation of capacitive sensor non-linearity data.

• Assuming lower non-linearity always means better application accuracy.
• Ignoring whether the published value uses best-fit linearization.
• Comparing sensors with different target materials and grounding assumptions.
• Overlooking controller effects, filtering, and digital compensation.
• Using resolution as a substitute for linearity.
• Failing to separate systematic error from random noise.

These errors are especially costly in precision engineering programs where hidden measurement bias can delay acceptance, tuning, or regulatory validation.

Next steps for reading capacitive sensor non-linearity data with confidence

Start with the application scenario, then connect the capacitive sensor non-linearity data to operating range, calibration method, environment, and tolerance impact.

If the datasheet lacks curve detail, ask for calibration plots, compensation logic, and validation conditions before making a technical judgment.

For high-accuracy programs, create a short comparison matrix using linearity definition, corrected range, environmental assumptions, and integration constraints.

That process turns capacitive sensor non-linearity data from a confusing specification into a practical decision tool for precision industrial deployment.
