How to assess measurement uncertainty from a precision metrology supplier

A stated accuracy figure is only a starting point. When a precision metrology supplier quotes an uncertainty value, the useful question is whether that value represents the measurement task, the instrument configuration, and the conditions in which the result will be used. A low number obtained on a short, stable artefact in a controlled laboratory may have limited relevance to a large component, a reflective surface, a compliant part, or a production area with changing temperature and vibration.

Assessment should begin by asking for the complete uncertainty statement associated with the proposed measurement. A credible statement identifies the measurand, the measurement range, the measurement method, the confidence coverage, the environmental assumptions, and the factors included in the uncertainty budget. A single line such as “accuracy: 1.5 µm” does not establish whether errors from probing, fixturing, thermal expansion, alignment, software evaluation, or part condition have been considered.

Read the uncertainty statement before comparing specifications

Measurement uncertainty describes the dispersion reasonably associated with a reported value. It is not interchangeable with resolution, repeatability, maximum permissible error, or the smallest increment shown by a display. These values can all look favorable while describing different behavior.

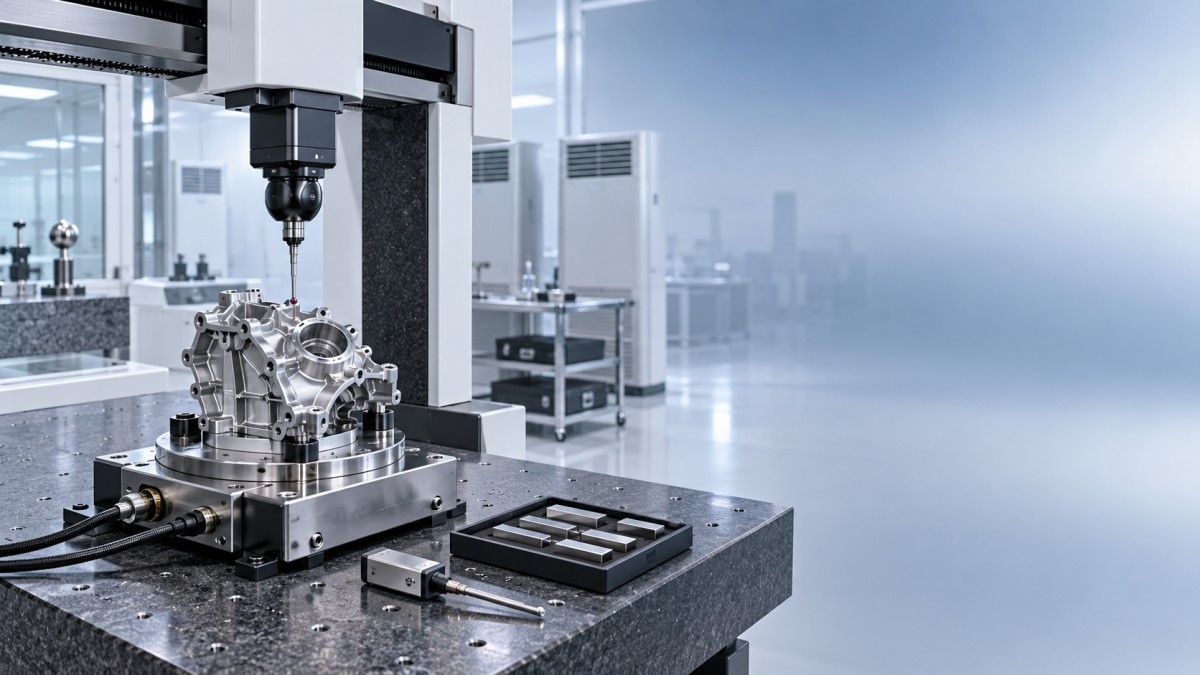

Resolution only tells how finely a system reports position or signal change. A coordinate measuring machine can resolve a very small increment while its full measurement result is influenced by scale errors, probe qualification, squareness, thermal drift, and geometric compensation. Repeatability shows how closely repeated readings agree under similar conditions; it does not show whether the readings are close to the accepted value. Accuracy claims may refer to a defined verification procedure rather than the part measurement of interest.

Ask whether the reported quantity is an expanded uncertainty and how it is expressed. The coverage factor matters because two suppliers may quote numerically similar values at different confidence levels. The basis for the value also matters: uncertainty derived from repeated observations alone can miss systematic contributions unless those contributions are separately evaluated and included.

A useful supplier response distinguishes system verification from application uncertainty. System verification establishes the behavior of the instrument against calibrated artefacts or laser-based references. Application uncertainty estimates the result for a particular feature on a particular part. The second is normally larger because it includes access, surface response, orientation, stylus behavior, datum construction, clamping, and inspection strategy.

Require a budget that exposes the dominant contributors

An uncertainty budget should be understandable enough to reveal what drives the final result. It need not disclose proprietary software or every internal calculation, but it should identify the material sources of variation and the rationale for their treatment. A supplier that only provides a certificate headline leaves no way to assess whether the same result can be reproduced after installation.

For dimensional metrology, the budget often includes reference calibration uncertainty, instrument scale performance, probing or sensor uncertainty, temperature measurement uncertainty, workpiece expansion, alignment, form deviation, software fitting, operator or automated-path variation, and short-term drift. The relevant contributors change with the method. Optical systems introduce focus behavior, magnification calibration, lens distortion, illumination, edge-detection thresholds, surface texture, and reflectivity. Scanning systems bring filtering, point density, registration, line-of-sight limitations, and reconstruction settings into the result.

The wording around correlation deserves attention. Temperature affects both the instrument structure and the measured component; treating related contributions as fully independent can understate the combined uncertainty. Conversely, simply adding all worst-case values may produce a number too conservative to support useful acceptance decisions. The supplier should be able to explain the chosen model, including any correlated inputs and the reason they are treated that way.

Look for a clear definition of the result being claimed. Measuring a hole diameter, a center distance, a profile relative to a datum system, and a freeform surface deviation are different tasks. A probe’s lobing response may be insignificant for one feature and important for another. On an optical instrument, a high-contrast machined edge can be stable while a translucent polymer edge changes position with illumination and threshold settings. The uncertainty statement must follow the feature, not merely the machine category.

Test the environmental assumptions against the intended location

Temperature is frequently the largest unexamined source of error in ultra-precision dimensional work. A component and an instrument do not necessarily share the same temperature, and neither necessarily reaches equilibrium when a measurement begins. A metal workpiece brought from machining, cleaning, or transport can retain a temperature gradient. Measuring its surface temperature at one point does not prove that its internal dimensions have stabilized.

The effect depends on material and length. A long aluminum structure responds differently from a short ceramic component; a mixed-material assembly may change internally even when its average temperature appears acceptable. The issue becomes more complex when dimensions are evaluated relative to a datum frame made from another material. A credible method states the reference temperature, the compensation approach, the temperature sensors used, their placement, calibration status, and the circumstances in which compensation is valid.

Environmental control is broader than room temperature. Air movement can disturb laser paths and alter local thermal conditions. Floor vibration can affect scanning speed, focus stability, or form measurements even where simple length checks remain repeatable. Humidity, contamination, and electrostatic effects can affect optical cleanliness, small forces, and sensitive electronic assemblies. Pneumatic isolation has different value when the source is building vibration than when the dominant disturbance is a nearby machine cycle transmitted through a fixture.

Request evidence from a realistic operating envelope rather than a nominal laboratory condition. This can include warm-up behavior, drift across a shift, repeat measurements after fixture changes, or a controlled study of temperature departure. The purpose is not to demand an unrealistically perfect environment; it is to identify the condition at which the uncertainty statement stops applying.

Traceability must reach the reported feature

Traceability is sometimes reduced to the presence of a calibration certificate. That certificate is necessary, but it is only one link in the chain. The reference used to verify the machine must be traceable through a documented calibration path. The calibration interval, handling condition, uncertainty of the reference, and relevance of the verification geometry also affect the chain.

More importantly, the chain must extend from the reference to the final feature result. A calibrated artefact does not automatically validate a complex inspection routine. Consider a multisensor system measuring a small bore in a component with a polished exterior and a rough internal wall. A traceable length standard may support scale calibration, but the bore result also depends on sensor access, probe calibration, stylus geometry, internal surface response, orientation, and evaluation algorithm. Each transfer step creates another source of uncertainty.

Ask how the supplier verifies the mode that will actually be used. For tactile probing, this may include stylus qualification, probing direction, scanning force, and the effect of extensions. For vision measurement, ask how magnification, lighting, telecentricity, focus, and edge definition are controlled. For laser interferometry, examine refractive-index compensation, beam alignment, air sensing, reflector mounting, and cosine error. For computed tomography or other volumetric techniques, material attenuation, beam-hardening correction, voxel size, reconstruction parameters, and datum extraction may dominate the result.

Separate machine capability from part-handling capability

A highly capable instrument can produce unreliable results when the part is poorly restrained or distorted during setup. Clamping force, support locations, gravity orientation, sealing surfaces, and contact between fixture and datum all influence the measured state. Thin-wall aerospace features, elastomeric seals, medical implant structures, coated substrates, and precision fluid components each present different handling problems.

A fixture should locate the component repeatably without forcing it into a geometry that does not represent its functional condition. The method should state whether inspection occurs free-state, restrained, thermally stabilized, assembled, or under a simulated load. A result obtained in one state should not be compared uncritically with a drawing requirement defined for another.

• For compliant parts, compare repeated loading and unloading cycles rather than relying on a single seated position.
• For thin coated surfaces, determine whether the reported dimension refers to the substrate, the coating outer surface, or an inferred interface; different sensors can respond to these boundaries differently.
• For microfeatures, confirm that stylus diameter, optical spot size, or voxel scale is appropriate for the smallest radius and gap being evaluated.
• Where datum surfaces are rough or interrupted, review the fitting rule and the sampled area. A datum built from a few accessible points can move materially from one program revision to the next.

Program validation should therefore use representative parts, including the difficult geometries that will determine release decisions. A demonstration based only on a gauge block, sphere, or simple machined coupon establishes part of the capability, not the full inspection result.

Examine calibration competence and service continuity

Calibration competence is visible in the detail of the method, the condition of the standards, the treatment of out-of-tolerance findings, and the documentation delivered after service. A useful certificate identifies the instrument or sensor configuration, the reference conditions, measured results, uncertainty, pass criteria where applicable, and traceability information. Generic certificates that do not identify the actual probe, lens, controller, or software configuration are weak evidence for a configured system.

Software changes require particular attention. Compensation tables, probe libraries, algorithms for circle fitting, filtering choices, and reporting templates can change a result without any physical modification to the instrument. Determine how versions are controlled, whether calibration remains valid after updates, and how changes to measurement programs are reviewed. A supplier should also define the action taken when a calibration result is outside tolerance: whether prior results are assessed, how the affected period is identified, and what evidence supports any decision on product status.

Service response affects uncertainty over time. Ask how wear, collision, contamination, sensor replacement, transport, and relocation trigger requalification. A machine that performs well after calibration can drift after a move across a facility or after a change in foundation, compressed-air quality, lighting, or adjacent process equipment. Acceptance should include an installation verification under the final site conditions, followed by a documented baseline for later comparison.

Use decision rules when measurements sit near tolerance limits

When a measurement result lies close to a specification limit, the reported value alone is insufficient for a release decision. The acceptance method must account for uncertainty and state how guard bands are applied. Without a documented decision rule, two identical parts can receive different dispositions when measured by different systems or at different sites.

The required guard band depends on the consequence of a false accept and a false reject, as well as the tolerance width relative to measurement uncertainty. Tightening the acceptance zone can reduce the chance of accepting a nonconforming feature, but it also increases the chance of rejecting a conforming one. That trade-off should be agreed before inspection reports are used for production release, supplier qualification, or dispute resolution.

Ask the precision metrology supplier to demonstrate the full result pathway: part receipt, thermal stabilization, fixture setup, sensor qualification, measurement execution, data evaluation, uncertainty statement, and final reporting rule. The strongest evidence is a method that makes its assumptions visible and remains valid when the part, sensor, environment, or measurement range becomes challenging. A favorable specification without that connection is not yet a reliable basis for acceptance.
