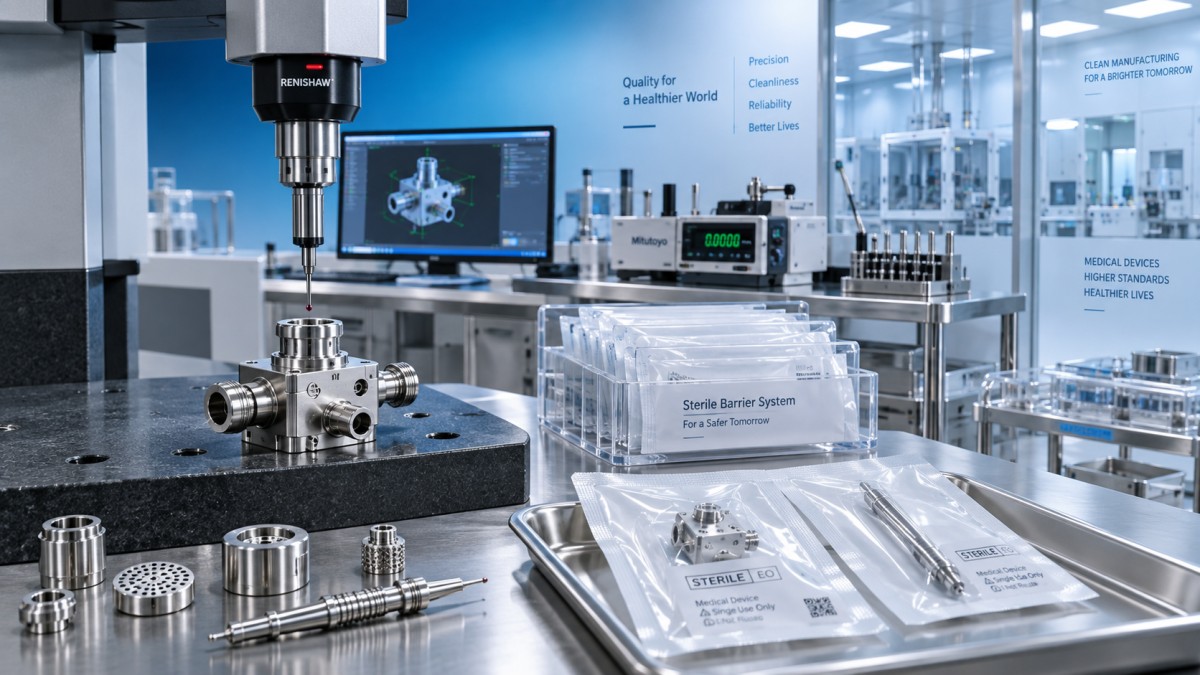

Which ISO standards apply to precision-engineered medical devices?

Precision-engineered medical devices are rarely governed by one ISO standard. The applicable set is determined by the device’s intended use, patient contact, sterility status, software content, measurement strategy, packaging system, and production environment. A micromachined implant component, a precision fluid-control cartridge, and a non-sterile surgical instrument may all require tight dimensional control, yet the standards supporting their safety and conformity differ substantially.

The central framework is usually ISO 13485, supported by ISO 14971. Around those two standards sit more specific requirements for biological evaluation, cleanroom control, metrology, sterilization, packaging, reprocessing, labeling, and product-specific performance. Precision alone does not establish medical-device suitability: a part can meet a drawing tolerance while failing because its surface chemistry, particulate condition, traceability, packaging integrity, or measurement evidence is inadequate.

ISO 13485: the quality management foundation

ISO 13485, Medical devices — Quality management systems — Requirements for regulatory purposes, is the primary management-system standard associated with medical device design and production. It does not prescribe a spindle speed, surface roughness target, or coordinate-measuring-machine routine. Instead, it requires a controlled system capable of producing and documenting conforming devices consistently.

For precision engineering, its practical effect is visible in design transfer, supplier controls, process validation, calibration, nonconforming-product control, change management, and traceability. A dimensional requirement for a miniature cannula, implant interface, valve seat, or threaded fixation component must be connected to a controlled drawing, an approved inspection method, trained personnel, calibrated equipment, acceptance criteria, and retained records. If a finishing process changes from electropolishing to laser texturing, the change cannot be treated as a cosmetic substitution when it can alter corrosion behavior, particulate release, cleanability, fatigue performance, or tissue interaction.

ISO 13485 also distinguishes between verification and validation in a way that matters for ultra-precision work. Verification asks whether the output meets specified requirements, such as diameter, concentricity, profile, or leak rate. Validation addresses whether the finished device performs as intended under its defined conditions of use. A tolerance stack may be verified on every component, while the assembled device still requires functional evidence for flow, deployment force, sealing, optical alignment, articulation, or another intended performance characteristic.

ISO 14971 links engineering tolerances to patient risk

ISO 14971, Medical devices — Application of risk management to medical devices, determines which precision characteristics deserve heightened control and why. It provides the method for identifying hazards, estimating and evaluating risks, implementing controls, and reviewing residual risk throughout the product life cycle.

A narrow tolerance is not automatically a safety-critical tolerance. Its importance depends on the failure mode. A small diameter variation in a non-contact enclosure may be commercially inconvenient; the same variation in a lumen can change fluid resistance, dose delivery, occlusion behavior, or cleaning effectiveness. A burr at the end of a guide feature may be irrelevant in one assembly and hazardous in a device introduced into the body. Risk analysis should therefore connect each critical-to-quality characteristic to a defined hazard or performance failure rather than labeling every tight dimension as critical.

Measurement uncertainty needs to be considered in this connection. When the total permissible tolerance is close to the uncertainty of the inspection method, a reported pass result may not provide the confidence expected by the acceptance decision. The issue is especially acute for small radii, thin-wall features, micro-holes, shallow grooves, flexible parts, and optically difficult surfaces. The risk file, design inputs, and inspection plan should use compatible assumptions about what the measurement result actually establishes.

Dimensional specification and metrology standards

Medical-device standards do not replace the ISO system for geometrical product specification and verification. Where drawings use geometric tolerancing, the relevant ISO GPS standards provide the language needed to avoid disputes between design, machining, inspection, and assembly.

• ISO 1101 defines the indication of geometrical tolerances, including form, orientation, location, and run-out. It is relevant when a feature must be controlled by position, coaxiality-related requirements, profile, flatness, or other geometric characteristics beyond a simple plus/minus size tolerance.
• ISO 8015 establishes fundamental GPS principles, including the default independence principle. This matters when a drawing assumes a relationship between size and form that has not actually been specified. A shaft can meet its diameter limits while still having form error that prevents mating performance.
• ISO 5459 addresses datums and datum systems. It is particularly important for components whose functional alignment depends on fixture location, such as multi-port bodies, optical housings, implant interfaces, and microfluidic assemblies.
• ISO 14253 addresses inspection by measurement of workpieces and measuring equipment, including decision rules when uncertainty is present. A clear decision rule prevents one site from accepting borderline results that another site would reject.
• ISO 10360 applies to acceptance and reverification testing of coordinate measuring systems. Its relevance grows when CMM results are used as release evidence for complex geometry, freeform surfaces, or positional tolerances.

These standards are often overlooked because they are not medical-device-specific. Yet an ambiguous datum scheme or an unsuitable probing strategy can create a false nonconformance or conceal a real one. For example, a compliant CMM may still produce unreliable results when a polished cylindrical feature is measured with an inappropriate stylus, when a thin component deflects under clamping, or when the measurement datum does not reproduce the functional assembly datum.

ISO/IEC 17025 is also relevant when testing or calibration is performed by an external laboratory or internal laboratory operating to an accredited scope. It supports confidence in calibration traceability, measurement capability, method control, and reporting. Accreditation alone does not prove that a particular method is fit for a micrometer-scale feature; the method scope, uncertainty statement, part condition, and sampling approach remain important.

Cleanliness, particulate control, and controlled environments

Precision surfaces can be damaged or functionally altered by residues that are difficult to see. ISO 14644 covers cleanrooms and associated controlled environments. The relevant parts address air cleanliness classification, monitoring, and operational control. It becomes important when particulate contamination, microbial burden, residue, or environmental exposure could affect device performance, assembly yield, sterilization preparation, or patient safety.

A cleanroom classification should not be used as a substitute for a product cleanliness specification. Airborne particle limits describe the environment, while a device may need limits or test methods for loose particles, nonvolatile residue, machining oil, polishing compound, endotoxin, or other product-specific contaminants. A component that remains protected in sealed packaging after precision machining has different exposure concerns from one that is openly assembled before sterilization.

For reusable devices, surface finish and geometry interact with cleaning validation. Blind holes, tight crevices, overlapping assemblies, porous coatings, laser-marked regions, and roughened surfaces can retain soils despite appearing clean after visual inspection. A low roughness value measured on an accessible flat coupon does not demonstrate cleanability throughout a complex component. The relevant evidence must represent the finished geometry, processing residues, and validated cleaning method.

Biocompatibility and material-related standards

ISO 10993, the biological evaluation series for medical devices, applies when materials or components have direct or indirect contact with the body. The required evaluation is based on the nature and duration of contact, the material, manufacturing residues, degradation products, and clinical exposure pathway. It is not a generic test menu that can be copied from one product to another.

Precision manufacturing changes the biological evaluation question when it changes the device surface or introduces residues. Grinding media, passivation chemistry, lubricants, release agents, cleaning agents, adhesive residues, laser processing, coating deposition, and additive-manufacturing powders can all alter the final material state. A medical-grade base alloy is not by itself sufficient evidence for the finished component. The evaluation concerns the final device or a scientifically justified representative configuration, including relevant processing.

For metallic implants and components exposed to body fluids, material composition, corrosion behavior, particulate generation, and surface treatment need to be evaluated together. A highly polished surface and a deliberately textured surface can serve different clinical functions, but neither should be judged only by appearance or nominal roughness. Geometry, wear, contact mechanics, coating adhesion, and sterilization exposure may change the relevant risk profile.

Sterile devices: process, packaging, and microbiological evidence

When a device is supplied sterile, several ISO standards become applicable alongside ISO 13485 and ISO 14971. The sterilization method determines the main standard family.

Sterilization validation cannot be separated from design details. A long narrow lumen may be dimensionally correct yet difficult to expose to the sterilant or difficult to sample during microbiological recovery. Likewise, a precision assembly that uses a low-clearance press fit can retain moisture or cleaning residues. Packaging validation must represent the actual mass, sharp edges, surface finish, protective features, and sealing configuration. A packaging system proven with a smooth surrogate component may not adequately represent a device that can abrade its sterile barrier during transport.

Reusable devices, information supplied, and marking

Reusable surgical instruments and reprocessable accessories require particular attention to ISO 17664, which addresses information to be provided for processing of medical devices. The standard is relevant when cleaning, disinfection, sterilization, drying, inspection, or maintenance instructions are needed between uses. Its engineering implications include access for cleaning, compatibility with processing chemicals, resistance to repeated sterilization cycles, and legibility of permanent markings after reprocessing.

ISO 15223-1 covers symbols used with medical-device information, while ISO 20417 addresses information supplied by the manufacturer. These standards affect labeling, packaging information, handling instructions, warnings, device identification, and traceability content. For miniature or highly finished devices, the marking method deserves separate assessment. Deep mechanical engraving may create stress concentrators; laser marking can change local surface chemistry or corrosion resistance; ink marking can be incompatible with cleaning or sterilization. The selected method must preserve readability without undermining functional or biological requirements.

Selecting the applicable set without over-applying standards

A practical starting point is to map the finished device rather than the individual machining operation. Record its intended use, patient-contact classification, sterile or non-sterile presentation, reusable or single-use status, materials, critical dimensions, interfaces, software or active functions, packaging route, and sterilization or reprocessing exposure. Then identify which standards govern the management system, risk process, product evidence, and test methods for those characteristics.

Standards should be applied at the level of their actual purpose. ISO 13485 does not define biocompatibility acceptance. ISO 10993 does not establish a CMM decision rule. ISO 14644 does not prove device cleanliness. ISO 11135 or ISO 11137 does not prove that a package remains intact throughout distribution. Treating one standard as proof of an adjacent requirement creates documentation gaps that often appear only during investigation of a deviation or design change.

For precision-engineered medical devices, the strongest standards strategy is a linked evidence chain: controlled requirements, risk-based critical characteristics, capable production processes, measurement methods suited to feature scale and geometry, material and cleanliness controls, and validation of the final device state. That chain is more defensible than a long list of standards applied without a clear connection to the device’s actual hazards and performance requirements.
