Alignment Accuracy for Photonics: Tolerance Limits That Affect Yield

The kitchenware industry Editor
2026.05.13

In photonics manufacturing, alignment accuracy for photonics is not just a technical metric—it is a direct driver of yield, reliability, and cost control.

Even small tolerance shifts can raise insertion loss, weaken coupling stability, and create hidden assembly risks.

Across integrated optics, fiber packaging, sensing modules, and laser assemblies, the practical question is simple.

Which tolerance limits truly affect output quality, and which ones only increase process expense without measurable gain?

This guide explains how to evaluate alignment accuracy for photonics, where tolerance matters most, and how to make precision decisions that protect yield.

What does alignment accuracy for photonics actually mean in production?

Alignment accuracy for photonics describes how precisely optical components are positioned relative to a target optical path.

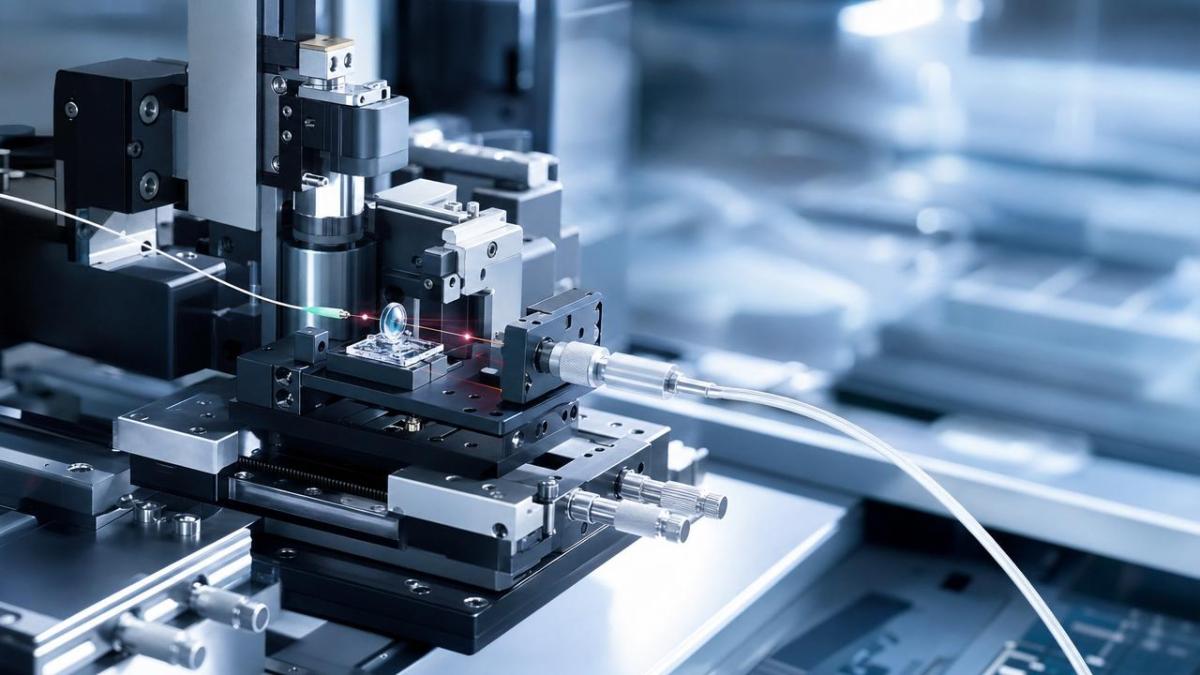

Alignment Accuracy for Photonics: Tolerance Limits That Affect Yield

That target may involve fibers, waveguides, lenses, mirrors, emitters, detectors, or multi-axis packaging structures.

In real production, alignment includes lateral position, vertical offset, angular error, rotational error, and long-term drift after bonding.

A station can appear accurate during active alignment yet fail yield targets after adhesive cure or thermal cycling.

That is why alignment accuracy for photonics must be measured as a process capability, not only as a motion-stage specification.

Three definitions are often confused during equipment selection:

  • Resolution: the smallest motion increment a system can command.
  • Repeatability: how consistently the same point can be reached.
  • Accuracy: how close the final position is to the true target.

For photonic packaging, repeatability and post-bond stability often influence yield more than headline resolution alone.

This distinction is critical when comparing nano-positioning platforms, machine vision systems, and active alignment workflows.

Which tolerance limits have the strongest impact on yield?

Not every tolerance contributes equally to optical performance.

The most sensitive limits depend on mode field diameter, packaging geometry, operating wavelength, and thermal environment.

Still, several tolerance categories consistently drive scrap and rework.

1. Lateral offset

Lateral misalignment often causes the fastest rise in coupling loss.

Single-mode applications are especially sensitive because the optical mode is tightly confined.

A sub-micron shift can move a unit from acceptable yield to reject status.

2. Angular error

Angular deviation changes beam direction and can degrade coupling even when center position appears correct.

This problem is common in lens alignment, collimation assemblies, and edge-coupled photonic devices.

3. Axial distance

Focus depth and standoff distance determine whether the optical interface remains within its power transfer window.

In passive setups, axial variation may become the hidden cause of unstable test results.

4. Drift after fixation

Post-cure movement is one of the most underestimated threats to alignment accuracy for photonics.

Adhesive shrinkage, clamping stress, and coefficient of thermal expansion mismatch can shift a perfect alignment after assembly.

5. Stack-up error

Yield losses rarely come from one source alone.

Fixture tolerances, vision calibration, substrate flatness, and tool wear can combine into a larger total deviation.

When alignment accuracy for photonics is reviewed, cumulative error must be modeled from component loading to final sealing.

How do tolerance needs change across photonics applications?

Tolerance limits should never be copied from one product family to another.

Different architectures carry very different sensitivity profiles.

Fiber-to-chip coupling

This area usually demands the highest alignment accuracy for photonics.

Mode mismatch and tight optical confinement leave little room for lateral or angular error.

Laser diode packaging

Here, thermal drift and active alignment time strongly affect throughput and stability.

A system with fast settling and stable bonding behavior may outperform one with finer nominal resolution.

Imaging and sensing modules

Sensor tilt, lens centering, and focus depth can matter more than sub-micron translational accuracy.

Functional yield depends on the optical stack as a whole.

High-power or aerospace photonics

Mechanical integrity and environmental robustness become essential.

Alignment accuracy for photonics must survive vibration, humidity, and temperature swings, not only laboratory verification.

Application Most Critical Tolerance Main Yield Risk
Fiber-to-chip Lateral offset High coupling loss
Laser packaging Post-bond drift Power instability
Imaging module Tilt and focus Blur and distortion
Harsh-environment optics Thermal stability Field failure

How can you judge whether a precision system is truly adequate?

Brochure values rarely tell the full story.

The right evaluation starts with the process window and the acceptable optical loss budget.

Then each subsystem should be checked against production conditions.

Look beyond stage resolution

A nanometer-class stage does not guarantee effective alignment accuracy for photonics.

Consider encoder quality, servo behavior, structural rigidity, and vibration isolation.

Check measurement traceability

Vision calibration, interferometric verification, and metrology traceability are necessary for reliable tolerance control.

Without traceable measurement, process drift may remain invisible until yield drops.

Test under realistic thermal conditions

Systems should be validated at operating temperature, not only at room conditions.

Thermal expansion can invalidate an apparently safe tolerance budget.

Quantify process capability

Cp and Cpk data are more useful than single demonstration samples.

Stable yield depends on repeatable capability across lots, operators, and production shifts.

  • Define optical acceptance limits before selecting equipment.
  • Map all tolerance contributors in the assembly chain.
  • Verify post-bond alignment, not only pre-bond alignment.
  • Use environmental stress data to confirm long-term stability.

What common mistakes weaken alignment accuracy for photonics?

Several recurring errors create avoidable yield loss.

These issues appear across advanced manufacturing sectors, not only in pure photonics lines.

Mistake 1: Over-specifying one axis

Teams sometimes demand extreme XY precision while ignoring tilt, Z drift, or fixture compliance.

Yield suffers because the wrong variable was prioritized.

Mistake 2: Ignoring adhesive behavior

Bonding materials can cause movement during cure, cooling, or aging.

Alignment accuracy for photonics must include material behavior, not only motion control.

Mistake 3: Treating metrology as separate from assembly

Inline verification should be integrated into the process.

Late inspection detects failure but does not prevent it.

Mistake 4: Chasing laboratory numbers

A trial result under low-volume conditions may not scale to production takt time.

The useful target is manufacturable precision, not isolated peak performance.

Question Short Answer Recommended Check
Is higher resolution always better? No Verify repeatability and stability
Can active alignment remove all risk? No Measure post-fixation shift
Do all products need sub-micron control? No Match tolerance to optical design
Should tolerance be reviewed once only? No Reassess after process changes

How should tolerance strategy balance yield, cost, and implementation time?

The best strategy is not the tightest possible tolerance.

It is the narrowest tolerance that creates measurable business value under real production conditions.

Improving alignment accuracy for photonics usually raises capital cost, integration effort, and validation time.

That investment is justified when better alignment reduces scrap, improves field reliability, or enables higher-performance products.

A practical roadmap includes four steps:

  1. Set the optical loss or functional target.
  2. Translate that target into a full tolerance budget.
  3. Validate each contributor through metrology and pilot runs.
  4. Refine only the variables that materially improve yield.

This method supports disciplined decisions across semiconductor, medical optics, aerospace, and advanced industrial sensing environments.

Alignment accuracy for photonics becomes a strategic control point when it is linked to capability data, not assumptions.

The most effective next step is a structured tolerance review covering motion, metrology, materials, bonding, and environmental stability.

When alignment accuracy for photonics is defined as an end-to-end yield factor, precision investment becomes clearer, faster, and more defensible.
