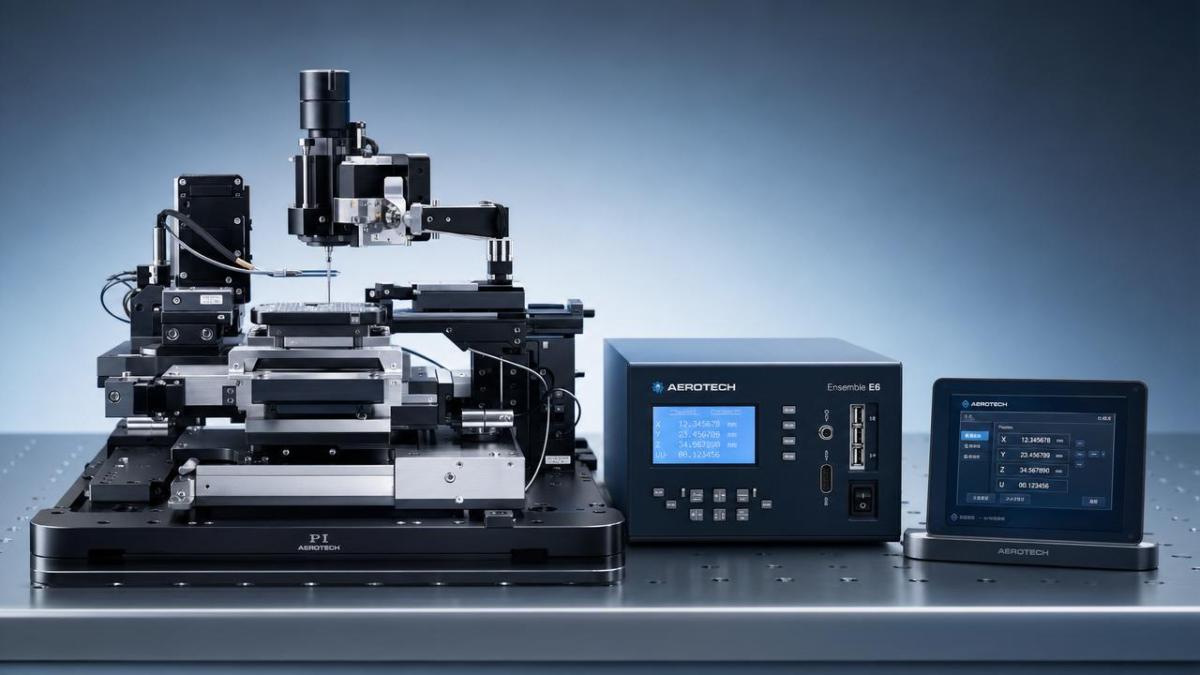

Micro-Manipulation Systems: Cost Drivers and Upgrade Risks

For procurement teams evaluating micro-manipulation systems, cost extends far beyond the initial quotation. Hidden drivers such as positioning accuracy, contamination control, software integration, lifecycle maintenance, and compliance can significantly affect total ownership value. This article outlines the key cost factors and upgrade risks buyers should assess before committing capital, helping organizations reduce technical uncertainty and protect long-term performance.

What procurement teams should understand before buying micro-manipulation systems

Micro-manipulation systems are precision platforms used to move, align, grip, probe, or assemble very small components with controlled motion at micro or nano scale. In practical procurement, this category may include stages, piezo actuators, vacuum-compatible manipulators, probe stations, grippers, controllers, feedback sensors, and motion software.

For buyers in semiconductor, medical device, photonics, aerospace, advanced materials, and research manufacturing environments, the challenge is not simply finding a system that moves. The real question is whether the system can maintain repeatability, contamination discipline, integration stability, and future upgrade paths under production conditions.

This is where many purchasing decisions become risky. A lower quoted system may require costly retrofits for vibration isolation, enclosure redesign, controller replacement, or software revalidation. A higher initial price may actually lower total ownership cost if the architecture supports cleaner integration, better metrology traceability, and fewer process interruptions.

G-UPE supports this decision process by benchmarking ultra-precision systems against practical industrial requirements, not just catalog specifications. For procurement directors, that means comparing motion platforms in the context of standards alignment, export-control awareness, lifecycle supportability, and cross-disciplinary fit with adjacent precision subsystems.

Why the same motion specification can hide very different ownership costs

• A stated resolution value may depend on ideal laboratory conditions rather than factory vibration, thermal drift, or payload variability.
• Controller and software licenses may be separated from hardware pricing, affecting future expansion budgets.
• Cleanroom or vacuum suitability may require different cable materials, lubrication choices, and sealing methods.
• Integration with metrology, robotics, or machine vision may trigger extra engineering work that is not visible in the initial quote.

Which cost drivers matter most in micro-manipulation systems?

When evaluating micro-manipulation systems, procurement teams should separate visible purchase price from operational cost. The most influential drivers usually come from motion architecture, environmental compatibility, controls, serviceability, and compliance obligations. The table below summarizes the factors that most often change budget reality after the purchase order is placed.

For procurement teams, this table highlights a key truth: micro-manipulation systems should be budgeted as precision infrastructure, not as isolated hardware. A system that appears inexpensive at quoting stage can become costly if it requires later changes to software, metrology, enclosures, or contamination control.

Five hidden cost areas that are often missed

1. Acceptance testing mismatch. Factory acceptance criteria may not reflect real process tolerances or temperature conditions at the buyer site.
2. Cable and connector wear. In high-cycle motion systems, cable routing and connector quality can affect uptime more than the stage body itself.
3. Software validation effort. In regulated or traceable environments, control software changes may require document updates and operational requalification.
4. Environmental support equipment. Air supply quality, vacuum pumps, vibration isolation, or thermal stabilization may be external but necessary.
5. Operator training and process tuning. High-resolution systems can underperform when teams are not trained on settling time, load centering, and maintenance routines.

How do different micro-manipulation system architectures change procurement risk?

Not all micro-manipulation systems carry the same upgrade profile. Architecture choices influence precision, contamination behavior, speed, travel range, and integration flexibility. Buyers should compare them by intended duty cycle and process sensitivity rather than by headline resolution alone.

The comparison below helps procurement teams frame trade-offs among common motion approaches used in precision assembly, inspection, probing, and handling applications.

The procurement lesson is straightforward. When future automation, contamination limits, or metrology traceability matter, architecture lock-in becomes a major risk. G-UPE’s benchmarking approach is useful here because it connects motion-system selection to adjacent systems such as metrology, fluid control, coating environments, and high-purity process requirements.

Where upgrade risks usually appear

• A controller supports current axes but not future expansion into synchronized multi-axis motion.
• A cleanroom-capable system is later moved into vacuum service and cannot meet outgassing expectations.
• An imported stage cannot be serviced quickly because spare parts and export documentation were not considered at sourcing stage.
• The original software environment does not communicate cleanly with machine vision, MES, or metrology databases.

What should buyers verify in technical performance claims?

Procurement often receives specification sheets filled with resolution, repeatability, straightness, settling time, and load capacity values. These numbers matter, but only when test assumptions are clear. Micro-manipulation systems should be reviewed under the real load, duty cycle, environment, and calibration discipline expected in production or critical lab operations.

Key specification questions to ask suppliers

• At what payload, travel range, and temperature was repeatability measured?
• Is the stated resolution encoder-based, sensor-interpolated, or software-commanded?
• What settling time is achieved after a realistic move, not only under very short travel conditions?
• Does the system require external isolation or granite mounting to meet published figures?
• How often should calibration or performance verification be repeated in continuous use?

For precision-oriented sectors, performance verification should also be linked to international reference frameworks where relevant. Depending on application, buyers may need to consider ISO-aligned calibration practice, SEMI-related contamination expectations in electronics manufacturing, IEEE-related control and sensing interfaces, or internal quality protocols tied to regulated production.

G-UPE adds value by placing these metrics in a cross-functional context. A positioning stage is rarely used alone. Its real value depends on how it behaves with CMM or optical metrology, with specialty coatings and sensitive surfaces, with fluidic dispensing, or within high-purity process zones where even minor contamination can damage yield.

How to build a safer procurement framework for micro-manipulation systems

A disciplined sourcing framework reduces both technical and commercial surprises. Instead of comparing quotes line by line, procurement teams should compare use cases, lifecycle assumptions, and upgrade compatibility. This is especially important in multinational manufacturing groups where one purchase may become a platform standard across multiple facilities.

Recommended supplier evaluation workflow

1. Define the application boundary. Clarify payload, travel, cleanliness, throughput, compliance expectations, and integration targets.
2. Separate mandatory from preferred specifications. This prevents overspending on unnecessary precision while protecting non-negotiable process constraints.
3. Request evidence, not only brochures. Ask for test conditions, maintenance schedules, software architecture details, and spare-part policies.
4. Review upgrade path and obsolescence risk. Check controller roadmap, compatibility with future axes, and regional service coverage.
5. Model total cost of ownership. Include validation, operator training, downtime exposure, and environmental support equipment.

For organizations buying across different advanced manufacturing domains, G-UPE’s institutional scope is particularly relevant. Because its intelligence spans coatings, precision fluid control, metrology, ultra-high purity chemicals and gases, and micro-manipulation systems, procurement teams can assess whether a motion platform will remain compatible with future process upgrades rather than evaluating it in isolation.

A practical checklist before issuing the purchase order

• Confirm whether the quoted system includes controller, software licenses, cables, mounting hardware, and calibration documents.
• Verify contamination suitability for cleanroom, vacuum, biological, optical, or semiconductor-related use.
• Ask for the lead time of critical spares such as sensors, amplifiers, connectors, or specialized bearings.
• Review whether export-control or cross-border service constraints could delay commissioning or future repair.
• Check if acceptance criteria will be measured at supplier site, buyer site, or both.

Common procurement mistakes, upgrade misconceptions, and FAQs

Micro-manipulation systems are often purchased under time pressure, especially when tied to line expansion, new product introduction, or lab-to-production transfer. That urgency can lead to assumptions that later prove expensive. The questions below address frequent concerns raised by procurement and technical sourcing teams.

Does higher resolution always mean a better system?

No. Resolution alone does not guarantee stable process performance. Procurement should weigh repeatability, drift behavior, stiffness, settling time, contamination profile, and software reliability. In many applications, a balanced system with controlled repeatability and easier maintenance delivers better value than a theoretically finer platform that is difficult to stabilize.

When should buyers worry about upgrade risk?

Upgrade risk matters whenever the system may later need more axes, tighter cleanliness, new controller interfaces, vision integration, or validation under a different quality regime. If the project roadmap is likely to evolve within two to five years, buyers should treat modularity and software openness as financial safeguards, not optional extras.

Are manual micro-manipulation systems still relevant for industrial buyers?

Yes, for low-volume R&D, prototyping, failure analysis, and exploratory process work. They can reduce upfront cost and speed deployment. However, procurement should avoid using manual platforms as long-term substitutes for automated systems where repeatability, throughput, traceability, or cross-site standardization are required.

What is the most underestimated total cost item?

Software and integration validation are often underestimated. A motion system may technically function, yet still create delays if communication protocols, recipe management, user access control, or data traceability do not fit the buyer’s digital environment. In regulated or quality-critical operations, this gap can cost more than the hardware premium initially avoided.

How long should procurement plan for implementation?

Timing depends on customization level, environmental qualification, and control-system integration. Standard units may be faster, while vacuum-compatible, contamination-sensitive, or multi-axis synchronized platforms usually require longer engineering, testing, and acceptance cycles. Buyers should request a timeline that separates manufacturing lead time from integration and qualification time.
