For project managers overseeing ultra-precision systems, stiffness and damping calculation is fundamental to achieving stable micro dynamics, predictable performance, and lower integration risk. This article outlines how these parameters influence motion stability, vibration control, and system reliability, helping decision-makers align technical design choices with production accuracy, compliance targets, and long-term operational efficiency.

Why does stiffness and damping calculation matter so much in ultra-precision projects?

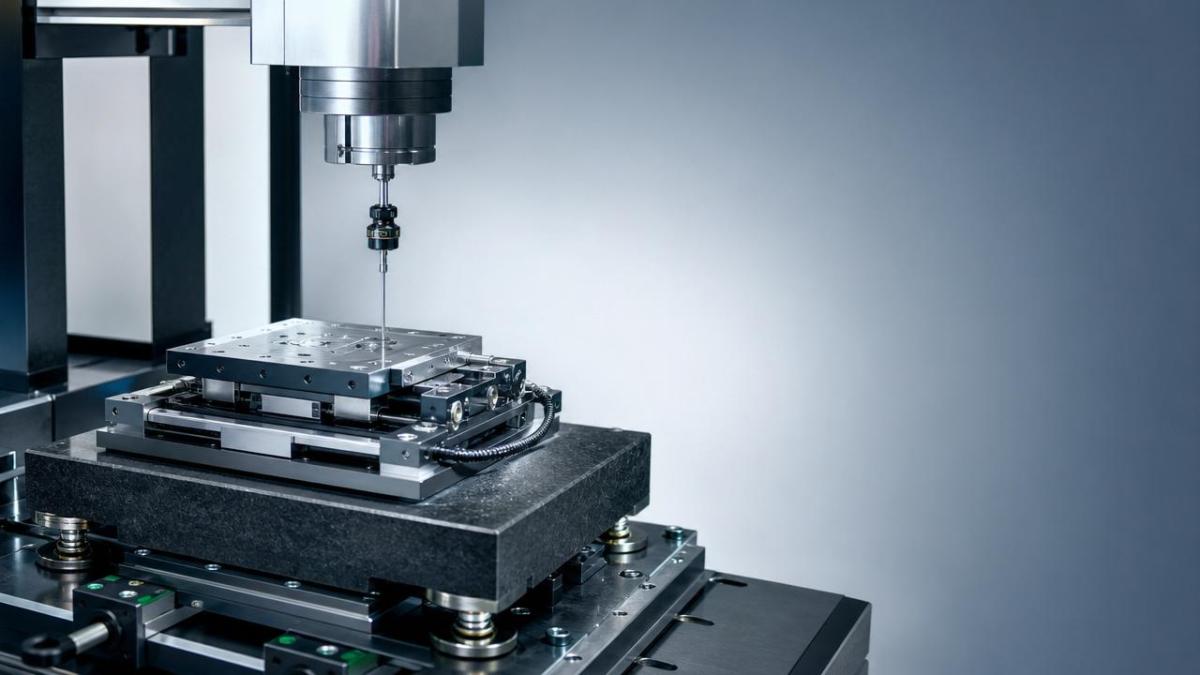

Stiffness and Damping Calculation for Stable Micro Dynamics

In ultra-precision engineering, small dynamic errors create large downstream consequences. A positioning stage that vibrates for milliseconds too long can reduce wafer yield, distort metrology output, or destabilize micro-assembly tasks.

That is why stiffness and damping calculation is not only a design topic. It is also a project control issue that affects supplier selection, installation planning, acceptance criteria, and life-cycle cost.

For project leaders, the challenge is practical. One team may optimize static rigidity, another may focus on servo tuning, while procurement compares quotes that hide major differences in structural behavior.

  • Higher stiffness generally improves resistance to deformation under load, which supports geometric accuracy, repeatability, and faster settling in controlled motion systems.
  • Adequate damping reduces oscillation amplitude and decay time, helping systems recover from disturbances such as acceleration changes, pneumatic pulses, floor vibration, or tooling contact.
  • Poor balance between the two can create hidden risk: a rigid but weakly damped structure may ring, while a heavily damped but compliant structure may drift or lose bandwidth.

G-UPE addresses this gap by benchmarking motion platforms, fluid control subsystems, metrology chains, coatings equipment, and micro-positioning assemblies against internationally recognized engineering practices. That cross-disciplinary view matters because stable micro dynamics is rarely solved by one component alone.

What project risks are most often linked to weak dynamic modeling?

The most common risk is assuming that catalog specifications guarantee system stability. In reality, stiffness and damping calculation must reflect the assembled machine, including joints, mounts, payload variation, pneumatic lines, cable forces, and environmental vibration.

  • Unexpected resonance after installation
  • Slow settling time that limits throughput
  • Metrology mismatch between design assumptions and operating reality
  • Repeated tuning cycles that delay commissioning
  • Higher scrap or rework due to micro-motion instability

How should project managers interpret stiffness and damping calculation in practical terms?

The engineering formulas may be handled by design teams, but project managers still need a decision framework. The goal is to connect stiffness and damping calculation to measurable business outcomes such as process capability, ramp-up speed, maintenance intervals, and supplier accountability.

A useful starting point is to separate static behavior from dynamic behavior. Static stiffness describes how much a structure deflects under load. Dynamic performance adds mass, excitation frequency, damping ratio, and control response.

The table below translates key parameters into project language, making stiffness and damping calculation easier to evaluate during design reviews and technical procurement discussions.

Parameter What it indicates Why project managers should care
Static stiffness Resistance to deformation under applied force Affects alignment stability, load capacity, and geometric accuracy during operation
Natural frequency The frequency at which the structure prefers to vibrate Determines risk of resonance with machine motion, floor input, or process excitation
Damping ratio Rate at which vibration decays after disturbance Influences settling time, throughput, and repeatability in precision moves
Mode shape How different parts of the system move during vibration Helps identify weak joints, frame coupling, and sensor placement issues

This interpretation reduces a common procurement mistake: comparing equipment only by travel range, nominal accuracy, or price without validating dynamic stability under real operating loads.

A simple decision lens for non-specialists

  1. Ask what disturbance the system must survive: acceleration, thermal drift, air pressure fluctuation, tooling impact, or external vibration.
  2. Confirm what displacement or settling limit the process can tolerate, not only what the actuator can theoretically achieve.
  3. Require evidence showing stiffness and damping calculation at subsystem and integrated system level.

Which application scenarios demand tighter stiffness and damping calculation?

The importance of stiffness and damping calculation increases when micron-level or sub-micron behavior determines process success. G-UPE’s five industrial pillars reveal that the same dynamic principles apply across different sectors, but the critical triggers vary.

The following comparison helps project teams identify where dynamic analysis deserves earlier budget allocation and stricter supplier review.

Application area Typical dynamic concern Procurement and project implication
Micro-manipulation and nano-positioning Overshoot, settling delay, cross-axis coupling Demand integrated stage, sensor, and controller validation rather than actuator-only claims
CMM and multi-sensory metrology Probe vibration, frame deflection, environmental excitation Check base isolation, structural stiffness, and calibration strategy under operating conditions
Precision pneumatic and fluid control Pressure ripple, valve response oscillation, line compliance Review tube length, actuator mass, regulator stability, and contamination control together
Thin-film deposition and coating platforms Vibration transfer into substrate handling and chamber alignment Validate transport mechanism stiffness and damping alongside contamination and vacuum constraints

Across these scenarios, project delays often come from subsystem isolation. A stage may be stable on a supplier bench but unstable once installed on a lighter frame, connected to flexible utilities, or exposed to nearby equipment vibration.

Scenario-specific warning signs

  • If throughput goals require faster acceleration, revisit stiffness and damping calculation before approving the motion profile.
  • If payloads will change between products, ask how modal behavior shifts across the full operating envelope.
  • If the process involves gas, fluid, or thermal interaction, check whether coupling effects were considered in the system model.

How can teams compare design options without oversimplifying the physics?

Many projects compare options such as granite versus metal frames, air bearings versus mechanical guides, passive damping versus active control, or pneumatic actuation versus piezoelectric motion. These choices affect dynamic stability in different ways.

A disciplined comparison should not ask which technology is universally better. It should ask which option best supports the required stiffness and damping calculation under the actual process constraints.

Comparison criteria that matter

  • Structural loop stiffness from tool point to base, not only component stiffness in isolation
  • Damping source, whether material, interface, external damper, controller, or process medium
  • Sensitivity to thermal change, contamination limits, and maintenance environment
  • Compatibility with ISO, SEMI, IEEE, or customer-specific documentation requirements where applicable

The table below supports option review by linking dynamic trade-offs to implementation realities that project managers usually face.

Option type Dynamic strength Project trade-off to verify
Very rigid frame with low inherent damping High resistance to static deflection May require additional vibration treatment or control tuning to avoid ringing
Moderately stiff structure with passive damping elements Improved decay of disturbance energy Must verify whether added damping reduces bandwidth or introduces long-term material variability
Active control with high-resolution feedback Can suppress certain dynamic errors in operation Needs careful integration because control cannot fully compensate for a weak mechanical foundation
Pneumatic actuation in precision handling Clean force delivery in many process environments Line compliance and pressure dynamics can alter effective stiffness and damping if not modeled properly

This kind of structured comparison improves cross-functional decisions. Engineering sees the physical trade-offs, procurement sees technical differentiation, and management sees where schedule and risk are truly located.

What should be included in a procurement checklist for stiffness and damping calculation?

When projects move fast, suppliers often provide partial data. To avoid expensive ambiguity, procurement and engineering should use a shared checklist that requests not only nominal performance but also test conditions, model assumptions, and integration limits.

Recommended checklist

  1. Request the load case used for stiffness and damping calculation, including payload, mounting method, and environmental assumptions.
  2. Confirm whether values are simulated, experimentally measured, or correlated from both methods.
  3. Ask for natural frequency ranges and dominant mode shapes relevant to the installed configuration.
  4. Review compatibility with adjacent systems such as vacuum hardware, fluid lines, metrology sensors, and cable management.
  5. Define acceptance criteria for settling time, repeatability, and disturbance recovery before purchase order release.
  6. Check documentation needs tied to export controls, regulatory updates, and international project specifications.

This is where G-UPE adds practical value. Because the organization tracks technical benchmarks, standards alignment, and global industrial intelligence across multiple precision sectors, it helps project teams avoid evaluating dynamic performance in isolation from compliance and sourcing realities.

Where do cost, schedule, and compliance intersect?

Project managers rarely have unlimited budget. The temptation is to reduce cost by choosing simpler structures or postponing dynamic validation until commissioning. In many precision applications, that creates hidden cost rather than savings.

A weak stiffness and damping calculation process often leads to redesign, lower throughput, stricter maintenance routines, or additional isolation hardware. These corrections usually cost more after factory acceptance than during concept review.

Common cost drivers

  • Extra tuning time during site acceptance and process ramp-up
  • Replacement of mounts, frames, or utility routing that should have been modeled earlier
  • Metrology drift investigation caused by structural vibration rather than sensor quality
  • Delayed qualification when documentation does not link performance claims to recognized standards and test conditions

From a compliance perspective, projects in semiconductor, medical, aerospace, and advanced manufacturing environments often require more than performance claims. Teams need traceable assumptions, documented methods, and alignment with widely accepted engineering practices such as ISO-based measurement discipline, SEMI-related semiconductor expectations, or IEEE-relevant technical references depending on the system context.

What mistakes do teams make most often?

Mistake 1: treating stiffness as enough on its own

A structure can be very stiff and still behave poorly if damping is insufficient. In fast motion systems, low damping may cause ringing that lengthens settling time and reduces effective throughput.

Mistake 2: using vendor data without installation context

Bench-top results do not automatically transfer to the production floor. Cable drag, utility stiffness, support frame design, and nearby equipment can alter micro dynamics substantially.

Mistake 3: separating metrology from motion design

Measurement systems are part of the dynamic loop. If sensor mounting, reference frame, or probe interaction is ignored, the stiffness and damping calculation may describe the wrong structure.

Mistake 4: waiting too long to involve cross-disciplinary review

Ultra-precision performance often depends on coatings, fluid behavior, metrology, gas purity environment, and micro-positioning together. G-UPE’s multidisciplinary architecture is valuable because many failures occur at these interfaces rather than inside a single component.

FAQ: questions project managers often ask about stiffness and damping calculation

How early should stiffness and damping calculation be reviewed in a project?

It should start during concept selection, before layout and supplier commitment are fixed. Early review prevents later conflict between throughput targets, structural limits, and contamination or compliance constraints.

What data should suppliers provide for meaningful evaluation?

Ask for load assumptions, mounting conditions, modal information, damping estimates, test or simulation method, and expected settling performance. Without that context, a quoted value has limited decision value.

Is active control enough if the structure is mechanically weak?

Usually no. Control improves performance within limits, but it does not replace a sound mechanical design. Stable micro dynamics typically require both adequate structural stiffness and well-characterized damping.

Which scenarios justify third-party benchmarking or technical intelligence support?

Support is especially useful when the project crosses industries, includes export-sensitive supply chains, involves multiple precision subsystems, or requires verification against international standards and buyer qualification rules.

Why choose us for ultra-precision benchmarking and decision support?

For complex procurement and engineering programs, stiffness and damping calculation should be reviewed together with metrology, motion architecture, fluid behavior, coatings environment, purity requirements, and compliance exposure. That is the advantage of working with G-UPE.

G-UPE combines technical benchmarking with commercial intelligence across Specialized Coatings & Thin-Film Deposition, Precision Pneumatic & Fluid Control, CMM & Multi-Sensory Metrology, Ultra-High Purity Chemicals & Electronic Gases, and Micro-Manipulation & Nano-Positioning Systems.

If your team is evaluating a new platform or recovering a delayed project, you can consult us for parameter confirmation, stiffness and damping calculation review, supplier comparison, delivery risk assessment, standards alignment, customization scope, sample-support planning, and quotation communication.

A focused technical discussion early in the project can reduce redesign cycles and clarify which specifications are genuinely critical. For project managers responsible for accuracy, schedule, and procurement confidence, that is often the difference between nominal performance and stable production reality.
