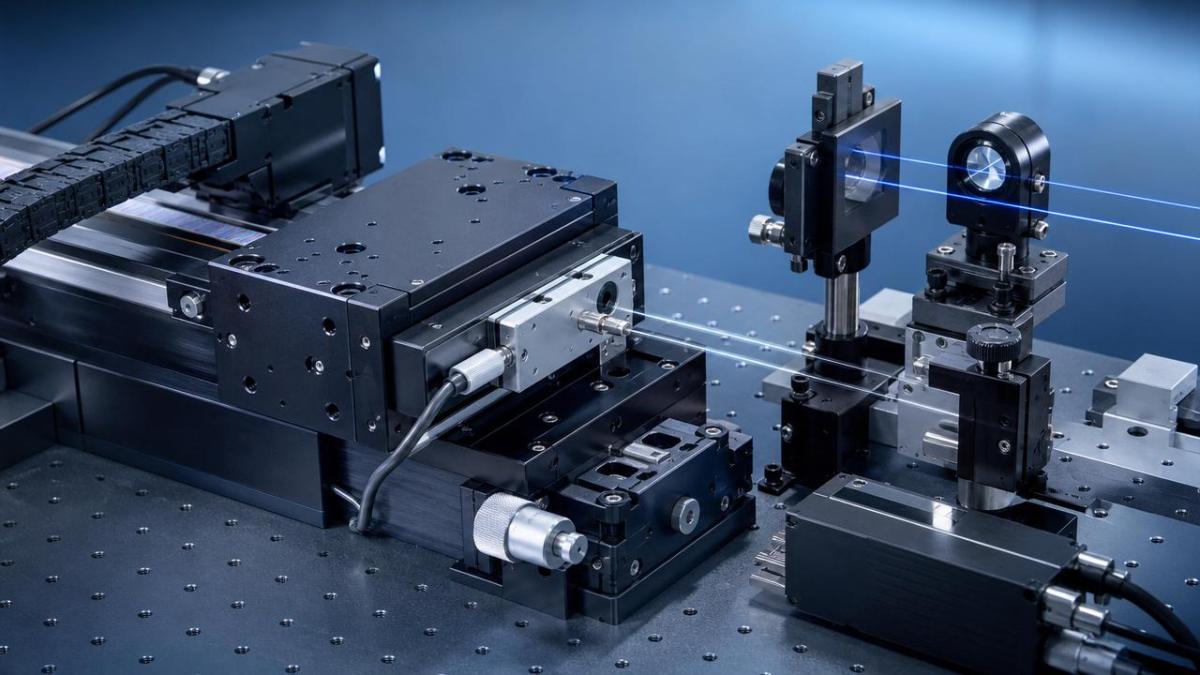

Positioning Encoder Resolution Data: What Really Affects Accuracy

For technical evaluators comparing motion systems, positioning encoder resolution data is often treated as a shortcut to accuracy. That shortcut is risky. Resolution describes the smallest reported increment, not the true closeness to target position.

Actual positioning performance depends on the whole measurement chain. Interpolation, signal quality, mounting geometry, thermal behavior, servo tuning, and structural dynamics all shape the final error budget.

In precision engineering, especially across metrology, semiconductor tools, medical devices, and aerospace assemblies, misunderstanding positioning encoder resolution data can distort benchmarking, acceptance testing, and supplier comparison.

Why a Checklist Matters When Reading Positioning Encoder Resolution Data

A single encoder figure cannot represent system accuracy. Vendors may publish impressive nanometer or sub-micron counts, while unstated error sources dominate real motion results under operating conditions.

A checklist prevents one common mistake: equating digital granularity with mechanical truth. It also helps normalize comparisons between linear encoders, rotary encoders, interpolated scales, and closed-loop stage assemblies.

For cross-industry benchmarking, this approach is practical. It aligns specification review with ISO-style verification thinking, where repeatability, uncertainty, and traceable measurement conditions matter as much as nominal resolution.

Core Checklist for Interpreting Positioning Encoder Resolution Data

1. Verify whether the published value is native sensor pitch or interpolated output resolution, because interpolation can create finer counts without proportionally improving absolute positioning accuracy.
2. Check the stated accuracy separately from resolution, including scale accuracy, cyclic error, and measurement uncertainty over the full travel rather than over a short demonstration range.
3. Review signal quality metrics such as amplitude balance, phase offset, and noise floor, since poor analog waveforms often produce unstable fine-count behavior during motion.
4. Examine installation tolerances for gap, parallelism, yaw, pitch, and roll, because encoder mounting errors can convert good laboratory specifications into poor in-machine performance.
5. Confirm thermal coefficients of the scale, machine frame, and work zone, because differential expansion can overwhelm favorable positioning encoder resolution data during long cycles.
6. Inspect servo-loop bandwidth, following error, and controller filtering, since a motion system may display tiny count increments while lagging behind commanded position under load.
7. Compare repeatability and bidirectional accuracy, because backlash, friction, and compliance may create different arrival positions even when encoder count resolution appears extremely fine.
8. Ask how the data was validated, including laser interferometer correlation, environmental controls, and standards traceability, so the specification can support credible technical benchmarking.
9. Assess vibration sensitivity and structural resonance, because a high-resolution encoder cannot correct measurement corruption created by unstable machine bases or dynamic stage behavior.
10. Review contamination tolerance, especially in fluids, powders, and cleanroom transitions, since optical or magnetic encoder performance can degrade before the control system reports a fault.

What Really Affects Accuracy Beyond the Encoder Number

Interpolation quality

Many impressive positioning encoder resolution data values are interpolation products. If sinusoidal signals are imperfect, interpolation magnifies phase error, cyclic error, and quantization artifacts rather than delivering true metrology-grade accuracy.

Signal noise and electronics

Cable routing, grounding, amplifier design, and electromagnetic interference all affect encoder output stability. In mixed-equipment environments, electronic noise often explains position jitter better than the encoder datasheet does.

Mechanical alignment

Encoder scales and read heads require strict geometric alignment. Small angular or offset errors can distort signal quality, create periodic error, and reduce the practical value of fine positioning encoder resolution data.

Thermal drift

Thermal stability is often the largest hidden variable. A system with modest resolution but excellent thermal control may outperform a finer-count system exposed to machine heat, process heat, or ambient swings.

Control-loop behavior

The controller decides how measured position becomes corrected motion. Poor tuning, aggressive filtering, or actuator saturation can leave residual errors that no encoder resolution figure can erase.

Application Notes Across Precision-Driven Sectors

Semiconductor and advanced electronics tools

In wafer handling, lithography subsystems, and inspection stages, positioning encoder resolution data matters only when coupled with thermal management, vibration isolation, and interferometric verification.

Fine encoder counts are valuable, but air turbulence, cable heating, and stage dynamics often become larger contributors to overlay or placement error than nominal encoder increment size.

Medical and biofabrication platforms

Dispensing systems, implant machining, and micro-manipulation devices require stable low-speed motion. Here, smoothness, repeatability, and low noise may matter more than headline positioning encoder resolution data.

Small force disturbances, sterilization-related thermal cycles, and compact mechanical layouts can expose encoder mounting sensitivity that standard catalog data does not show.

Aerospace and high-reliability assemblies

For drilling, fastening, alignment, and composite inspection systems, reliability under shock, contamination, and long maintenance intervals is critical. Resolution claims must be reviewed alongside durability and calibration retention.

A slightly coarser but robust encoder architecture may provide better lifetime positioning confidence than a fragile high-interpolation design operating near its environmental limits.

Commonly Overlooked Risks

Confusing display resolution with metrological accuracy

A controller can display many decimal places. That does not prove the axis can physically achieve or verify those increments under load, speed, and environmental variation.

Ignoring Abbe error and measurement offset

If the measurement axis is displaced from the functional point, small angular motion produces large linear position error. Excellent positioning encoder resolution data cannot cancel poor metrology geometry.

Accepting short-stroke test data as full-stroke truth

Performance over a few millimeters may hide cumulative scale error, straightness effects, and thermal growth. Always ask how accuracy changes across the entire working envelope.

Overlooking service drift

Contamination, cable fatigue, adhesive creep, and bearing wear can slowly degrade encoder behavior. Initial benchmark data should never be treated as permanent field performance.

Practical Execution Steps

• Request a specification matrix separating resolution, accuracy, repeatability, cyclic error, and test conditions instead of accepting a single encoder headline value.
• Correlate encoder claims with independent measurement, ideally laser interferometry or traceable calibration records under controlled environmental conditions.
• Review the complete motion stack, including mechanics, servo drive, controller filters, cable management, and thermal design, before ranking systems by resolution.
• Define application-specific acceptance criteria such as settling time, bidirectional error, drift over time, and behavior at process speed or payload.

Summary and Next Action

Positioning encoder resolution data is useful, but only as one layer in a larger accuracy assessment. True performance emerges from the interaction of sensor physics, electronics, mechanics, environment, and control strategy.

A disciplined checklist turns specification reading into technical due diligence. It reduces false equivalence between systems and improves benchmarking across precision-critical industrial applications.

The next step is simple: build a comparison sheet that isolates resolution from verified accuracy, installation limits, thermal behavior, and validation method. That is how positioning encoder resolution data becomes decision-grade evidence rather than marketing shorthand.
