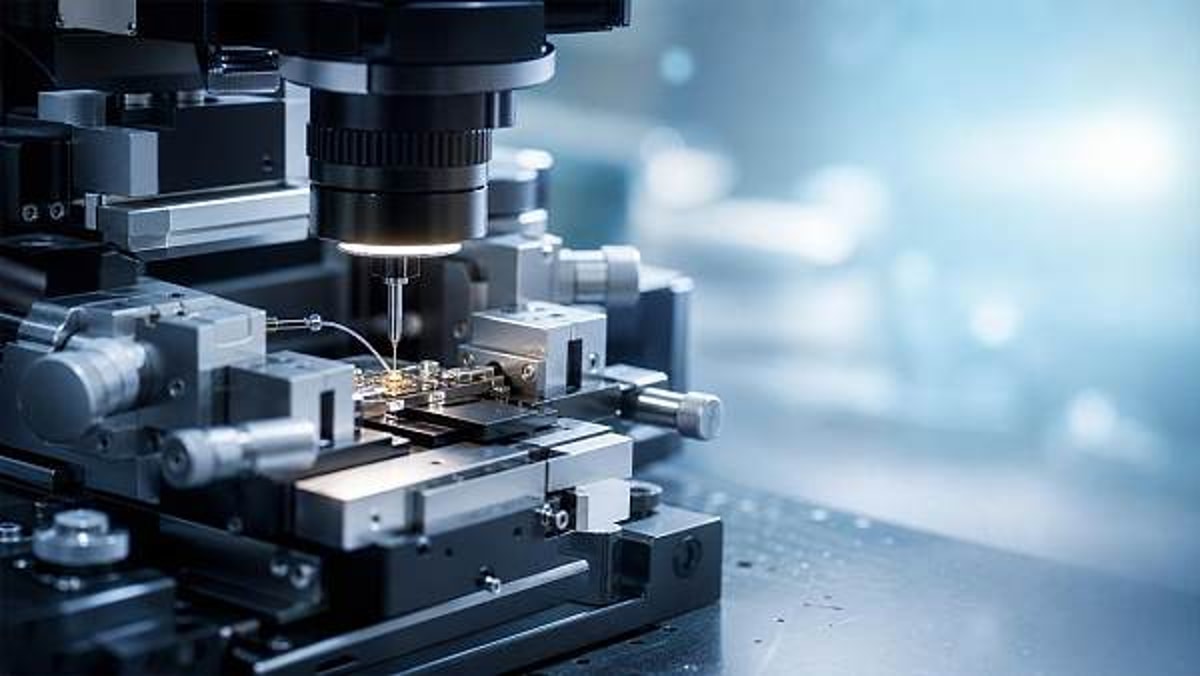

Alignment Accuracy for Photonics: Tolerance Limits That Change Yield

In photonics manufacturing, alignment accuracy for photonics is not just a technical metric—it is a direct driver of yield, throughput, and project risk. For project leaders managing tight tolerances, understanding where alignment limits begin to impact coupling efficiency, assembly repeatability, and cost control is essential. This article examines the tolerance thresholds that most influence production outcomes and procurement decisions.

For most project managers and engineering leads, the core search intent behind this topic is practical rather than academic: they want to know how much alignment error is acceptable before yield drops, rework rises, or automation becomes unstable. They are not looking for a generic optics lesson. They need decision-grade guidance that connects microns, arcseconds, and drift behavior to schedule confidence, supplier capability, and unit economics.

The most useful answer is also the most direct one: tolerance limits matter when they begin to change coupling efficiency, assembly repeatability, thermal stability, and inspection pass rates in ways that are visible at production scale. In other words, the “right” alignment accuracy is not the smallest value a vendor can quote. It is the accuracy level that protects your target yield with a realistic process window.

What project leaders are really asking when they evaluate alignment accuracy for photonics

When procurement teams, NPI managers, or manufacturing program owners evaluate a photonics assembly process, they usually care about four questions. First, what alignment tolerance is required for the optical design to perform as specified? Second, can that tolerance be held repeatedly across shifts, lots, and suppliers? Third, what does that capability cost in equipment, cycle time, and maintenance? Fourth, what happens to yield if the real process drifts beyond the nominal target?

These questions explain why alignment accuracy for photonics should never be discussed as a single static number. A process may achieve excellent best-case alignment in a laboratory environment yet fail commercially because of poor repeatability, cure shift, vibration sensitivity, or thermal drift. For project decision-making, repeatable production accuracy is more valuable than peak demonstration accuracy.

That distinction is especially important in edge coupling, fiber attach, laser-to-waveguide alignment, micro-optics placement, and PIC packaging. In these applications, the alignment budget is often shared across component tolerances, stage performance, bonding behavior, and post-assembly environmental change. A supplier claiming “sub-micron alignment” may still expose your program to risk if that figure excludes bond-line movement or long-term stability.

Where tolerance limits begin to change yield

The yield impact of alignment errors usually follows a nonlinear pattern. Small deviations may have little visible effect at first, especially when the optical mode field is relatively forgiving. But once the process approaches the edge of the coupling window, a very small extra shift can produce a disproportionate drop in optical power, insertion loss, or channel uniformity. This is the point where tolerance limits start changing yield rather than simply affecting technical elegance.

For single-mode photonics, the cliff can be steep. Lateral misalignment, axial spacing error, and angular offset all influence coupling efficiency, but not equally in every design. In many assemblies, lateral offset is the most sensitive variable, while in others angular error becomes dominant because of lens geometry or beam divergence. The practical lesson for project leaders is clear: do not approve alignment specifications based only on one-axis accuracy claims. Ask for the full multi-axis sensitivity profile.

A useful way to think about yield is to separate three zones. In the safe zone, the process operates comfortably inside the optical tolerance window, so normal variation does not materially affect output. In the watch zone, the assembly still passes, but drift, adhesive movement, or fixture wear can begin to push marginal units out of spec. In the loss zone, the process no longer has enough margin, and yield degradation accelerates. Strong programs are built to stay in the safe zone, not merely to hit nominal alignment once.

This framework is important for budgeting and schedule control. A line that operates near the watch zone may appear acceptable during qualification, yet later suffer from rework spikes, difficult root-cause analysis, and vendor disputes. Managers often discover too late that their real problem was not component quality but an alignment tolerance stack with insufficient process margin.

Which alignment parameters matter most in production

In production photonics, several tolerance categories tend to drive outcomes more than abstract stage resolution figures. The first is absolute placement accuracy, meaning how close the component is positioned to the intended optical target. The second is repeatability, which often matters more because yield depends on doing the same thing thousands of times, not once. The third is stability over time, including thermal drift, adhesive shrinkage, and mechanical relaxation after bonding.

Another critical factor is alignment feedback quality. Active alignment systems can optimize optical power during assembly, but the quality of the optimization depends on signal stability, scan strategy, and control latency. Passive alignment can lower cycle time and cost, but only when datum quality, part tolerances, and fixture control are tight enough to support it. Project leaders should be cautious of simplified active-versus-passive comparisons. The better question is which method gives enough process capability at the desired scale and cost.

Environmental sensitivity also deserves more attention than it often receives. Vibration, airflow, temperature variation, and contamination can all widen effective alignment error. This is particularly true for high-density assemblies and small mode-field devices, where tiny disturbances become meaningful optical losses. A process that works on an engineering bench may not survive a production floor without robust isolation and control.

Finally, bonding and curing behavior frequently determine whether good alignment remains good after fixation. Many yield losses are not caused by failure to find the correct alignment point, but by failure to keep it there through dispense, cure, and handling. Teams that focus only on stage precision often underestimate the importance of adhesive rheology, cure kinetics, and fixturing stiffness.

How to judge if a supplier’s alignment capability is commercially credible

For procurement and project management teams, one of the most common problems is interpreting supplier claims. “Nanometer resolution” and “sub-micron precision” sound impressive, but these terms are not the same as production-ready alignment capability. Resolution describes the smallest command increment a system can make. It does not prove accuracy under load, repeatability over time, or performance after bonding.

A commercially credible supplier should be able to provide data across at least five dimensions: process capability, not just machine specification; multi-axis alignment performance; pre- and post-bond shift data; environmental stability; and yield correlation. The strongest vendors will also separate best-case laboratory performance from statistically valid production performance, because those numbers are often different.

Ask suppliers for evidence in terms that matter to programs: Cpk or equivalent process capability metrics, insertion-loss distribution across lots, post-cure movement ranges, and throughput at target accuracy. If a supplier can only show a few successful sample units, that is not enough for a serious production decision. Project leaders need distribution data, not anecdotes.

It is also wise to ask how the system behaves near the practical throughput limit. Some alignment platforms deliver excellent accuracy at slow cycle times but lose consistency when tuned for production speed. If your business case depends on scale, then the relevant metric is not peak alignment precision. It is yield at planned takt time.

Active alignment, passive alignment, and hybrid strategies: where each fits

There is no universal best method for alignment accuracy for photonics. Active alignment is often preferred when coupling sensitivity is severe, part variation is high, or optical performance must be optimized in real time. It can protect yield in demanding assemblies, but usually at the cost of longer cycle time, higher capital investment, and more complex control architecture.

Passive alignment is attractive when component tolerances, fiducial quality, and mechanical datums are controlled tightly enough to support fast placement without iterative optimization. It can reduce cost and increase throughput, especially in mature, higher-volume programs. However, passive alignment becomes risky when upstream variation exceeds the assumed tolerance budget. In such cases, what looks efficient on paper can become a yield drain in production.

Hybrid strategies are often the most realistic option for project managers. For example, a process may use passive coarse placement followed by limited active trim, or active setup on critical channels combined with passive replication for secondary positions. This approach can preserve much of the throughput advantage while maintaining a safer process window.

The right decision depends on business context as much as optical design. Low-volume, high-value modules may justify slower active alignment if scrap cost is high. Platform products targeting repeatable scale may benefit more from a passive or hybrid architecture that reduces dependency on operator intervention and long search cycles.

How alignment tolerance connects to cost, schedule, and project risk

Many programs underestimate the total impact of alignment tolerance decisions because they view them as engineering details rather than business variables. In reality, tolerance choices influence capital expenditure, floor space, cycle time, fixture design, metrology burden, training needs, and qualification duration. Tightening tolerance can improve optical performance, but it can also increase process fragility and extend ramp time.

This is why project leaders should ask a simple but powerful question: What yield gain do we buy for each step of tighter alignment control? If the answer is meaningful and measurable, the investment may be justified. If the gain is marginal while equipment and process complexity rise sharply, then the tighter specification may not be commercially sensible.

Another key issue is hidden schedule risk. Alignment processes that appear workable in pilot builds can become bottlenecks during scale-up if the acceptable window is too narrow. Debugging these problems often takes longer than expected because multiple variables interact: component tolerance drift, curing effects, metrology mismatch, and environmental instability. The result can be late-stage delays that are difficult to recover.

For this reason, teams should include alignment capability in early design-for-manufacturing reviews, not only in final process validation. The earlier tolerance limits are translated into realistic production windows, the easier it is to prevent expensive redesigns and vendor changes later.

A practical framework for setting tolerance targets that protect yield

For engineering project leaders, the most effective approach is to define alignment requirements through a staged framework rather than by copying a generic industry benchmark. Start with the optical performance threshold: what insertion loss, return loss, beam quality, or channel balance is actually required by the product? Then map how each axis of misalignment changes that performance.

Next, build a tolerance budget that includes not only placement error but also part-to-part variation, fixture error, machine repeatability, thermal movement, and post-bond shift. This step is where many teams discover that the nominal alignment target is only one part of the total error stack. A process that seems adequate in isolation may be insufficient once all contributors are added.

After that, validate the process window statistically rather than visually. Use enough samples to understand distribution, not just average behavior. Include worst-case scenarios such as long production runs, operator changes, and environmental drift. If possible, test near the boundaries of the intended throughput range, since that is where hidden instability often appears.

Finally, link the tolerance target to a business trigger. For example, define the point at which extra alignment investment becomes justified because scrap, field risk, or rework cost exceeds a known threshold. This helps management make faster decisions and reduces debate between design, manufacturing, and sourcing teams.

What a strong alignment strategy looks like in high-stakes photonics programs

In successful photonics programs, alignment is treated as a controlled production capability, not a heroic setup step. The best teams align technical requirements, metrology strategy, bonding process, environmental controls, and supplier qualification around the same yield objective. They do not optimize one element in isolation and hope the rest will follow.

They also insist on traceable evidence. Instead of asking whether a platform can achieve high alignment accuracy for photonics in theory, they ask whether it can sustain target performance under production conditions with measurable stability. That mindset improves procurement quality and shortens problem resolution later.

Most importantly, strong programs define tolerance limits in relation to yield and risk. They know which errors are harmless, which are manageable, and which create a disproportionate commercial penalty. That clarity allows them to invest where precision creates value and avoid overspending where it does not.

Conclusion: precision only matters when it protects the process window

For project managers and engineering leaders, the central lesson is straightforward: alignment accuracy for photonics should be evaluated by its effect on yield, repeatability, and risk—not by impressive standalone numbers. The tolerance limits that matter most are the ones that push a process from safe margin into unstable production behavior.

If you are selecting equipment, qualifying suppliers, or planning a new photonics assembly line, focus on the practical evidence: coupling sensitivity by axis, repeatability across lots, post-bond stability, throughput at target accuracy, and statistical yield correlation. Those are the factors that determine whether a precision claim becomes a business advantage or a project liability.

In photonics, better alignment is not always the same as better manufacturing. The winning strategy is to specify enough precision to protect performance and scale with confidence—while preserving a robust, economically viable process window.
