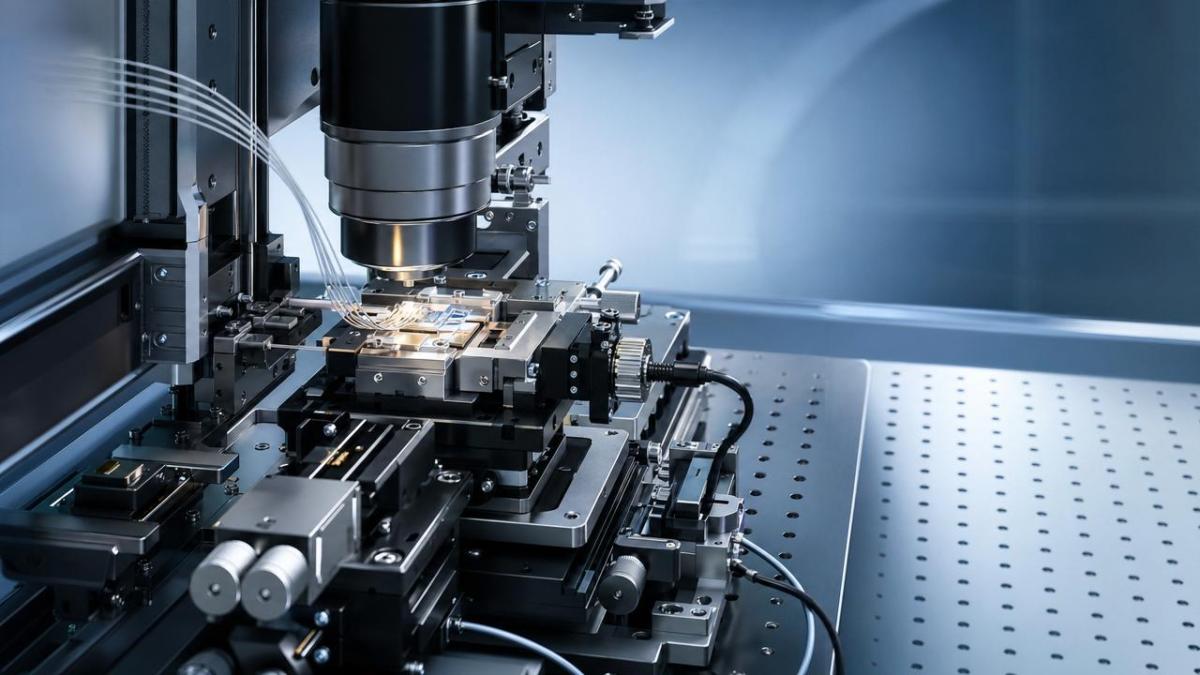

Alignment Accuracy for Photonics: How to Compare Systems

For procurement teams evaluating precision platforms, alignment accuracy for photonics is not just a technical metric—it is a decisive factor in yield, repeatability, and long-term system value. This article explains how to compare alignment systems with confidence, using practical benchmarks that connect motion performance, sensing capability, and integration risk to real purchasing decisions.

In photonics production and R&D, small alignment errors can create outsized losses. A lateral shift of only a few micrometers may reduce coupling efficiency, increase test failures, or trigger rework across multiple stations. For buyers responsible for capital equipment decisions, the challenge is not only to understand alignment accuracy for photonics, but also to compare vendor claims using a common evaluation framework.

That framework should connect three layers: motion system behavior, sensor and feedback performance, and deployment conditions on the factory floor or in a clean technical lab. Organizations such as G-UPE, which benchmark ultra-precision systems across metrology, nano-positioning, fluid control, and purity-sensitive processes, highlight a practical truth: alignment quality is rarely determined by one specification alone.

What Alignment Accuracy for Photonics Really Means in Procurement Terms

When engineers discuss alignment accuracy for photonics, they may focus on nanometers, arc-seconds, or closed-loop resolution. Procurement teams need a broader interpretation. In commercial terms, alignment performance affects 4 core outcomes: throughput, yield stability, qualification time, and total cost of ownership over 3–7 years.

A platform can advertise 50 nm resolution and still underperform in production if it suffers from drift, poor thermal control, or slow settling time. For that reason, comparison should start with application context: fiber array coupling, silicon photonics packaging, laser diode attachment, wafer-level optical test, or micro-optic assembly all impose different thresholds.

Accuracy, Repeatability, and Stability Are Not the Same

Many purchasing mistakes happen because these three terms are merged into one. Accuracy describes how close the actual position is to the commanded target. Repeatability shows how consistently the system returns to the same point over repeated cycles, often 30, 50, or 100 moves. Stability measures drift over time, for example over 8 hours or 24 hours under fixed environmental conditions.

For photonics assembly, repeatability may matter more than headline accuracy in some workflows. If a process uses active alignment with power feedback, a system with ±0.2 µm repeatability and predictable settling can outperform a theoretically finer system that drifts after thermal loading. Buyers should therefore request all 3 values, not only the smallest number on the brochure.

Questions procurement should ask before comparing quotes

• At what travel range is the stated accuracy measured: 100 µm, 10 mm, or full stroke?
• Is performance specified in open-loop or closed-loop mode?
• What is the settling time to within ±0.1 µm or ±0.5 µm?
• How much drift occurs over 1 hour, 8 hours, and after thermal warm-up?
• Were measurements taken on an isolated granite base or in realistic equipment conditions?

The table below converts technical alignment data into purchasing language that is easier to compare across suppliers and application teams.

The key conclusion is that alignment accuracy for photonics should be judged as a system behavior over time, not as a single-point lab result. Procurement teams that compare repeatability, settling, and drift together can better predict output quality and supportable throughput.

How to Compare Systems: Motion, Sensing, and Control Architecture

A robust comparison method looks at 3 technical blocks: the stage and actuator, the metrology and sensors, and the control software. In photonics, strong performance usually depends on how well these blocks are integrated, not simply on whether a platform uses piezo, voice-coil, linear motor, or hybrid mechanics.

1. Motion platform evaluation

Start with travel range versus required process window. A packaging cell that needs only 200 µm fine alignment may benefit from a piezo-driven flexure stage. A workstation handling die transfer, optical inspection, and final coupling may require 25 mm to 100 mm travel with a coarse-fine arrangement. Buyers should compare payload, dynamic stiffness, and cross-axis error at the same time.

For example, increasing payload from 0.5 kg to 5 kg often changes acceleration, settling, and vibration sensitivity significantly. If a supplier provides excellent accuracy but only at low payload, the system may need redesign once grippers, cameras, epoxy dispensers, or thermal heads are added.

2. Sensor stack and feedback quality

Alignment accuracy for photonics depends heavily on how position is measured and corrected. Encoders, interferometers, vision systems, optical power meters, and force sensors each solve a different part of the alignment problem. Resolution below 10 nm may sound attractive, but if sensor bandwidth, calibration discipline, or optical signal quality is weak, the effective process accuracy will be lower.

Ask whether the system supports passive alignment, active alignment, or both. Active alignment using live optical feedback can improve final coupling results, but it may add 10%–30% cycle time if the software search routine is not optimized. This tradeoff should be quantified early during vendor evaluation.

3. Control loop and software environment

The controller determines how quickly and stably the platform reacts to commands and disturbances. In practical procurement terms, this affects installation risk. A system that requires extensive custom coding, third-party synchronization, or frequent manual tuning can extend commissioning from 2 weeks to 8 weeks or more.

Look for evidence of deterministic motion control, data logging, recipe management, and integration readiness with PLC, MES, or laboratory automation environments. In high-value sectors such as semiconductor photonics, aerospace optics, and biomedical optical devices, traceability is increasingly as important as raw alignment performance.

The comparison table below helps buyers score system architecture in a structured way before moving to commercial negotiations.

A platform with balanced mechanics, verified metrology, and stable controls is usually a better long-term purchase than one exceptional component paired with weak system integration. This is where multidisciplinary benchmarking, such as the approach used by G-UPE across metrology and nano-positioning, becomes especially useful for buyers.

Environmental and Process Factors That Change Real Alignment Results

Two systems can carry similar data sheets and deliver very different real-world results. The reason is usually environmental coupling. Alignment accuracy for photonics is sensitive to temperature drift, floor vibration, cable forces, adhesive curing behavior, and even airflow around optical components. A procurement review that ignores these variables often underestimates operating risk.

Thermal effects and drift management

A temperature shift of 1°C can be enough to move critical assemblies outside a sub-micron target window, depending on materials and stage geometry. Buyers should ask whether the vendor measured drift after warm-up, under active illumination, and with process tools energized. In many facilities, thermal stabilization takes 30–90 minutes before best performance is reached.

Vibration and floor conditions

High-resolution photonics alignment can be degraded by building vibration from pumps, HVAC systems, nearby conveyors, or foot traffic. A stage that performs well on an isolated demo bench may require active isolation or heavier base design in production. Buyers should request floor condition assumptions and acceptable vibration bands whenever comparing systems above the low-micron class.

Process-induced movement after alignment

Final alignment is only valuable if the component stays aligned after bonding, curing, or transfer. UV adhesive shrinkage, solder reflow, clamp release, and cable routing can shift optical positions after the alignment step is complete. In many projects, post-process movement of 0.5 µm to 3 µm is more damaging than stage positioning error itself.

A practical 5-point risk review

1. Confirm ambient temperature range and hourly fluctuation.
2. Review vibration exposure at installation site, not only in vendor showroom conditions.
3. Test accuracy with real payload, cabling, and optics fixtures installed.
4. Measure pre-bond and post-bond alignment shift across at least 20 sample cycles.
5. Require documented acceptance criteria for drift, settling time, and yield impact.

This type of risk review is especially relevant for procurement teams managing cross-border equipment sourcing, where line conditions, utility quality, and technical support response time may differ from the vendor’s home market.
