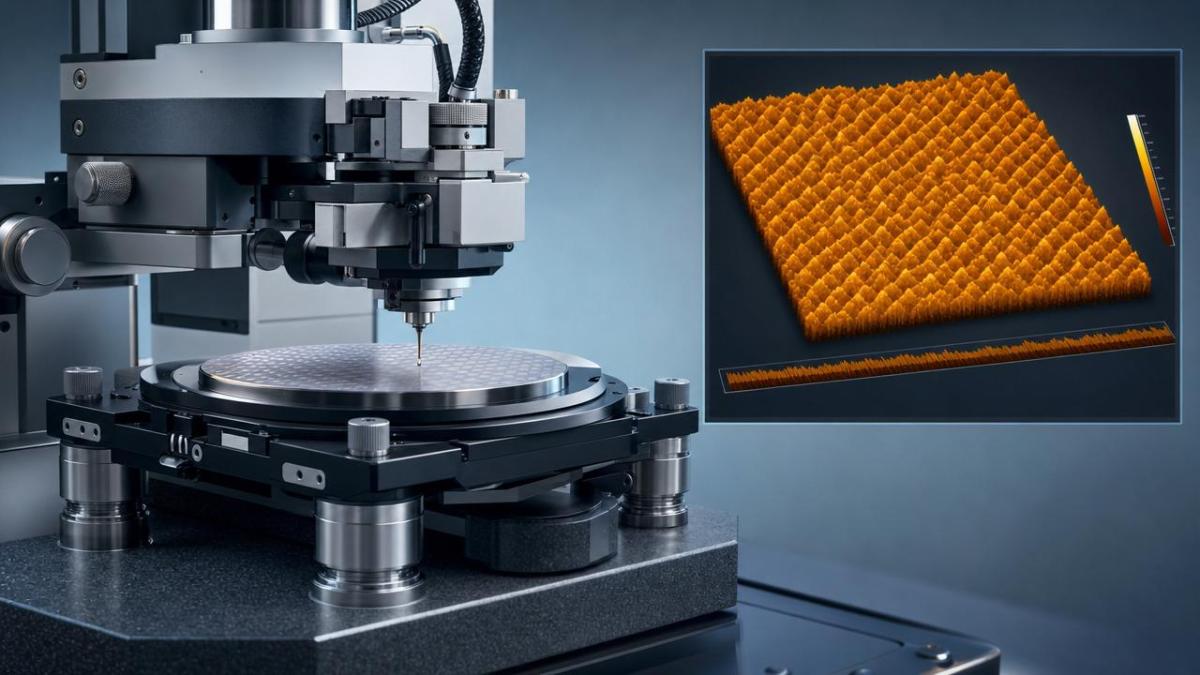

AFM Scan Rate and Noise Level: Finding the Right Balance

In atomic force microscopy, optimizing afm scan rate and noise level is critical for capturing reliable surface data without sacrificing throughput. For operators and lab users, the right balance directly affects image clarity, measurement repeatability, and system efficiency. This guide explores how scan speed influences noise behavior and how to adjust parameters for more stable, high-confidence AFM results.

Why does afm scan rate and noise level become a practical problem in daily operation?

For many users, AFM performance is not limited by the instrument’s nominal resolution. It is limited by setup quality, environmental stability, probe condition, and parameter control. Among these variables, afm scan rate and noise level are closely linked, and small changes in one often reshape the behavior of the other.

A faster scan can shorten cycle time and improve lab throughput. However, it can also increase feedback error, excite mechanical resonances, and amplify line-to-line instability. A slower scan often reduces dynamic stress on the system, but it does not automatically guarantee low noise if drift, vibration, contamination, or incorrect gain settings remain unresolved.

This matters across the broader ultra-precision engineering landscape. Semiconductor inspection, thin-film research, implant surface validation, micro-mechanics, and functional coatings all require dependable nanoscale surface information. In these settings, an image that looks visually acceptable but contains hidden noise can mislead roughness values, feature height measurements, and pass-fail judgments.

• Operators often need faster scans to support production schedules, incoming material checks, or multiple sample comparisons within limited tool time.
• Quality teams need lower noise to trust dimensional data, defect interpretation, and cross-lab reproducibility.
• Procurement and technical managers need evidence that the selected AFM platform, probe strategy, and motion subsystem can maintain stable results under real operating constraints.

This is where G-UPE adds value. Its benchmarking perspective connects AFM operation not only to microscopy theory, but also to motion control precision, environmental robustness, metrology discipline, and system-level verification aligned with ISO, SEMI, and IEEE-oriented engineering expectations.

How scan speed changes signal quality, tip behavior, and measurement confidence

The phrase afm scan rate and noise level should not be treated as a simple speed-versus-quality tradeoff. In practice, scan rate affects the bandwidth demands placed on the feedback loop. When the tip moves faster across steep features, the controller has less time to maintain stable interaction, and error signals rise.

The result may appear in several ways: overshoot at edges, compressed topography, streaking, unstable phase contrast, or periodic banding. These effects can be mistaken for real surface structures, especially by less experienced users or when scanning unfamiliar materials.

Common noise contributors that worsen at unsuitable scan rates

• Mechanical vibration from the building, pump systems, nearby tools, or unstable support tables.
• Controller lag caused by insufficient feedback tuning relative to scan size and feature density.
• Tip wear or contamination, which increases interaction instability and broadens apparent features.
• Piezo nonlinearity, creep, and thermal drift, especially during long scans or unstable room conditions.
• Sample compliance or poor mounting, which can create motion artifacts under faster lateral movement.

Operators should also separate random noise from systematic artifacts. Random noise may raise background roughness values. Systematic artifacts can shift dimensional interpretation in a repeatable but misleading way. Both affect decision quality, but the corrective actions are different.

The table below helps users judge how afm scan rate and noise level typically interact under common operating conditions.

The main lesson is that there is no universal best speed. The right setting depends on sample mechanics, required data type, scanner dynamics, and the acceptable level of uncertainty for the final task.

Which operating scenarios require a different balance?

Operators in different industries do not use AFM for the same purpose. A research team mapping polymer morphology has a different risk profile from a production engineer screening thin-film defects. Understanding the application prevents over-optimization in the wrong direction.

Typical use cases across precision-focused sectors

1. Thin-film and coating evaluation: users need low-noise height data to compare deposition uniformity, grain structure, and localized defects.
2. Semiconductor and electronic materials: scan speed must support throughput, but not at the cost of false defect classification or inaccurate step-height assessment.
3. Biomedical and implant surfaces: delicate or compliant materials often require conservative interaction settings where noise control matters as much as scan rate.
4. Micro-mechanical and nano-positioning components: dimensional interpretation demands repeatability, so users often validate higher-speed screening with slower reference scans.

G-UPE’s multidisciplinary scope is useful here because AFM does not operate in isolation. Surface metrology results frequently feed decisions in coating selection, fluid-control part cleanliness, high-purity process validation, and nano-positioning subsystem qualification.

The following scenario table shows how afm scan rate and noise level priorities shift by task.

For operators, this approach is practical: define the decision first, then set the speed. If the goal is pass-fail screening, a fast scan may be acceptable. If the goal is traceable roughness or dimensional data, lower noise should lead the setup strategy.

How to choose settings without wasting time or damaging confidence

A disciplined setup routine reduces trial-and-error. Instead of changing many parameters at once, users should work through a structured sequence. This is especially important in shared labs, regulated manufacturing support, or projects with strict reporting deadlines.

A practical setup checklist for balancing afm scan rate and noise level

• Confirm sample fixation and surface cleanliness before tuning speed. A loose sample can mimic control instability.
• Start with a moderate scan size and rate, then review trace and retrace agreement rather than relying only on image appearance.
• Adjust feedback gains gradually. If gains are too low, edges blur. If too high, oscillation and noise increase.
• Inspect the probe condition when noise rises suddenly. Tip contamination is a frequent root cause of unstable images.
• Use a known reference or calibration sample to distinguish system noise from genuine sample topography.
• Document the final parameter window for repeat tasks so future users can reproduce results faster and with less interpretation error.

For procurement or lab management, parameter stability is not only a user skill issue. It reflects instrument architecture. Motion-stage quality, vibration isolation, controller bandwidth, sensor integration, and software transparency all affect how much usable speed can be achieved before noise compromises the data.

This is one reason why G-UPE’s benchmarking framework is relevant. It helps technical buyers compare systems beyond brochure claims by relating scan behavior to broader ultra-precision subsystems such as nano-positioning stages, metrology traceability, and environmental support requirements.

What should buyers and technical teams evaluate before selecting an AFM workflow?

When organizations invest in AFM capability or upgrade an existing process, they should evaluate more than peak resolution. The real question is whether the system can deliver acceptable afm scan rate and noise level performance for the intended workload, operator skill range, and reporting obligations.

Key evaluation points for selection and process planning

• Measurement objective: roughness, step height, defect screening, phase contrast, force interaction, or comparative mapping.
• Sample type: hard, soft, coated, particulate, porous, conductive, insulating, or biologically derived.
• Required throughput: occasional research scans differ from routine production-side inspection.
• Operator experience: a system that is powerful but difficult to stabilize may not fit a multi-user environment.
• Facility conditions: vibration, temperature variation, acoustic noise, and nearby equipment all shape usable scan speed.
• Data integrity needs: internal R&D may accept exploratory scans, while supplier qualification may require stronger consistency and documentation.

A common mistake is to treat higher nominal speed as an automatic advantage. If the lab environment cannot support it, or if the application requires validated nanoscale dimensions, the effective usable speed may be much lower. Selection should focus on stable operating range, not only advertised capability.

Common misconceptions and FAQ about afm scan rate and noise level

Does a slower scan always reduce noise?

No. A slower scan reduces some dynamic errors, but it can expose drift, thermal instability, or time-dependent sample changes. If the system or sample is unstable, scanning slower may simply replace high-frequency noise with low-frequency distortion.

How can I tell whether the image problem comes from scan rate or the tip?

Compare trace and retrace, repeat the scan at a lower rate, and inspect whether the artifact follows the same pattern. If image quality remains poor across slower settings, probe wear or contamination becomes more likely. Reference sample checks are especially useful here.

What is the best scan strategy for mixed workloads?

Use a two-stage method. First, perform a moderate or faster screening scan to locate regions of interest. Second, rescan critical regions at lower speed with optimized gains. This protects throughput while preserving confidence for final measurements.

Should procurement teams ask about standards and verification?

Yes. Even when there is no single universal AFM certification path for every use case, buyers should ask how performance is verified, how calibration is maintained, and how the system aligns with broader metrology and quality practices. References to ISO, SEMI, or IEEE-related engineering discipline can support structured evaluation when relevant to the application.

Why work with G-UPE when optimizing AFM decisions?

G-UPE supports organizations that operate at the frontier of accuracy, where nanoscale uncertainty can affect procurement, process qualification, and customer confidence. Its value lies in connecting AFM concerns to adjacent ultra-precision realities: coating behavior, metrology workflows, high-purity process environments, pneumatic stability, and nano-positioning performance.

For users and operators, that means decisions can be based on system context rather than isolated specifications. For technical managers, it means clearer benchmarking of real-world operating windows. For procurement teams, it means better alignment between measurement risk, application need, and long-term implementation cost.

Contact us for application-specific support

If your team is evaluating afm scan rate and noise level for production inspection, advanced materials analysis, or multi-user lab deployment, G-UPE can support practical discussions on parameter confirmation, workflow selection, delivery expectations, customization scope, applicable standards, sample handling strategy, and quotation planning.

You can reach out with your sample type, target measurement, throughput requirement, environmental constraints, and current pain points. This makes it easier to assess whether you need a faster screening workflow, a lower-noise validation method, upgraded nano-positioning support, or a more robust metrology framework before committing to the next step.
