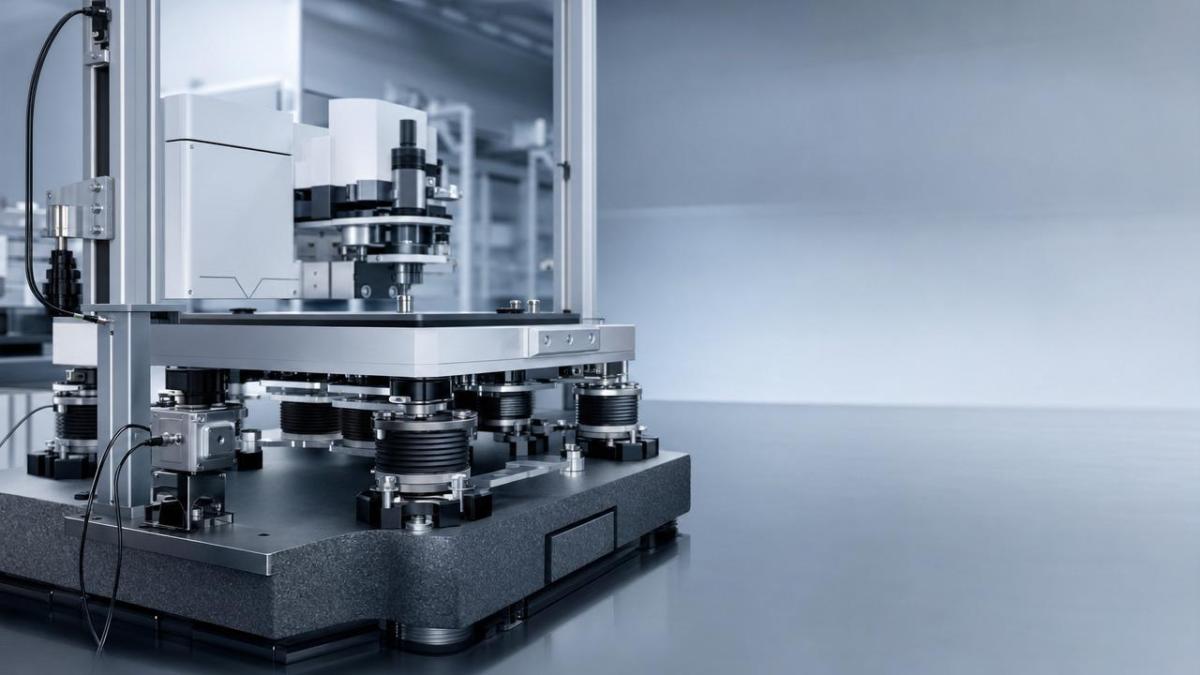

Vibration Isolation Efficiency (Hz) Before System Upgrades

Before committing capital to upgrades, business evaluators need a clear view of vibration isolation efficiency (Hz) and its direct impact on precision, yield, and compliance. This article outlines how baseline frequency performance reveals hidden system limitations, supports benchmarking against operational requirements, and helps decision-makers prioritize upgrade paths with lower risk and stronger technical justification.

In ultra-precision environments, isolation performance is rarely a background specification. It influences metrology repeatability, motion stability, coating uniformity, gas delivery consistency, and the ability of high-value equipment to maintain tolerance under real operating conditions.

For procurement and evaluation teams, the key question is not whether upgrades are possible, but whether the current baseline already falls below process requirements. That is why vibration isolation efficiency (Hz) should be reviewed before budgets are assigned, tenders are issued, or retrofit timelines are approved.

Why Baseline Vibration Isolation Efficiency Matters Before Any Upgrade

A baseline assessment of vibration isolation efficiency (Hz) helps determine how much disturbance reaches the machine structure across relevant frequency bands. In practical B2B evaluation, this baseline often decides whether an upgrade should focus on the foundation, the support frame, the actuator package, or the process head.

In sectors such as semiconductor handling, CMM inspection, thin-film deposition, nano-positioning, and high-purity gas integration, even small low-frequency disturbances in the 1 Hz to 10 Hz range can reduce repeatability. Mid-band disturbances between 10 Hz and 40 Hz may affect stage motion, valve switching stability, or probe contact behavior.

What evaluators should measure first

Before considering replacement or retrofit, evaluation teams should establish at least 4 baseline inputs: incoming floor vibration, transmissibility at the support system, dominant resonance points, and process sensitivity thresholds. Without those inputs, upgrade proposals often overinvest in hardware while underdiagnosing the root limitation.

• Floor vibration profile across 1 Hz to 100 Hz
• Isolation system response under static and dynamic load
• Payload mass distribution and center-of-gravity shift
• Process-specific tolerance window, such as sub-micron or nanometer-level positioning

Why frequency-based review is more useful than generic stability claims

Business evaluators frequently receive supplier claims such as “high stability” or “improved damping.” These descriptions have limited procurement value unless they are linked to frequency performance. A system that isolates well above 20 Hz may still perform poorly at 3 Hz to 6 Hz, where many precision processes are most vulnerable.

This is especially relevant when comparing passive mounts, pneumatic isolators, and active control systems. Their efficiency curves differ significantly. Two systems with similar list prices may produce very different results once installed beneath a metrology platform or laser-controlled stage.

The table below shows how business evaluators can frame baseline vibration isolation efficiency (Hz) against process-critical operational factors across G-UPE-relevant industrial pillars.

The key takeaway is that the same vibration source can create different commercial risks depending on the process. A 5 Hz disturbance may be tolerable for general automation, yet unacceptable for a nano-stage, a high-resolution optical metrology station, or a critical deposition chamber.

How to Benchmark Current Performance Against Upgrade Requirements

Once baseline measurements are available, the next step is benchmarking. This means comparing present isolation behavior with the operational envelope required by the equipment, the product tolerance, and the applicable internal or external standards used in qualification.

For business evaluators, benchmarking should not stop at a single average figure. A complete review typically covers 3 layers: frequency response, payload behavior, and process acceptance criteria. This makes vibration isolation efficiency (Hz) actionable rather than merely descriptive.

Three benchmarking questions that reduce upgrade risk

1. Does the current system isolate effectively in the exact frequency band where the process is most sensitive?
2. Does performance change when the load varies by 10% to 30% due to fixture, gas cabinet, or stage reconfiguration?
3. Can the system maintain isolation efficiency after installation constraints, utility connections, and maintenance access are considered?

Common benchmark thresholds in precision environments

Although exact criteria vary by application, many evaluation teams use threshold thinking. For example, if a process begins to show measurable quality degradation below 8 Hz, then the support solution must be judged primarily on low-frequency transmissibility rather than on general damping performance above 20 Hz.

Likewise, if a metrology platform operates within sub-micron repeatability targets, any baseline resonance peak that aligns with building excitation or nearby rotating equipment becomes a procurement concern. In these cases, the cost of inaction may exceed the cost of a controlled upgrade within 1 to 2 maintenance cycles.

The following comparison framework helps procurement and technical reviewers align current vibration isolation efficiency (Hz) with realistic upgrade paths.

This table highlights an important principle: benchmark results should connect directly to budget logic. Procurement decisions become stronger when technical gaps are expressed as downtime exposure, requalification burden, yield risk, or regulatory vulnerability.

Selecting the Right Upgrade Path for Different Precision Systems

Not every system requires a full replacement. In many facilities, improved vibration isolation efficiency (Hz) can be achieved through targeted interventions. The most cost-effective path depends on whether the dominant problem comes from floor input, internal resonance, utility coupling, or payload changes introduced after the original installation.

Typical upgrade routes

• Retuning or replacing isolators to match revised load conditions
• Adding active control for low-frequency disturbance below 5 Hz
• Increasing frame stiffness to shift resonance away from process-critical bands
• Decoupling utility lines, gas feeds, or pneumatic hoses that transmit vibration
• Reconfiguring support geometry for better mass distribution

Where business evaluators often misjudge cost

A frequent mistake is comparing only purchase price between passive and active solutions. The broader cost model should cover 4 to 6 factors: installation downtime, qualification time, expected process recovery, service interval, spare parts complexity, and the cost of maintaining production under marginal stability.

For example, a lower-cost passive system may appear attractive in year 1, but if the process requires repeated adjustment every 3 months or fails to support a future tool load increase of 15%, the total lifecycle burden becomes less favorable. Decision-makers should therefore compare 12-month and 36-month operating implications, not just the initial invoice.

Application-specific considerations across G-UPE sectors

In thin-film and ALD-related equipment, baseline vibration isolation efficiency (Hz) may influence deposition stability and chamber alignment. In CMM systems, the dominant issue is often metrology repeatability. In pneumatic and fluid control assemblies, the key concern may be transmitted disturbance that affects valve actuation or pressure regulation.

For nano-positioning systems, low-frequency performance is especially critical because sub-micron motion control can be disturbed by conditions that seem minor at the facility level. That is why cross-functional review involving process engineering, facilities, maintenance, and procurement usually delivers better upgrade decisions than isolated departmental selection.

Implementation, Validation, and Procurement Best Practices

After selecting a solution, implementation should follow a structured path. In most industrial settings, 5 stages are sufficient: baseline measurement, root-cause review, option comparison, installation planning, and post-upgrade validation. Skipping any one of these stages increases the risk of paying for performance that cannot be verified in operation.

A practical 5-step workflow

1. Measure current vibration spectrum and identify dominant peaks.
2. Map process sensitivity to the most relevant frequency bands.
3. Compare 2 to 3 upgrade concepts against load, space, and compliance needs.
4. Plan installation within a 1-day, 3-day, or 1-week shutdown window.
5. Validate post-installation performance with the same measurement method used at baseline.

Documentation that supports commercial approval

For commercial and governance review, the most useful documents are concise and technical at the same time. A strong procurement pack generally includes the current vibration map, required target range, upgrade scope, acceptance criteria, installation risks, and expected impact on uptime or quality control. This reduces ambiguity during supplier comparison.

Where international buyers operate under ISO, SEMI, or IEEE-aligned internal procedures, structured records also help with later audits, cross-site standardization, and benchmark replication. This is particularly valuable for multi-site manufacturers seeking consistent performance across more than 2 plants or multiple lines.

Common mistakes to avoid

• Approving upgrades without a frequency-resolved baseline
• Ignoring payload changes introduced by future tooling plans
• Assessing only the machine and not the surrounding infrastructure
• Using supplier claims without on-site validation criteria
• Assuming that all precision systems need the same isolation architecture

When these mistakes are avoided, vibration isolation efficiency (Hz) becomes a measurable business parameter rather than a vague engineering preference. That shift improves capital discipline and strengthens technical accountability across procurement, operations, and engineering teams.

A clear view of baseline vibration isolation efficiency (Hz) allows business evaluators to distinguish cosmetic upgrades from necessary performance interventions. It supports better benchmarking, sharper supplier comparison, and more defensible capital allocation in precision manufacturing and inspection environments.

For organizations operating at the frontier of accuracy, the right upgrade decision depends on verified frequency behavior, process sensitivity, infrastructure constraints, and lifecycle impact. G-UPE supports this evaluation logic by connecting technical benchmarking with commercial intelligence across metrology, deposition, fluid control, high-purity systems, and nano-positioning applications.

If you are reviewing an upgrade, planning a tender, or comparing precision support architectures across sites, now is the right time to obtain a more structured assessment. Contact us to discuss your application, request a tailored benchmarking framework, or learn more about precision-focused solutions.
