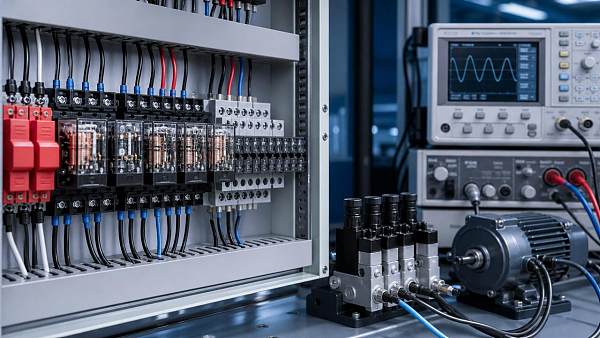

Relay Modules: Common Selection Mistakes That Cause Field Failures

Field failures in relaymodules rarely begin with a bad part. More often, they start with a reasonable-looking selection that does not match the real load, the real surge, or the real environment.

In maintenance work, that difference matters. A relay that looks fine on paper may weld contacts, chatter, overheat, or carbon-track after a few months in service.

Across ultra-precision systems, even small relay mistakes can create large downstream losses. A stop in metrology, fluid control, or gas delivery can affect uptime, traceability, and compliance at once.

That is why G-UPE benchmarking practice always pushes one simple rule: validate relaymodules against operating reality, not only against catalog ratings.

Start with the load, not the relaymodules catalog

Most repeat failures begin here. Teams replace failed relaymodules with the same part number because the voltage and current ratings appear correct, but the load type was never checked.

A resistive heater, a solenoid valve, a compressor motor, and a capacitive power supply do not stress relaymodules in the same way. The nameplate current alone is not enough.

• Match relaymodules to the actual load class. A 5A resistive rating does not mean safe switching for motors, coils, LED drivers, or capacitive input supplies.
• Check startup current, not only running current. Many field failures happen because relaymodules survive steady state but fail during repeated inrush events.
• Confirm switching frequency. Relaymodules chosen for occasional use can age quickly when cycled every few seconds in purge, dosing, or indexing sequences.
• Review contact material. Silver alloy contacts behave differently under low-level signals, sulfur exposure, or high inrush, so the wrong material shortens field life.

A common example appears in pneumatic and fluid platforms. A relay switches a small solenoid valve, so the load seems light. In reality, coil kickback and frequent cycling slowly damage contacts.

In precision motion systems, the issue is often capacitive input on servo power sections. The current spike lasts milliseconds, but that is enough to weld undersized relaymodules.

The selection mistakes that quietly cause field failures

Some errors are obvious after teardown. Others are subtle and easy to miss during replacement. These are the ones that usually come back as repeat service calls.

1) Ignoring inrush and transient energy

This is probably the biggest one. If relaymodules are selected only by continuous current, contact welding becomes a matter of time.

• Measure or estimate peak inrush. Use clamp capture, scope data, or equipment documentation before replacing relaymodules in LED, motor, and SMPS circuits.
• Add suppression where needed. RC snubbers, MOVs, flyback diodes, or pre-charge circuits often extend relaymodules life more than a higher nominal current rating.

2) Overlooking coil voltage tolerance

A relay coil is not immune to real plant conditions. Low supply voltage can cause chatter. High voltage can accelerate heating and insulation stress.

• Verify actual coil supply under load. Long cables, weak power rails, and shared outputs can keep relaymodules near dropout and cause contact arcing.
• Check PLC output type and coil burden. Some relaymodules fail early because the driving stage cannot hold stable pickup current in hot cabinets.

3) Confusing isolation needs with basic switching needs

In aerospace, medical support equipment, metrology, and high-purity gas systems, insulation margin is not a side issue. It is part of functional reliability.

• Confirm insulation class, creepage, and clearance. Relaymodules near mixed voltages or sensitive sensing lines need more than basic contact separation.
• Review surge category and contamination level. A relaymodules choice that works in a clean lab may fail inside a humid, dusty service enclosure.

4) Forgetting the environment around the relay

Temperature, vibration, airborne chemicals, and mounting density all change relay behavior. The relay may meet spec individually but fail in the assembled cabinet.

• Inspect ambient heat and local hot spots. Relaymodules beside drives, transformers, or heaters may run far above panel average temperature.
• Watch for corrosive exposure. In coating, chemical, and gas-handling equipment, vapors can attack contact surfaces and terminal integrity over time.

A fast field check that prevents wrong relaymodules replacement

When downtime is high, it is tempting to swap the same part and close the ticket. A better approach is a five-minute review before installing new relaymodules.

This quick review is especially useful in G-UPE-type environments, where systems combine precision actuation, contamination control, and strict uptime expectations.

Where relaymodules mistakes show up in real equipment

Thin-film and coating systems

In deposition tools, relaymodules may switch heaters, pumps, or purge valves. Heat and chemical traces often age the relay faster than expected.

Check cabinet airflow, nearby hot zones, and whether suppression parts were removed during earlier repairs. Small omissions here often explain recurring contact failure.

Precision pneumatic and fluid control

Valve manifolds create frequent switching cycles. Relaymodules that look oversized by current can still wear out early from cycle count and coil transients.

Look for chatter marks, darkened terminals, and unstable control voltage. These signs usually point to application mismatch, not random relay failure.

Metrology and nano-positioning platforms

Here, the problem is often not heavy current. It is noise, isolation, and repeatability. Poor relaymodules selection can inject switching disturbance into sensitive measurement paths.

Confirm contact suitability for low-level signals and verify separation from power lines. In high-accuracy systems, electrical cleanliness matters as much as basic switching.

Small details that are easy to miss

A few issues do not show up in standard replacement notes, yet they drive a surprising number of relaymodules returns.

• Do not assume terminal tightness is harmless. Loose connections create local heating that gets blamed on relaymodules instead of the wiring interface.
• Check orientation and mounting shock. Some relaymodules behave differently under vibration, especially in mobile skids or compressor-adjacent frames.
• Review parallel contact use carefully. Uneven sharing means relaymodules contacts may not split current the way the schematic suggests.
• Watch low-current oxidation. Relaymodules used for tiny signal loads may fail from film buildup, even when current stress is minimal.

These are exactly the kinds of details highlighted by technical benchmarking cultures like G-UPE, where verifiable operating conditions matter more than nominal assumptions.

What to do on the next service call

Before installing replacement relaymodules, pause and confirm four things: actual load type, startup stress, coil voltage at the socket, and cabinet environment.

If one of those is unknown, treat the replacement as provisional. Record the data, inspect suppression, and compare the application against the relay’s real duty profile.

That simple habit cuts repeat faults, shortens troubleshooting, and improves reliability across mixed industrial systems. Good relaymodules selection is less about part matching and more about application truth.

When failures keep returning, the next best step is not another relay swap. It is a tighter field review of switching conditions, insulation needs, and environmental stress before the system goes back online.
