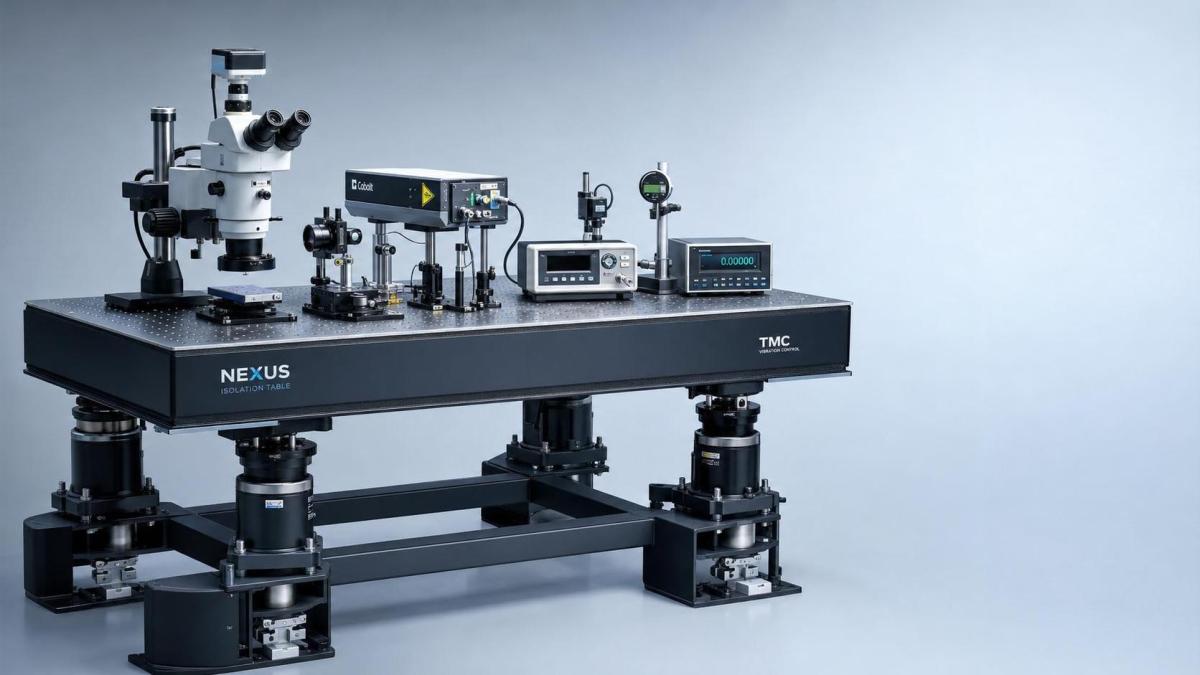

Vibration Isolation Table Load Rating: What Matters Most

For precision work, vibration isolation table load rating is never just a number on a datasheet. It shapes how reliably a table supports microscopes, metrology systems, laser setups, inspection tools, and nano-positioning platforms under real operating conditions.

When the rating is misunderstood, stability can drift, measurements can lose repeatability, and service life can shorten. In fields where G-UPE tracks ultra-precision benchmarks, that gap between nominal capacity and actual performance often decides whether a system stays accurate over time.

Why load rating deserves closer attention

A vibration isolation table must carry weight and control motion at the same time. Those two demands are connected. More load changes the isolator behavior, the natural frequency, and the table response to floor-borne disturbances.

That matters across semiconductor handling, optics assembly, CMM support, biomedical device inspection, and aerospace component verification. In each case, the table is part of the measurement chain, not a passive accessory.

The phrase vibration isolation table load rating usually refers to the supported mass range for stable isolation performance. It may include static capacity, recommended operating load, and limits for evenly distributed or concentrated loads.

Simple capacity figures can be misleading. A table may hold the weight safely, yet perform poorly if the payload distribution, center of gravity, or dynamic behavior falls outside the intended operating window.

What the rating actually covers

In practical terms, vibration isolation table load rating includes several layers of judgment. The first is structural strength. The tabletop, frame, and support points must tolerate the payload without deformation or long-term fatigue.

The second layer is isolation performance. Pneumatic, elastomeric, active, or hybrid isolation systems each behave differently under load. Their damping and transmissibility curves are load-dependent.

The third layer is operational stability. A setup may be technically within capacity, yet remain hard to level, slow to settle, or vulnerable to resonance when accessories move during use.

This is why a serious review of vibration isolation table load rating goes beyond one maximum number. It should describe how the table behaves when the full instrument stack is installed and used.

Where mistakes usually begin

One frequent mistake is counting only the instrument body. Real payload includes controllers mounted under the table, cable carriers, tooling, enclosures, gas lines, optical breadboards, and future accessories.

Another issue is center of gravity. Tall microscopes, articulated arms, and stacked metrology fixtures create overturning tendencies that a basic weight figure does not capture.

Floor conditions also matter. A table installed near pumps, compressors, foot traffic, or elevator shafts may need a different load margin than the same table in a controlled cleanroom bay.

More subtle problems appear when systems evolve. A table chosen for today’s load may become marginal after a camera upgrade, larger stage, or shielding addition. In ultra-precision settings, that drift often shows up before obvious failure.

Under-rating and over-rating are both problems

An under-rated table risks poor leveling, excessive deflection, and reduced isolation. Service adjustments become more frequent, and process variation can increase.

An over-rated table is not automatically better. Some isolation systems perform best within a designed load band. If the actual payload is too light, the table may sit outside its ideal compliance range.

That is why vibration isolation table load rating should be matched to the real working mass, not simply maximized.

How this affects different precision environments

The same rating question appears in different forms across industries. G-UPE’s benchmark-oriented view is useful here because the supporting table influences whether high-end equipment reaches its published capability.

• Optical laboratories need stable support for beam alignment, interferometry, and laser diagnostics, where small vibration changes can shift signal quality.
• Metrology environments rely on predictable support for CMM peripherals, surface profilers, and vision inspection tools.
• Micro-manipulation and nano-positioning setups are sensitive to payload asymmetry, especially when piezo stages move rapidly.
• Biomedical and implant-related inspection often combines compact instruments with delicate motion systems that require fast settling.
• Aerospace component verification can involve dense fixtures or heavy samples that challenge both load support and damping behavior.

Across these settings, vibration isolation table load rating becomes a shared decision point between process expectations and physical support constraints.

A practical way to evaluate the right rating

A useful evaluation starts with the full installed mass. Include the main instrument, fixtures, monitors, shelves, power units, gas manifolds, and any mounted tooling planned within the next upgrade cycle.

Then map where that weight sits. A concentrated rear load behaves differently from a centered load. Side bias matters too, especially for tables carrying moving stages or cantilevered optics.

After that, look at the operating environment. Building vibration spectra, cleanroom rules, nearby utilities, and access patterns all shape the required load margin and isolation approach.

Key checks before selection

• Confirm the recommended operating load range, not only the maximum capacity.
• Ask whether the published vibration isolation table load rating assumes uniform loading.
• Review allowable point loads and edge loading limits.
• Check leveling tolerance under final installed conditions.
• Consider dynamic effects from stages, pumps, or repeated manual interaction.
• Leave room for accessory growth without moving outside the stable performance window.

These checks sound basic, yet they often separate a quiet, repeatable workstation from one that constantly needs correction.

Reading supplier data with more discipline

Not all technical sheets describe rating data with the same rigor. Some provide broad ranges without clarifying test conditions. Others separate structural load, isolation load, and optimal tuning load more carefully.

For critical installations, it helps to compare data in the same framework. Look for references to resonance behavior, transmissibility, settling time, damping, and compliance with relevant ISO, SEMI, or IEEE-aligned practices where applicable.

This is consistent with the G-UPE approach to technical benchmarking. The goal is not more specifications. The goal is verifiable specifications that relate to actual use conditions.

Questions worth asking during review

What matters most in the end

The best interpretation of vibration isolation table load rating is performance under the real payload, in the real room, during the real process. Capacity alone is too narrow. Stability, balance, dynamic response, and future flexibility matter just as much.

A disciplined selection process usually starts with a detailed load map and a realistic view of process sensitivity. From there, compare tables by operating range, distribution limits, and measured isolation behavior, not headline numbers.

That approach gives vibration isolation table load rating its proper role: a practical decision metric that protects accuracy, equipment integrity, and long-term consistency. The next step is to document the full load case, review likely upgrades, and assess each table against the environment where it will actually work.
